Product Details
| Place of Origin | Guangdong, China | Brand Name | LY | |
| Model Number | TZ20002MGP | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

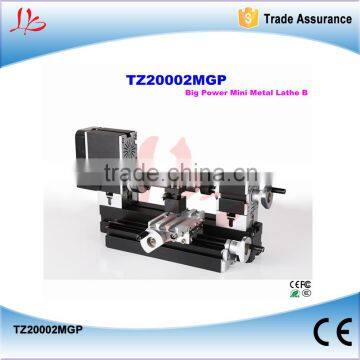

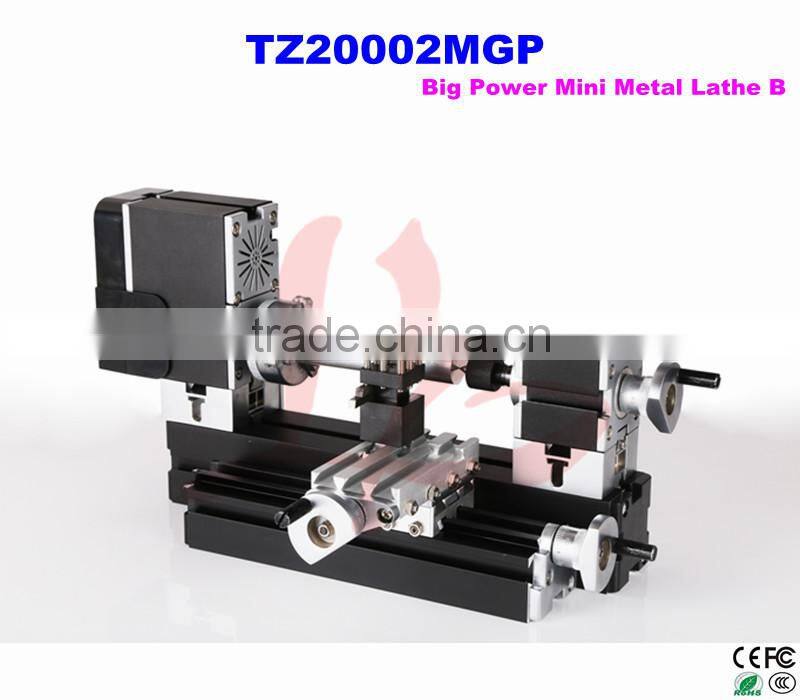

TZ20002MGP Big Power Mini Metal Lathe B
Features: 1.Motor case and headstock are jointed. Maximum motor power is 144W by using more powerful motor. Some parts are electroplated to make the machine more beautiful and practical. 2.Main parts: headstock, tail stock, long machine bed, big slider, small slider, motor blade, gear, connection piece, drive belt cover. All of the parts are made of metal except drive belt cover. 3.Center height- 50mm, distance between center-135mm, motor speed normally will drop to 2000rpm/min when it machines metal. 4. Lathe tool is made of high speed steel quality material, nonferrous metal and precious metal. By using central block, diameter can be expanded to 50mm. Technical parameters: 1.Motor speed :12,000rpm/min(optional choice 20,000rpm/min) 2.Input voltage/current/power:12VDC/5A/60W 3.Maximum working material diameter:135mm 4.Working material length:135mm 5. Working material: lignin plastic, soft metal( gold, silver, copper, aluminum etc.), acrylic, plastic etc. 6.With 0.02mm scale line ,the hand wheel increases the precision when processing. 7.Motor power :144W 8.Axis Z travel 145mm, Axis X travel 32mm  |

Packaging:
Packaging material: Carton/Wooden case with foam inside.
Shipping:
A. 3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc.)
B. 3-5 workdays shipping from UK Warehouse to European union countries.No need to pay for customs duties and VAT.
C. 25-30 workdays shipping from China to Russian customers. No need to pay for customs duties and VAT.
D. We can arrange shipment by sea. Minium CBM requirement : 1 CBM
1.We provide you the friendly English User manual or operating videos for free.
2.24 hours technical support by email or calling.
3.Warranty: 1 year free, 2-3 years cost price and free technical support always.
4.Free training to make sure you master the operating of our products.
5. OEM/ODM accept . But the MOQ of OEM/ODM is 100 sets.
USBearth business group is located in Shenzhen, China.
Our factory owns 2 brands , Ly and Bauer , and Shuttle,ZM,KIDI,HonTon … Factory agent .
We has 10 years experiences in manufacturing and foreigh trade
Our BGA rework stations , such Ly IR6000, Ly IR6500, Ly IR9000,Ly IR-PRO-SC, Ly IR8000, Ly HR560, Ly HR560C, Ly HR500, Ly SV550C, Bauer IR-PRO-SCC ,Bauer OMEGA XD …
CNC machines like cnc 3020/4030/6040/9060 …series products ,Mobile LCD separating stationslike 946D /947B /950V/948V/948B…are hot sale in the world, especially in these countries from North and South American,European and Asian.

1) This is the first time I use this kind of machine, is it easy to operate?
There is english manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
