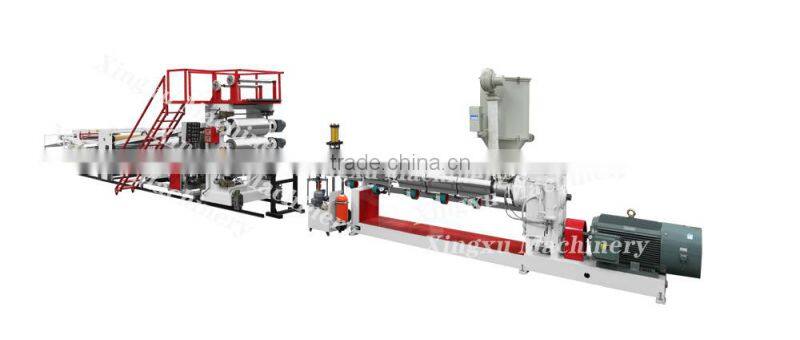

ABS Mono-layer Plastic Sheet Extrusion Machine -- YX-21A
- Shanghai/Ningbo
- T/T Credit Card PayPal
You May Like
-
Single Layer Plastic Sheet ABS Extrusion Machine -- YX-21A
-
Industrial Machines Plastic Sheet ABS Extrusion Machine -- YX-21A
-
Machines For Manufacturing ABS Plastic Sheet -- YX-21A
-
ABS Luggage Making Machine for Extruding -- YX-21A
-
China Price of Plastic Extrusion Machine, Taiwan Quality -- YX-21A
-
Abs/pc/pvc/pe/ Extrusion Machine in Production Line -- YX-21A
Product Details
| Condition | New | Application | Sheet | |
| Plastic Processed | ABS | Screw Design | Single-screw | |
| Automatic Grade | Auto | Place of Origin | Zhejiang, China | |
| Brand Name | Xingxu | Model Number | YX-21A | |
| Voltage | 380V | Power(W) | 140KW | |
| Dimension(L*W*H) | 17000X4000X3300MM | Weight | 12T | |
| Certification | ISO,CE | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

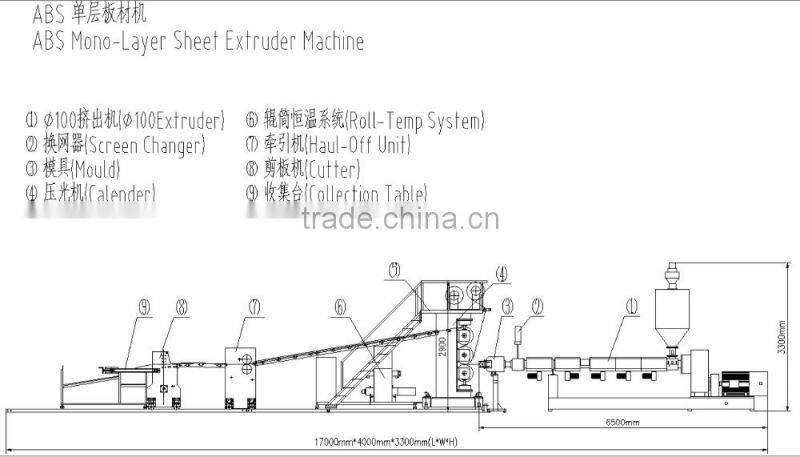

This machine is composed of Φ100 extruder,screen changer, mould, calender, lamination, roll-temp system, haul-off unit, cutter, collection table.
(1) : product raw material: ABS granules
(2): product maximum width: 900 mm;
(3) : the thickness of product: 1-4 mm;
(4) : the maximum extrusion yield: 200-380 kg/hr. ( around 230kg/hr)
(5) : the machine power: total machine 140 kw (heating power 63 kw), normal operation of the actual power about 100 kw.
If you need the detailed machine intruction, pls contact me. ^_^
Ruian Xingxu Machinery Co.,ltd is specialized in manufacturing Plastic Sheet Extruder Machine (such as ABS,PC,PP,PE,PC etc).
We have already had more than 23 years experience in this industry. Our machine has
passed ISO and CE certificate, and are exported to Western Europe, the Middle East, Southeast Asia more than 30 countries and regions.
Wooden Case/Wooden Pallet Packaging
If the equipment fails due to the quality of the machine during one year, we will provide
replacement and the repair Free of Charge. But after One Year customer must pay for Spare Parts, we will provide long-term technical assistance.
Workers must operate the machines according to the design of the machine. Xingxu Machinery will not be responsible for accidents which are caused by improper
operation of workers.
