Planer Head
Negotiable
/ Piece
1 Piece(Min.Order)
- Qingdao
- T/T
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | CTS | |
| Model Number | 803-1802 |
Product Description
Specifications

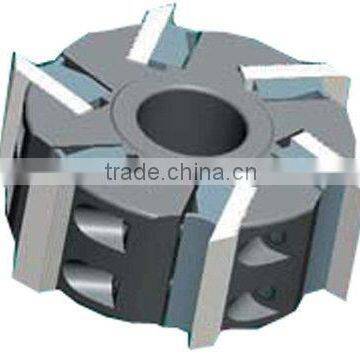

6 Wing Corrugated Back Woodworking Planer Head, for use on moulders for profile and planning.Features:
6 Wing Corrugated Back Woodworking Planer Head, for use on moulders for profi le and planning, shaving.
* Set includes: planer head, gibs and set screws.
* Please specify bore diameters in your order.
* High grade steel alloy body.
* 12°, 20° or dual angle 12°/20° cutting angles offerring fl exibility
to cut either hardwood or softwood.
* Accept corrugated 16TPI-60° knives up to 10mm. 16-90°available
upon request.
* Body diameter 100mm to 176.5mm.
* Cutting lengths: 50mm - 310mm
* Bore Sizes: 30mm to 80mm.
* Dynamically balanced to for maximum 8000 rpm.
* Knives are not included.
| Order No. | Body Dia. | Height | Max. Bore Dia. | Wing |
| 803-1802 | 150mm | 100mm | 60mm | 6 |
| 803-1804 | 150mm | 130mm | 60mm | 6 |
| 803-1806 | 150mm | 150mm | 60mm | 6 |
| 803-1808 | 150mm | 180mm | 60mm | 6 |
| 803-1810 | 150mm | 210mm | 60mm | 6 |
| 803-1812 | 150mm | 230mm | 60mm | 6 |
| 803-1814 | 150mm | 260mm | 60mm | 6 |
| 803-1816 | 150mm | 280mm | 60mm | 6 |
| 803-1818 | 150mm | 310mm | 60mm | 6 |
| 803-1820 | 163mm | 50mm | 70mm | 6 |
| 803-1822 | 163mm | 60mm | 70mm | 6 |
| 803-1824 | 163mm | 80mm | 70mm | 6 |
| 803-1826 | 163mm | 100mm | 70mm | 6 |
| 803-1828 | 163mm | 130mm | 70mm | 6 |
| 803-1830 | 163mm | 150mm | 70mm | 6 |
| 803-1832 | 163mm | 180mm | 70mm | 6 |
| 803-1834 | 163mm | 210mm | 70mm | 6 |
| 803-1836 | 163mm | 230mm | 70mm | 6 |
| 803-1838 | 163mm | 260mm | 70mm | 6 |
| 803-1840 | 163mm | 280mm | 70mm | 6 |
| 803-1842 | 163mm | 310mm | 70mm | 6 |
| 803-1844 | 176.5mm | 50mm | 80mm | 6 |
| 803-1846 | 176.5mm | 60mm | 80mm | 6 |
| 803-1848 | 176.5mm | 80mm | 80mm | 6 |
| 803-1850 | 176.5mm | 100mm | 80mm | 6 |
| 803-1852 | 176.5mm | 130mm | 80mm | 6 |
| 803-1854 | 176.5mm | 150mm | 80mm | 6 |
| 803-1856 | 176.5mm | 180mm | 80mm | 6 |
| 803-1858 | 176.5mm | 210mm | 80mm | 6 |
| 803-1860 | 176.5mm | 230mm | 80mm | 6 |
| 803-1862 | 176.5mm | 260mm | 80mm | 6 |
| 803-1864 | 176.5mm | 280mm | 80mm | 6 |
| 803-1866 | 176.5mm | 310mm | 80mm | 6 |
