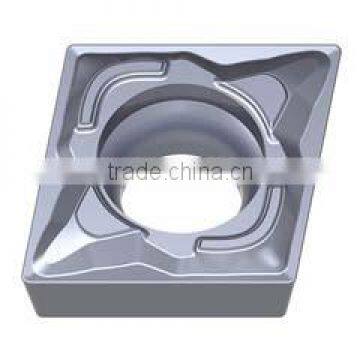

CCMT - FW insert for Stainless Steel Finishing, Positive angle

Carbide Insert: CCMT

Turning Insert for Stainless Steel, Finishing machining, Positive angle, PVD coating

Chip breaker: FW
Useage: For finishing cutting, Better chip control ability in Steel and Stainless Steel machining.
Recommended cutting parameters: ap=0.15-2.0mm; fn=0.01-0.3mm/r
Process: turning, facing, back turning and copying machining.
Charactoristic: light cutting geometry, low cutting force, suitable for slender shafts, thin walled workpiece and unstably clamping workpiece.
Typical parts: Shaft, Wheel and Gear hub, which a good surface quality is preferable.

Recommended grade: CTG20B
ISO classification: M25 (M10-M30)
Color: Cyan-blue gray dark
Application recommendation: PVD coated micro-grain carbide, used for various Stainless Steel finishing machining at medium to low cutting speed. When need excellent edge strength and good surface quality, it can provide a perfect smooth cutting. Good ability in thermal shock resistance. Suitabel for light interrupted cutting.

Optional grade: CTG05B
ISO classification: M10 (M05-M15)
Color: Cyan-blue gray dark
Application recommendation: PVD coating grade, used for typical hardened steel and plastic mold steel machining. Machining hardness HRC36 and above.

Optional grade: CTG30B
ISO classification: M30 (M25-M35)
Color: Cyan-blue gray dark
Application recommendation: PVD coating grade, used for austenitic stainless steel and duplex stainless steel semi-finishing to rough machining at low to medium cutting speed. Good ability in thermal shock resistance. Ideal for quickly interrupted cutting.
