Large Capacity Grinding Ball Mill With Forged Steel Balls
- tianjin qingdao or as required
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
Condition | New | Type | Other, Ball Mill, GZMY series ball mill | |
Motor Type | AC Motor | Power(W) | 15kw-475kw | |
Capacity(t/h) | 0.5-83 | Place of Origin | Henan, China | |
Brand Name | Jinma | Model Number | MQG | |
Dimension(L*W*H) | Depend on the model | Weight | 3.9ton-79ton | |
Certification | ISO9001:2008,CE,SGS | Warranty | 2 years | |
After-sales Service Provided | Engineers available to service machinery overseas |
Standard packing, Seaworthy packing,Container packaging,Standard export wooden cases.
Product Description
Large Capacity Grinding Ball Mill With Forged Steel Balls
Ball Mill description:
Ball mill is one kind of new high efficient grinding machine. It is mainly composed of feeding part, discharging part, rotary part and driving part. The driving part including reducer, small transmission gear, electrical and electronic control. The energy-saving ball mill is widely used in metallurgy, mining, chemical, cement, construction, industrial and mining industries etc.
Ball mill advantages:
1.Grinding efficiency
2.Saving energy
3.High output
4.Simple designed machine
5.Reasonable structure
Specifications of Ball Mill:
Model | Rotation speed (r/min) | Grinding media loading (t) | Feed size (mm) | Discharge size (mm) | Capacity (t/h) | Power (kw) | Weight (t) |
Φ900×2100 | 38 | 1.5 | ≤15 | 0.075-0.89 | 0.5-2 | 15 | 3.9 |
Φ900×2400 | 38 | 1.8 | ≤15 | 0.075-0.89 | 0.7-2.8 | 18.5 | 4.5 |
Φ900×3000 | 38 | 2.51 | ≤15 | 0.075-0.89 | 0.8-3.5 | 22 | 5.0 |
Φ1200×2400 | 32 | 3.8 | ≤20 | 0.074-0.4 | 0.9-4.8 | 30 | 9.2 |
Φ1200×2800 | 32 | 4.0 | ≤20 | 0.074-0.4 | 1.0-5.0 | 30 | 9.5 |
Φ1200×3000 | 32 | 4.5 | ≤20 | 0.074-0.4 | 1.2-5.6 | 37 | 11.5 |
Φ1200×4500 | 30 | 5.5 | ≤20 | 0.074-0.4 | 1.5-6.0 | 55 | 13.6 |
Φ1500×3000 | 27 | 7.0 | ≤25 | 0.074-0.4 | 2.5-6.5 | 75 | 15.0 |
Φ1500×3500 | 27 | 8.5 | ≤25 | 0.074-0.4 | 3.0-8.2 | 75 | 15.6 |
Φ1500×4500 | 27 | 11 | ≤25 | 0.074-0.4 | 4-10 | 95 | 21 |
Φ1500×5700 | 27 | 12 | ≤25 | 0.074-0.4 | 4-13 | 110 | 23.5 |
Φ1830×3000 | 24 | 12 | ≤25 | 0.074-0.4 | 5-15 | 130 | 31 |
Φ1830×3600 | 24 | 13 | ≤25 | 0.074-0.4 | 5-16 | 130 | 32 |
Φ1830×4500 | 24 | 14 | ≤25 | 0.074-0.4 | 5-18 | 155 | 33.5 |
Φ1830×7000 | 24 | 21 | ≤25 | 0.074-0.4 | 6-20 | 210 | 36 |
Φ2100×3000 | 24 | 18 | ≤25 | 0.074-0.4 | 7-26 | 210 | 38 |
Φ2100×3600 | 24 | 21 | ≤25 | 0.074-0.4 | 7-35 | 215 | 39.5 |
Φ2100×4500 | 24 | 26 | ≤25 | 0.074-0.4 | 8-42 | 245 | 43.5 |
Φ2200×3000 | 21 | 28 | ≤25 | 0.074-0.4 | 8-43 | 245 | 46 |
Φ2200×4800 | 21 | 35 | ≤25 | 0.074-0.4 | 9-45 | 285 | 48 |
Φ2400×3000 | 21 | 23 | ≤25 | 0.074-0.4 | 8-60 | 285 | 55 |
Φ2700×4500 | 21 | 48 | ≤25 | 0.074-0.4 | 12-83 | 475 | 79 |

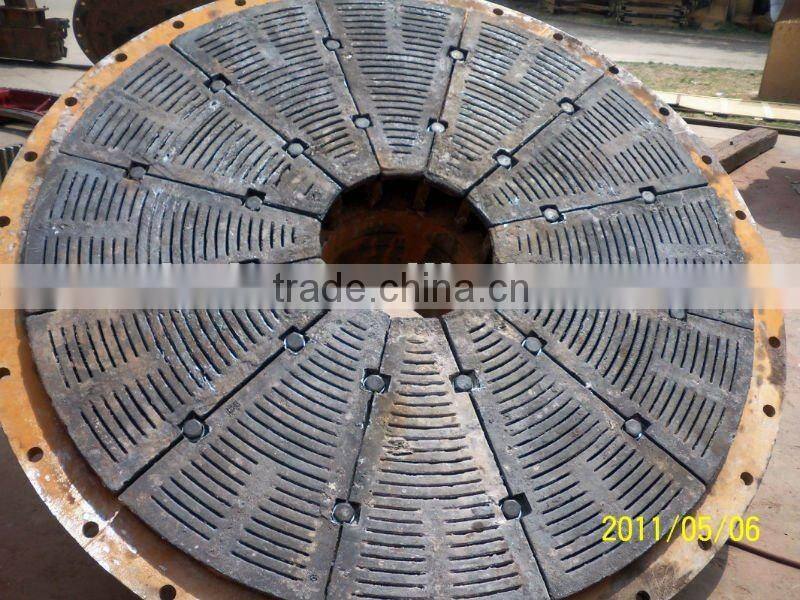

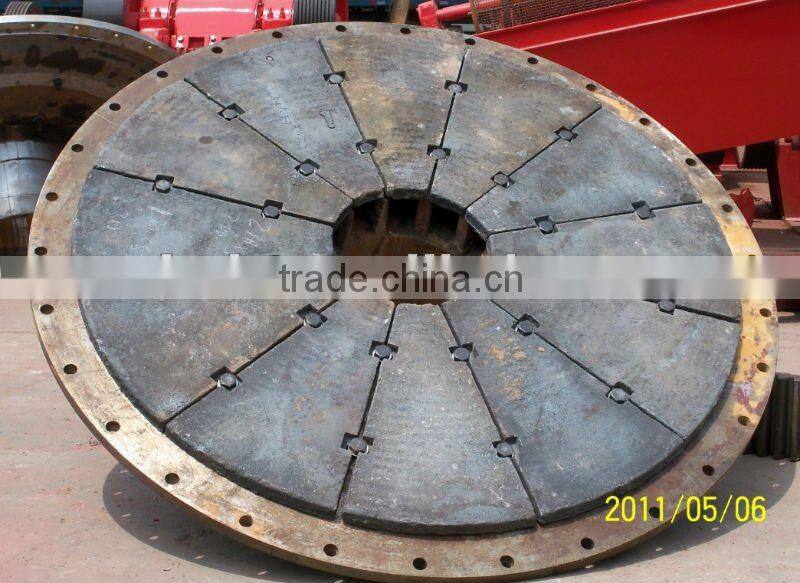

Ball mill lining board:

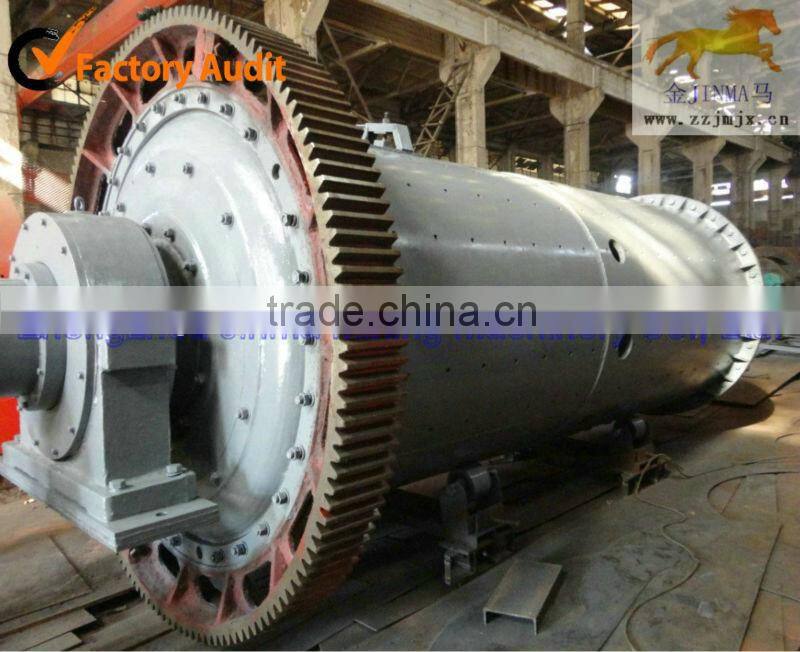

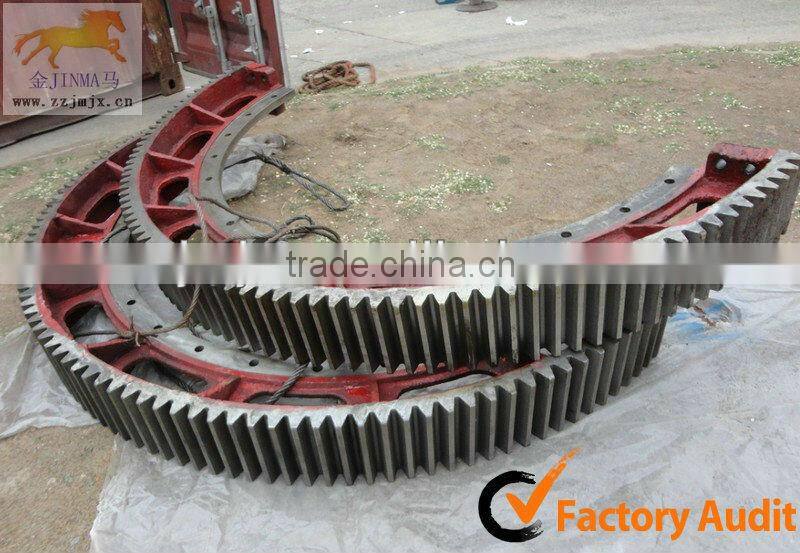

Ball mill gear:

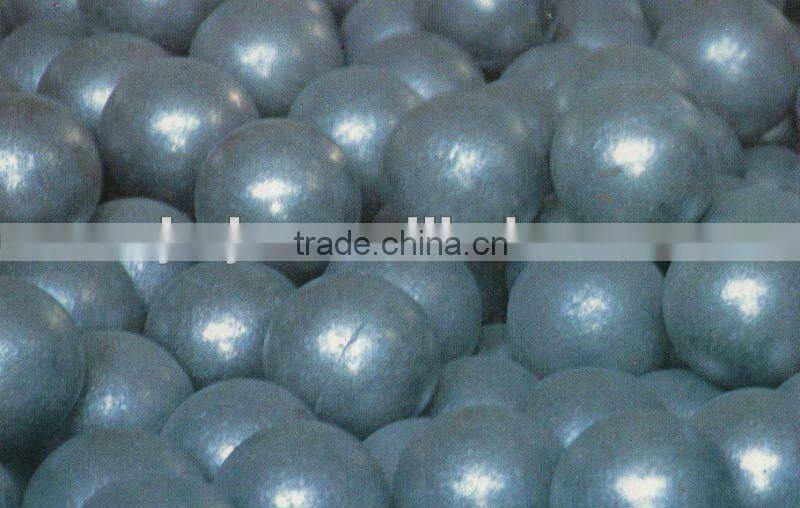

Forged steel balls:

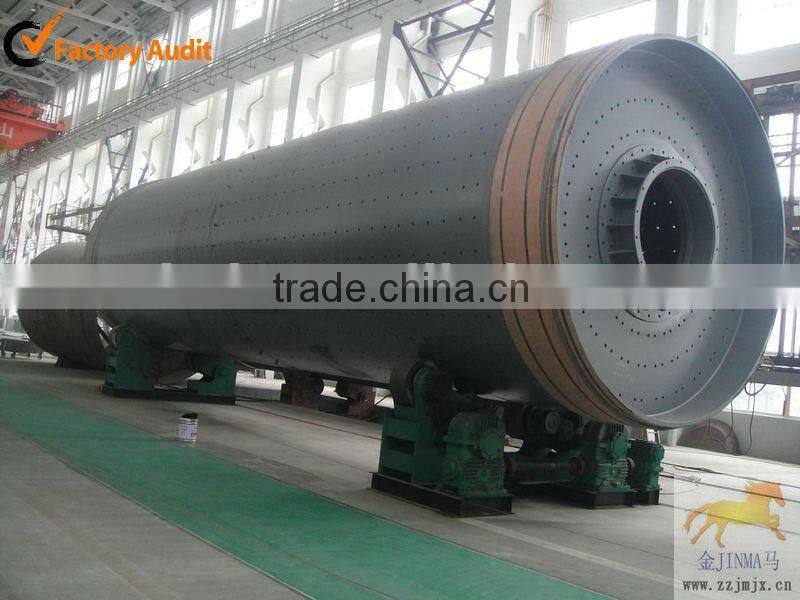

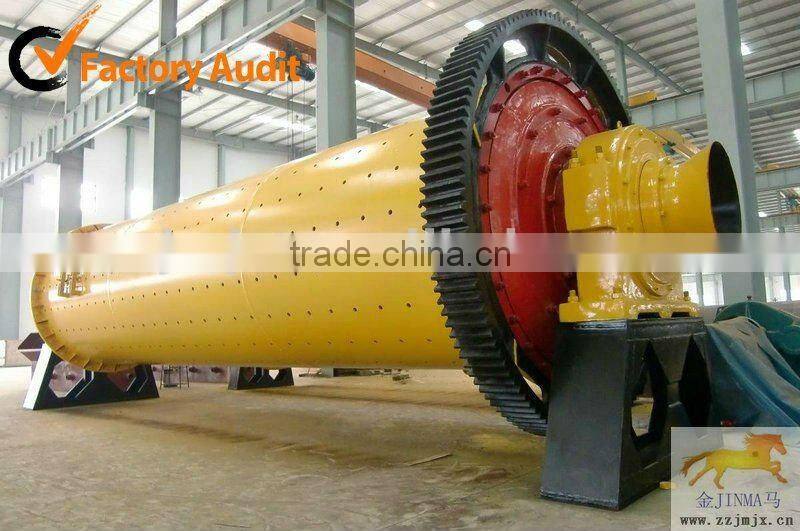

Ball mill photos:

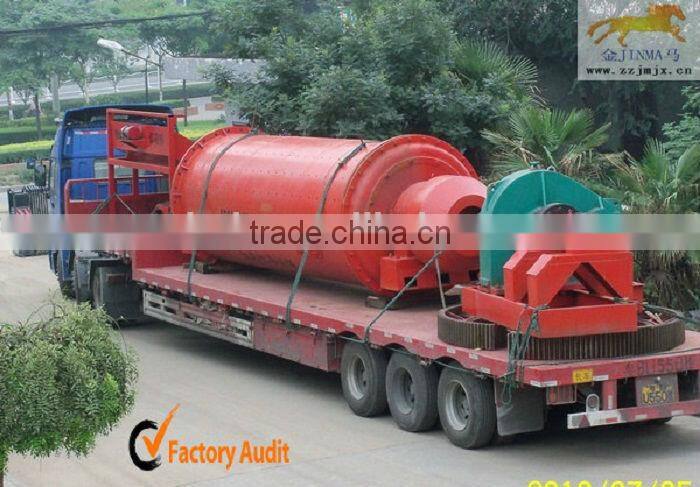

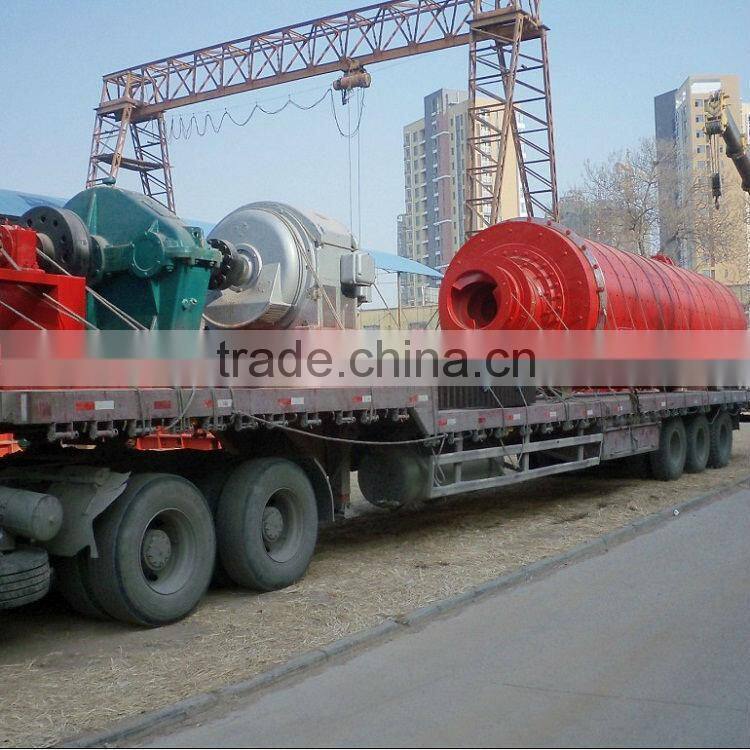

1.The continents such as South America, Middle East, Africa, Oceania and Europe Etc, we will send machinery to you by ship.
2.For neighborhood countries of China, such as Russia, Mongolia, Kazakhstan, Uzbekistan etc., we can ship construction machinery by road or railway.
3.For light weight of the goods or components, we can also send it by international courier service.
Zhengzhou Jinma Mining Machinery Co., Ltd.
Our advantages:
1, More than 30 years of production experience
2, Certificates: ISO9001:2008, BV, SGS
3, Independent Imp. & Exp. Right, R&D center, production base, QC, Marketing and after - sales service department
4, Our products are exported to over 50 countries like Chile, Peru, Costa Rica, USA, one analyst, Indonesia or, Malaysia, India, Philippines, Pakistan, while Iran, Russia, Kazakhstan, Azerbaijan, Turkey, North Chesapeake, South Africa, Tanzania, Ghana, etc.
Before you buy the equipment, please consider the following questions:
1.What minerals are you separating?
2.What's the maximum size of your raw minerals?
3.How much capacity do you need per hour?
Need more details about energy saving ball mill, please contact:
