Stainless Steel Slitter Line

stainless steel slitter line

Dear Customers, the technical parameters and pictures of our machinery you currently browse may not meet your requirements,

But please don't be discouraged, would you please tell us your specific requirements or details, we can provide you the best and most satisfactory machinery equipment.

Uses and features:

A slitting line, also called slitting machine, is suitable for unwinding the metal coil into a strip, slitting it into narrower strips of the needed width and recoiling them for sale or the next procedure.

Slitting line can be categorized into thin strip slitting line and thick strip slitting line for the thickness of the strip or copper strip slitting line, silicon steel, stainless steel, aluminum, carbon steel strip slitting line, etc for the material processed.

Line composition:

1.Loading coil car  2.Uncoiler  3.Straightener device(optional)   4.Pinch roll&leveler & hydraulic shearer(optional)   5.Loop pit(optional)   6.Side guide   7.Slitter   8.Transition platform & scrap winder   9.Loop pit   10.Tension station   11.Recoiler  12.Unloading coil car

Optional line designs for different purpose:

Double loop type

Single loop type

Pull through type

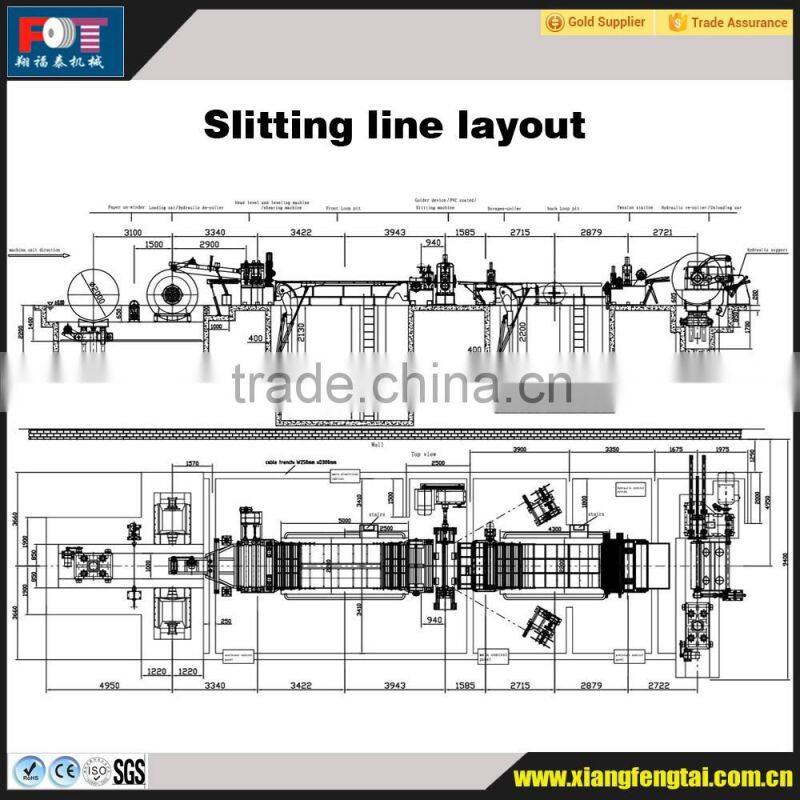

Slitting line layout:

Main technical parameter for a 2000mm type machine line:

Material: Cold-rolled, hot-rolled carbon steel, stainless steel, galvanized steel, aluminum coil

Material thickness:0.3-3.0mm

Material width:800-1950mm

Coil I.D.: Φ508mm/Φ610mm

Coil O.D.: ≤Φ2000mm

Coil weight:20 tons max

Narrowest strip width slit into: 25mm (strip thickness≤1mm)

Width cutting precision: ±0.05mm(strip thickness≤1), ±0.1mm(strip thickness>1.5mm)

Slitting Burr: 0.03minimum, 5% of the trip thickness

No. of slitting: 25no.(thickness1mm), 12no.(thickness2mm), 7no.(thickness 3mm)

Line working speed: 150m/min max

Total power: Approx.210kw

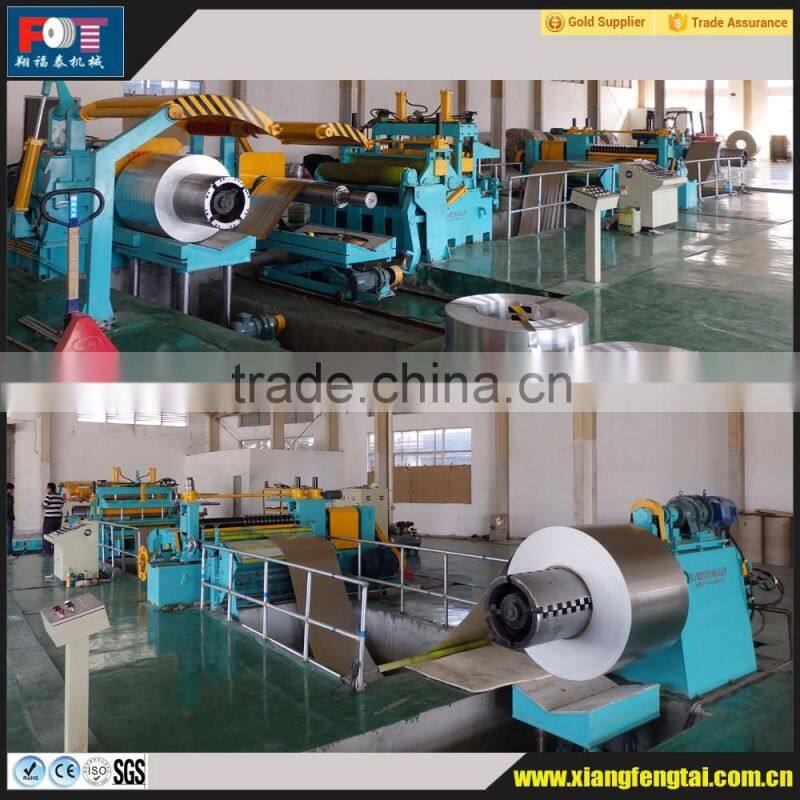

Overall view of the line:

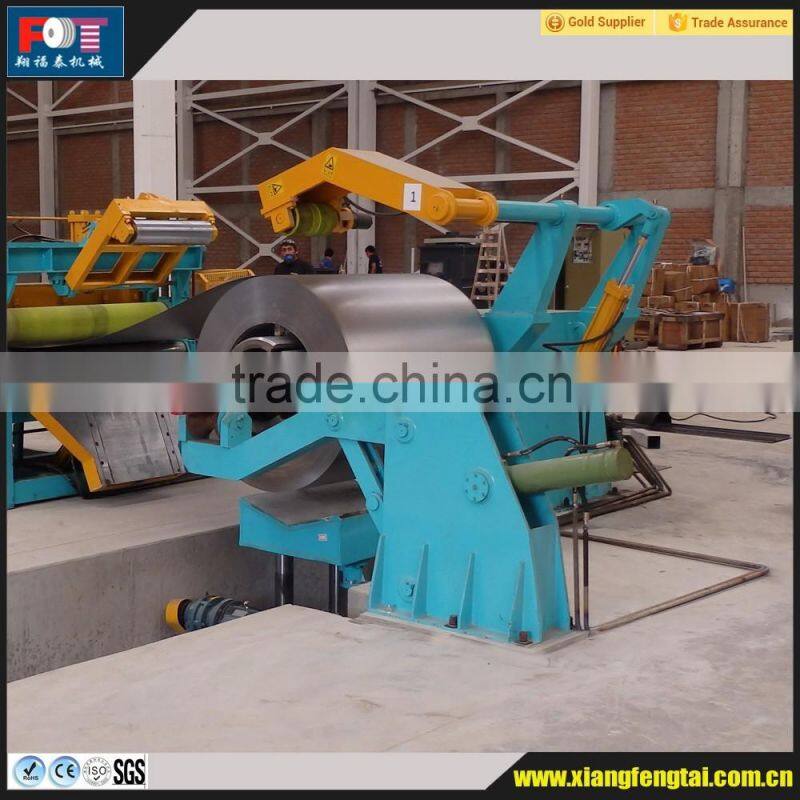

Hydraulic uncoiler

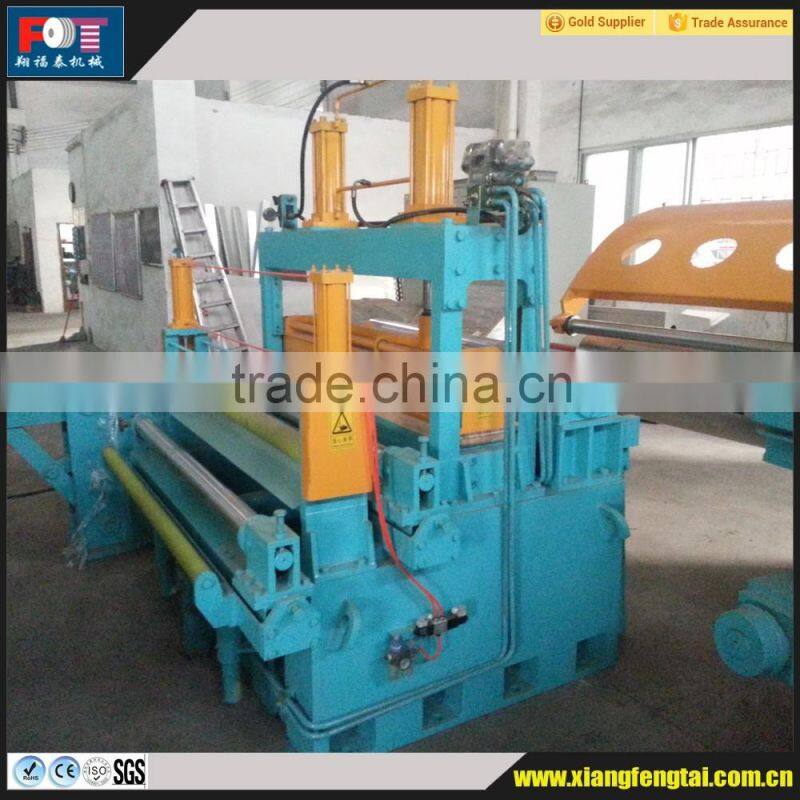

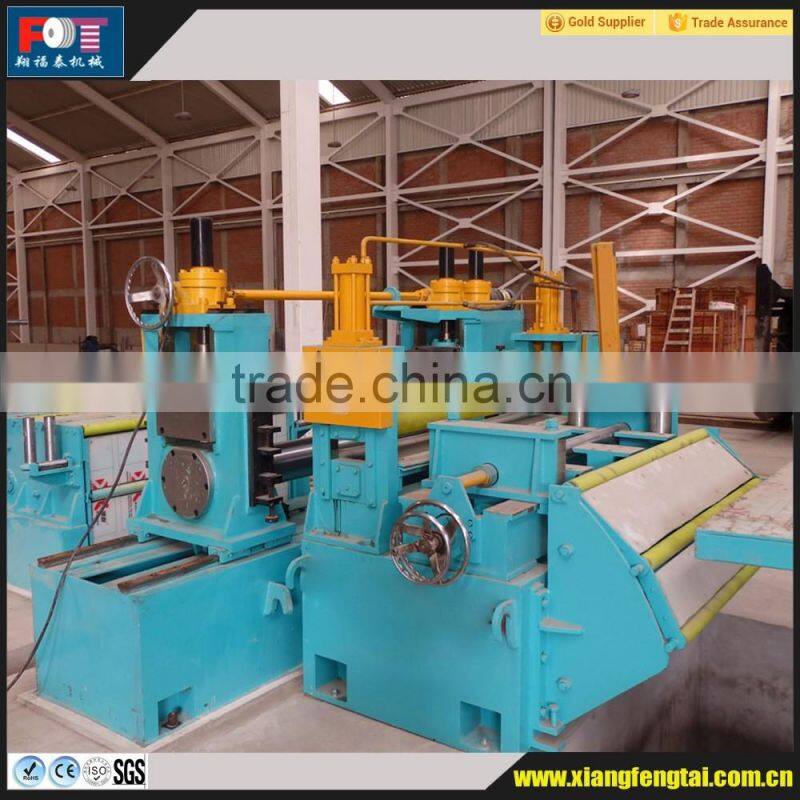

Side guide and Slitter head

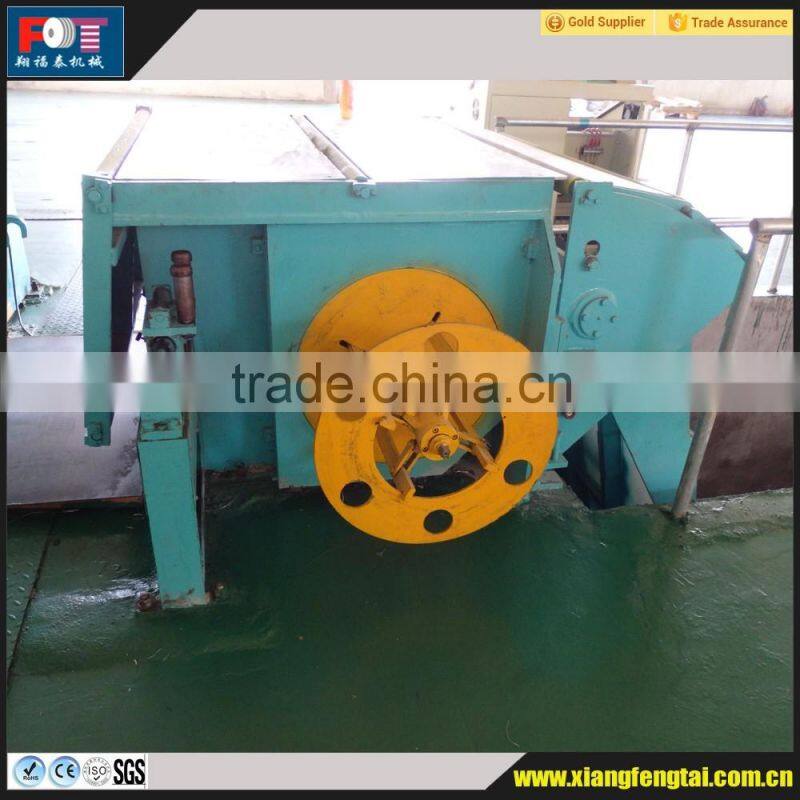

Transition platform & scrap winder

Tension station

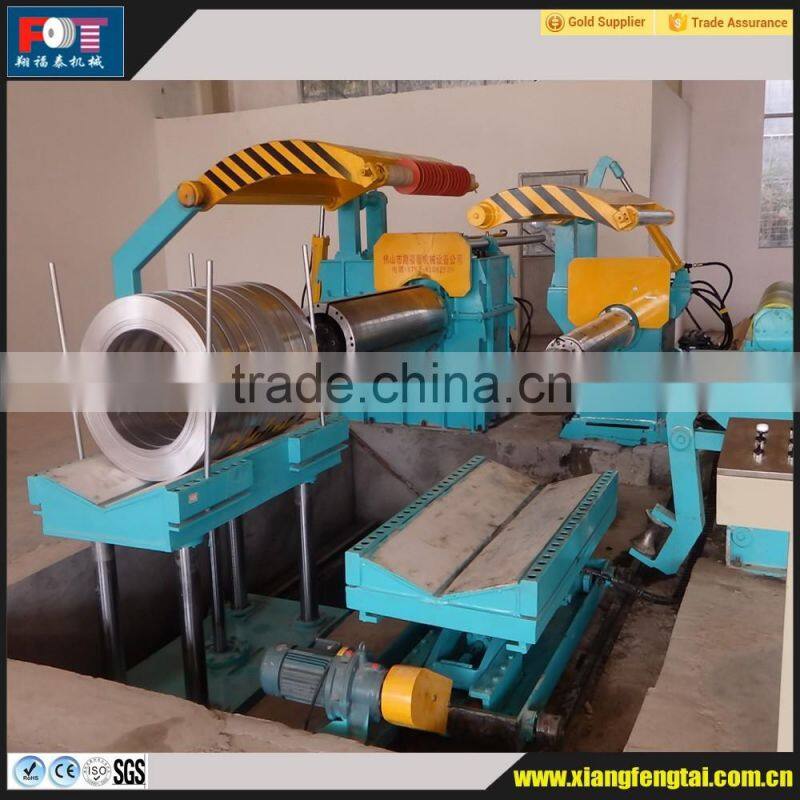

Hydraulic recoiler

1.Our Purpose:

Sincerity service is the tenet of the company; quality is the key to the existence of the company and customer-focused principles. Guided by the market, the company can design and manufacture high-efficiency, high-precision and superior price-performance high-quality equipment.

We sincerely look forward to cooperating with all customers, creating brilliance.

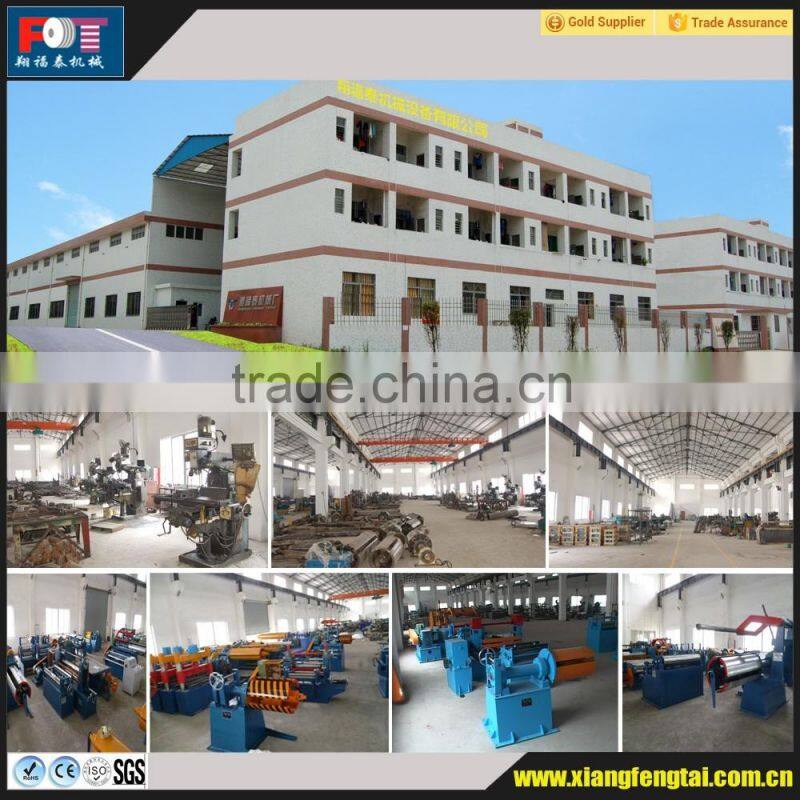

2.About Company:

Foshan Xiangfutai Machinery Equipment Co.,Ltd. (FOT)is located in the Pearl River Delta ---- Foshan, which is the stainless steel industry base of China.

The company specializes in manufacturing metal plate processing equipments such as :vertical slitting machine, leveling and cross cutting length machine, plate pickling lines,metal cleaning and degreasing lines,stretch bending and straightening lines, metal polishing machine,etc. Which are widely used in metallurgy, building material, home appliance, furniture, cabinet, automobiles, hardware and other industries.

Over 15 years dedicated to research and development, production, commissioning, use, product stability, high efficiency. Excellent service on before-sale, on-sale and after-sale. the company owns a large number of senior technical personnel, and the products are exported to overseas countries.

Quick Response, all your questions will be answered within 48 hours. Our motto is: "Quality first, Customer utmost".

We have professional sales team, who is not only a replier but also a problem solver, we always give customers the most feasible marketing suggestions according to their own market mode.

3. About Market:

Our product sells in : China, India, Iran, Pakistan, kazakhstan, uzbekistan, tajikistan, Thailand, South Korea, Vietnam, Laos, Cambodia, Malaysia, Peru, Ecuador, Guatemala, Mexico, Angola, South Africa, etc.

Our goal is to make our products throughout every corner of the world.

4.Why choose FOT:

(1) OEM services are welcome, welcome to visit our factory firstly before you place an order.

(2) High Quality Control.

(3) 15 years mechanical manufacturer

(4) Cooperate with many foreign customers,have rich experience in overseas.

(5) Committed to the standardization of machinary market, we make great efforts to the production of high quality and durable machine with the technological innovation.

(6) Our products with Best price and quality.

(7) Our mission is to help our customers reduce costs and improve efficiency!

5.About shipping:

(1) Sea transportation, Land transportation, and so on.

(2) Please choose your convenient shipping method according your detail requirement.

(3) The shipping discount is different in different season and depend different weight; we will choose the cheapest and safest way according your detail quantities.

6.Delivery:

(1) Delivery time is 60-120 working days after confirm contract

(2) ODM 90-150 days after all info confirmed.

(3) Depends on order quantity

(4) According to the actual situation, appointment time of delivery.

7.Frequently asked questions:

(1) Do you have after sales support?

Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.

(2) How to visit your company?

Our location in Zhaoda Industry Park, Shishan town,Nanhai District,Foshan City Guangdong China.

Way one: You can fly to Guangzhou airport, and then can take the subway(metro) from Guangzhou airport to Foshan city (1.5 hour), and then we can pick up you from subway station.

Way two: You can fly to HoogKong airport, then by high speed train from HoogKong to Guangzhou South Railway Station, then can take the subway(metro) from Guangzhou city to Foshan city (1 hour), and then we can pick up you from subway station.

(3) What can you do if the machine broken?

Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts replace the broken parts for free,but you need pay the express cost by yourself;if after warranty period,we can through negotiation for to solve the problems,and we supply the technical support for the whole life of the equipment.

(4) Can you be responsible for transport?

Yes,please tell me the destination port or address.we have rich experience in transport.

(5) You are trade company or factory?

We are factory, a professional manufacturer. But we have rich experience in export machinery equipment.

(6) Why your price is higher than others?

As we persist on that each factory should put quality at the first place. We spend time and money on developing How to make machines much more automatic, accurate and high quality. We can make sure that our machine could use more than 20 years.

(7) How long the machine could be made?

After all, this is a large mechanical equipment,usually we need 3~4 months to production. If you urgent need the machines, We try our best to shorten the delivery time.

If you want to learn more and get latest price please add my trademanager or send inquiry to me, I will be happy to service with you !

...
