Cold Rolled cr Cutting-to-length Line

Cold rolled cr cutting-to-length line

Cutting sheets from coils

Cut-To-Length machine Lines are purposed for Uncoiling, Leveling and Straighting as well as Cross Cutting metal strip to produce sheets for proper Stacking; every these functions are accomplished by our machines which are designed to cope with an impressive variety of material features ranging from the thinner softer aluminum to the thicker – tougher stainless and high strength carbon steel.

Cut to length line consists of:

1.Coil car   2.Uncoile  3.Hydraulic feeding pre-calibrating machine   4.Pinch Roll leveler  5.Loop pit  6.Side guide & Measuring roll  7.Hydraulic Shearing machine  8.Roller Conveyor  9.Stacker  10.Electrical Panels & hydraulics

Coil strip of varying widths can be Cut to Lengths according to the desired length requirements. We provide Cut to Length lines for both H.R & C.R Coils with the following range:

Strip width - 150 mm to 1950 mm

Thickness - 0.2 to 12.0 mm

The coil strip is pulled by the leveler assembly & fed into the feeder assembly which is equipped with neoprene coated measuring roll coupled with a high resolution encoder to ensure the exact desired strip length is cut with utmost accuracy. Stacker trolley system with unique design of multiple stackers can be provided for maximum productivity with utmost efficiency by saving on the change over time of the stacks.

Cut-to-length lines can be designed according to customer's requirement.

Please contact us to know more information to suit your exact need.

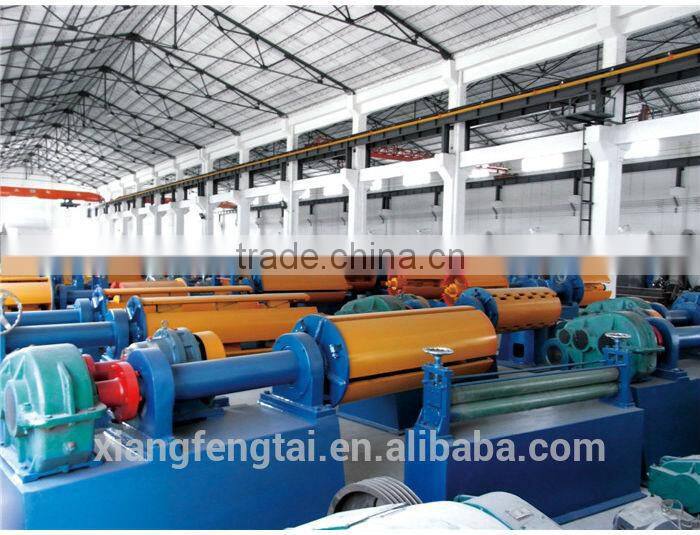

Part of the models of cut to length lines designed by FOT.
