Home > Products > Diesel Water Pump > 1.5" diesel water pump / 1.5inch 5HP high pressure diesel Water Pump (KDP15H)

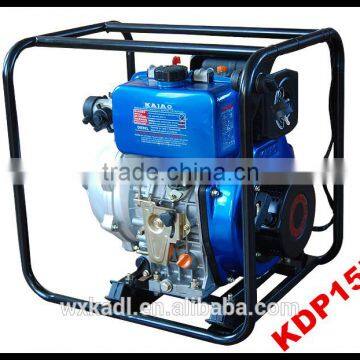

1.5" diesel water pump / 1.5inch 5HP high pressure diesel Water Pump (KDP15H)
Negotiable
/ Piece
10 Pieces(Min.Order)
- 2000 Piece / Pieces per Month
- Shanghai
- T/T
You May Like
-
2-inch KA170F engine diesel water pump/5HP engine pumps FOR SALE!
-
3 inch Water Pump cast iorn small tank
-
3"INCH IRON High Pressure Water Pump Small tank
-
2-inch by 2" KDP20 diesel water pump/3HP engine pumps
-
3''/55m High Lift Diesel Power Iron Made Water Pump
-
3''/55m High Lift High Pressure Iron Diesel Water Pump
Product Details
| Place of Origin | Jiangsu, China | Brand Name | KAIAO | |
| Model Number | KDP15H | Theory | Jet Pump | |
| Structure | Diaphragm Pump | Usage | Water | |
| Power | Other, 5HP | Standard or Nonstandard | Standard | |
| Fuel | Diesel | Pressure | High Pressure | |
| Application | Other, home use |
Product Description
Specifications
1.*Full frame structure protects the pump from the unfavorable condition.2.CE&ISO9001-2000 approved
3.*Easy maintena
pump
| Water Pump | Model | KDP15H | |
| Suction,discharge port diameter[mm(in)] | 40(1.5") | ||
| Cont.head(m) | 42 | ||
| Self-priming time (s/4m) | 40 | ||
| Max suction head (m) | 8 | ||
| Cont.capacity (m3/hr) | 10 | ||
| Fuel tank Capacity:L | 3.5 | ||
| Engine | Enigine model | KA178F | |
| Type | Single-cylinder,vertical,4-stroke air-cooled diesel engine | ||
| Bore X Stroke (mm) | 78×62 | ||
| Fuel | Summer:0# Winter: -10# | ||
| Lubricatiom Oil Model | SAE10W-30( above CD grade) | ||
| Lubricatiom oil volume(L) | 1.1 | ||
| Fule oil consumption rate(g.kw/h) | 285 | ||
| Displacement:L | 0.296 | ||
| Power/ speed:KW, r/min | 4/3600 | ||
| Compression Ratio: | 20 | ||
| Combustion system | Direct lnjection | ||
| Standard Features | Oil alert | Yes | |
| Connecter of infall,Connect of outfall | Yes | ||
| Fiffer | Yes | ||
| Seal ring | Yes | ||
| Hoop | Yes | ||
| Optional Features | Luxury big fuel tank | optional | |
| Dimensions | Dimension:mm | 605*470*582 | |
| Dry weight:kg | 50 | ||
| 20FT | 120 | ||
