Home > Products > CNC Router > LX1212 CNC Router wood cutting machine

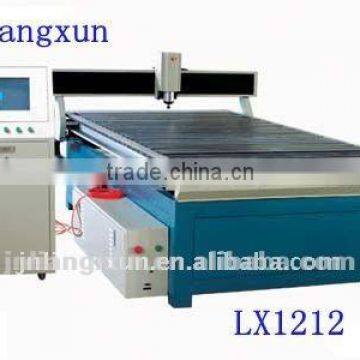

LX1212 CNC Router wood cutting machine
- Qingdao
- Credit Card
You May Like
Product Details
| Condition | New | CNC or Not | CNC | |
| Place of Origin | Shandong, China | Brand Name | Liangxun | |
| Model Number | LX1212 |
Product Description
Specifications
LX1212 CNC Router1)high resolution
2)user-friendly-design
3)imported high precision ball screw
4)dfficient operation
LX1212 CNC Router wood cutting machine
Specifications:
Table size: | 1200mm*1200mm |
Resolution ration: | 0.025mm |
Spindle power: | 2.2KW-4.5 KW |
Working voltage: | AC380V or 200V /50Hz or 60HZ |
Working precision: | About 0.04mm |
Location precision: | About 0.05mm |
Table structure | Vacuum adoption |
X,Y,Z structure | Ball screw |
The speed of open working:: | 60m/min |
Spindle rotating speed: | 24000 revolution/min |
Max speed of working: | 25000mm/min |
Feeding height | 120- 200mm(option) |
The diameter of the knife | Φ6,Φ12.7 |
The engraving instruction | HPGL,G code |
Knife pressure | 0.7Kpa |
Cleaning power | 2.2KW |
Absorption power | 5KW |
Gross power | 20KW |
Power consumption: | 2.8KV |
Work mode: | stepper |
Applicable area:
Applicable for advertisement, double face board and scutcheon, department brand, chest brand and the architecture board, ABS brand, the engraving and cutting of acrylic and the engraving of many jade article.
Characteristics:
This machine is a machine which was published early. It has been tested for many years, it is integrated ceaselessly and perfected usually. It has a large number of customers.
It is very stable, reasonable lathe bed. It is stable when working, small inertia, fast processing speed, high precision.
It has the high speed water cooled engine, high quality fractionize drive, it can work stable for a ling time.
It adopts the advanced data-controlled system, it has the easy operating software, we can check the contrail of the knife, add and delete the depth of the Z axis, adjust the rotate speed. It can work at the convenient and comfortable way.
Samples:
