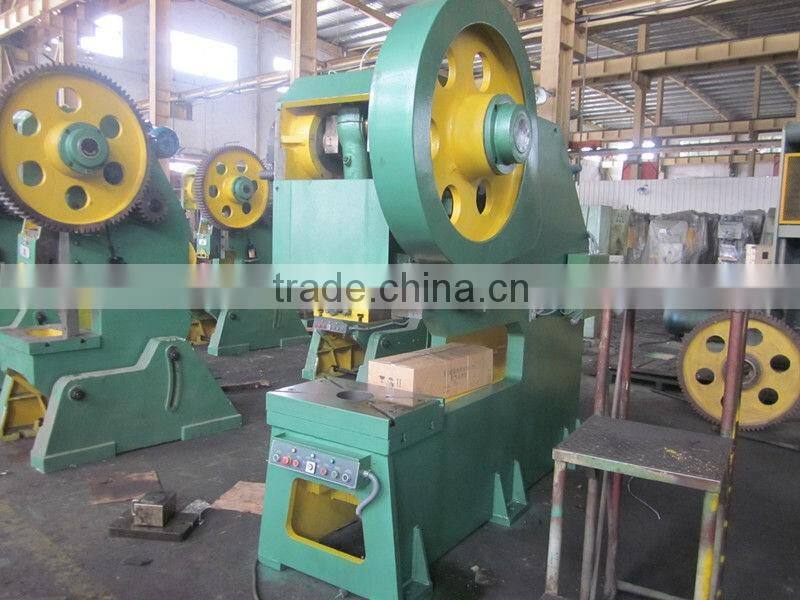

J23 40D Mechanical open back power press

J23 40D Mechanical open back power press

J23 40D Mechanical open back power press performance:

1.Welded frame with quality steel which means good rigidity.

2.Square figure long guide with six friction faces makes abrasion resistant and punching precision.

3.Hydraulic overload protector has sensitive response and reliable motion, which can protect the die when overloading.

4.Combined pneumatic clutch and brake are made of friction material, which means long service life.

5.Closed gear-driven, dipped in lube, which drives stably with low noise.

6.Slide with counter balancer, which will eliminate the clearance and improve the stability and precision.

7.Intermittent auto lubrication makes every point get fine and safe lubrication. Thus, long service life is saved.

8.PLC electric control system is safe and reliable.

9. Air cushion, photo guard, auto feeder and speed die changing are optional.

J23 40D Mechanical open back power press parameter:

If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.

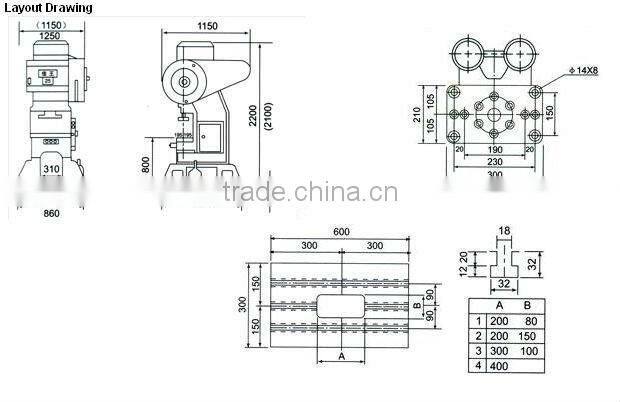

The drawing of J23 40D Mechanical open back power press:

1.How about your J23 40D Mechanical open back power press quality?

Better is a mature brand in CHINA,through our many years research in technology. our design including structure and detailed security and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry ,there are Better machines.

2. What’s your after-sale service?

Better provide oriented after-sales service including the oversea engineers training available and also international dealer center for any emergency guidance.We have established worldwide network to guarantee our timely response for your any demand no matter where are you.

We welcome engineers from your side to learn the technical design and normal maintenance here,this will help your easy in understanding and helpful if you need to be our dealer.

3. How to operate your J23 40D Mechanical open back power press?

Don’t worry,we have our company own CD/Manual to show you along with the machine.So you can learn this from the existing documents to deepen your knowledge and understanding. Anyhow there are another way is through internet video face to face for machine teaching, because of the high development in internet,the world has become smaller and you can easy catch us if any assistance needed .
