Product Details
| Place of Origin | Shandong, China | Brand Name | OEM-Carbon Fiber Roller | |
| Model Number | Carbon Fiber Roller | Application | Other, industry, Paper, Film, and Foil Converting Industries | |
| Shape | Other, carbon fiber hollow tube | Dimensions | Consumer's Request | |
| Product Type | Other, carbon fiber tube | C Content (%) | as ordered | |
| Working Temperature | Normal | S Content (%) | NONE | |
| N Content (%) | NONE | H Content (%) | NONE | |
| Ash Content (%) | NONE | Volatile | Reasonable |
Product Description
newest product lighter weight and higher critical speed carbon fiber roller
Carbon Fiber Introduction
Carbon Fiber is an extremely light weight reinforcing fiber derived from the element carbon.Sometimes known as graphite fiber,when this extremely strong material is combined with a polymer resin,a superior composite product is produced.
Black in color,carbon fiber is produced by two different methods known as PAN or Pitch.Thousands of tiny strands of carbon are produced and combined to create a filament.Using textile techniques,these filaments are then woven or stitched together to create cloth like fabrics that used in the composite structure.

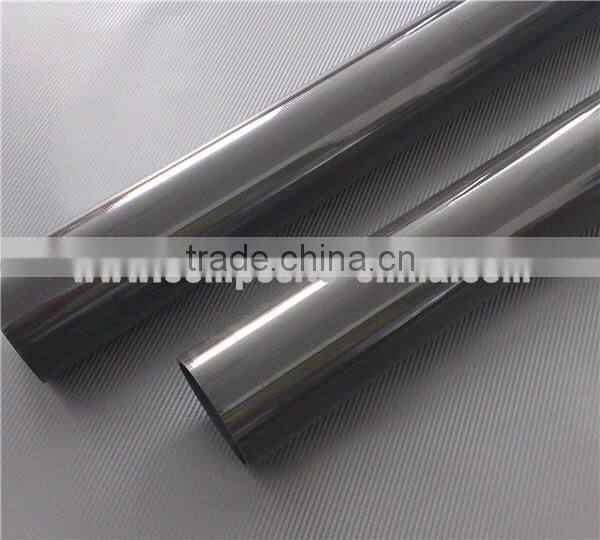

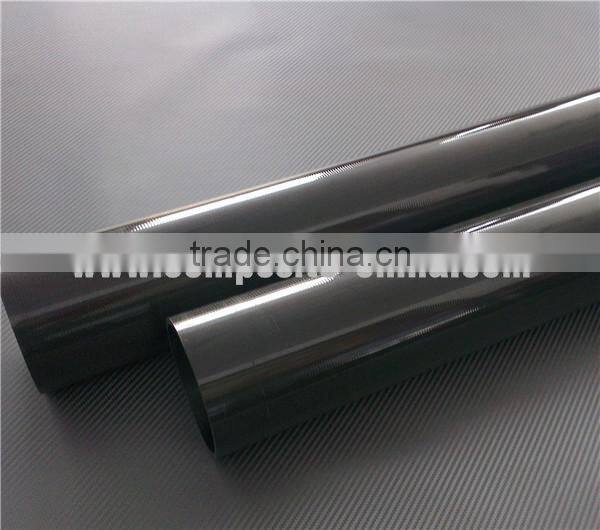

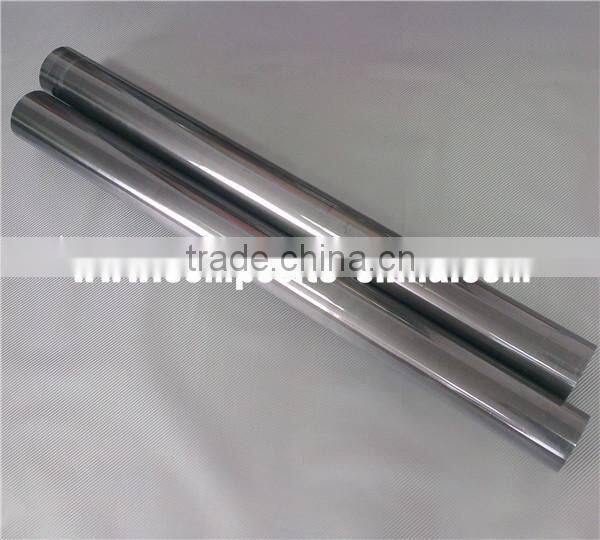

Carbon Fiber Roller Detailed Image
Carbon Fiber Roller
Carbon Fiber materials, developed for aerospace applications, are gaining increased acceptance in industrial roller applications because of their reduced weight and inertia, and high relative stiffness. For a 3.5 inch diameter roller with a 74 inch face length, quarter inch wall, that the carbon fiber roll weighs about 20% of what a comparably dimensioned steel roll would weigh, and 58% of what an aluminum roll weighs. This reduced mass results in reduce bearing loads, which increases bearing life and therefore reduces maintenance costs.
In addition, ease of maintenance is increased as large rolls can be handled by a single man without crane support.
Advantage of Carbon Fiber Roller
- Low Rotational Inertia(Reduced mass moment of inertia by up to 80%)
- High Stiffness(High Modulus)
- High Specific Modulus(High Stiffness to Density Ratio)
- Low Mass
- Low Momentum
Carbon Fiber Roller Specification Sheet
| Carbon Fiber Roller Specification | ||||||
| Product Name | O.D. | I.D. | Length | Weight | Deflection | Max Pull |
| (mm) | (mm) | (mm) | (kg) | (200kg gravity) | (kgf) | |
| Idler Roller | 200 | 180 | 3040 | 30 | 0.4 | 3800 |
| Idler Roller | 176 | 150 | 3040 | 33 | 0.49 | 3400 |
| Idler Roller | 140 | 120 | 3040 | 20 | 1.25 | 1700 |
| Idler Roller | 114 | 100 | 3040 | 12 | 3.2 | 800 |
| Idler Roller | 50 | 43 | 2800 | 2.3 | 6.6(20kg gravity) | 40 |
| Idler Roller | 44 | 38 | 1500 | 1 | 3.2(20kg gravity) | 50 |
We also make carbon fiber roller,according to your requirement.
Payment Terms
- T/T: 50% deposit in advance, balance to paid before shippment.
Shipment
- Shipment:Air Transport,Sea Carriage,Express,or as requested
- Express:TNT,UPS,DHL or according to your requested
Package
- Carbon Fiber Tube Package:Bubble Bag+Carton
| High Quality Guarantee
|
|
|
|
|
|
|
Company Introduction
Weihai Xinbo composite products Co.,Ltd is a professional composite products supplier which gathered a set of research,production and sales ,with the domestic first-class technology development and manufacturing capability of modern integrated enterprise. Our company relies on the technology strength of China Aerospace Research Institute, and gives full play to scientific research and professional technology advantages in the field of composite materials. We are engaged in carbon fiber, glass fiber fabric and high performance composite production development and application.
Our main products include carbon fiber tube, fiberglass tube, carbon fiber product, sheet /plate, snowboard, kayak paddle, idle roller and drive shaft for machinery, tool handle, airplane model tube, sailboat mast, highway tolling systems barrier arm, exhaust pipe, muffler pipe for automobile and motorcycle, automobile modified accessory, telescopic pole, antenna mast, etc.
Warm Tips:
If you want any quotation of our carbon fiber roller,pls kindly offer the following information to us.
- Product Material
- Required ID,OD,Length
- Surface Finish
- Order Quantity
- Application
- Also pls kindly give us the detailed information of your company.For example,company name,shipping address,telephone,website,and so on.
If you are interested in any of our products,please feel free to contact us.
