Home > Products > Touch screen kiosk > pc design Samsung touch panel pc digital signage i3/i5/i7 optional

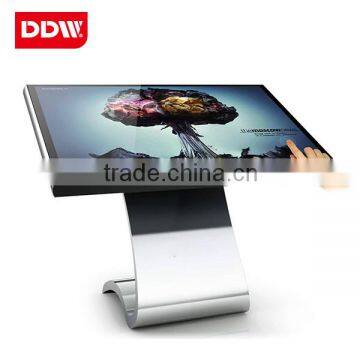

pc design Samsung touch panel pc digital signage i3/i5/i7 optional
- 6000 Set / Sets per Month
- Shenzhen Hongkong
- T/T L/C D/P D/A Credit Card
You May Like
-
Floor stand interactive PC advertising player 32"
-
42 inch floor standing all in one touch screen advertising kiosk interactive
-
32'' SAMSUNG LCD Panel Touch Screen PC Digital Signage Advertising Display
-
42 inch pc touch advertising display
-
46 inch touchscreen digital signage android
-
the most valuable touch screen kiosk
Product Details
| Place of Origin | Guangdong, China | Brand Name | DDW | |
| Model Number | DDW-AD4601TK | Type | TFT | |
| Application | Indoor | Panel Size | 46" pc digital signage | |
| Max Resolution | 1920x1080 | Viewing Angle | 178x178 | |
| Pixel Pitch | 0.7455x0.7455mm | Color | 8bits,16M | |
| Contrast Ratio | 3000:1(Typical) | Brightness | 700nits,1500nits, 2000nits | |
| Response Time | 5ms | Input Voltage | AC100~240V 50 /60 HZ |
Product Description
Specifications
1.Elegant iPhone design
2.Samsung / LG panel
3.Bulid-in Mini-Pc i3/i5/i7 optional
4.IR touch screen available
5.FCC/CE /RoHS certificates
The digital signage system has Server Content design and management, including scheduling and distribution
Digital signage system management. Players
Signagelink Digital Signage
Product Feature
- -Outer shell is made by extra quality metal material, which is painted by powder-spray craftwork, black color, floor standing metal case.
- -With a protection layer of ultra-thin, high light-penetrating steel-glass on the surface of the LCD screen.
- -Brands of LCD screen for Samsung or LG, A Class 335 standard, full new and factory original packing screen.
- - Adopts IR Touch Screen (11.2mm Thickness), it supports Single Dot Touch Type or Double Dot Touch Type. .
- It is optional for CF /SD/ USB slot; It is optional for HDMI /VGA /AV Port; It optional for Full HD Video 1080P output.
- Build-in High Quality speakers Stereo 2pcs x 5W; Support Safety Lock function.
- -Safely locking system function to avoid take way flash memory card and advertising playing content, also can be protected by input password.
- It is Optional for Origin Copyright English Version Professional Windows 7 Software system
- Build-in Mini-PC; It is optional for i3/i5/i7 system
Product Info
Panel Specification: | |
lcd kiosk: | Touch screen Technology |
Display area(mm)/mode: | 1209.6*680.4mm 16:9 |
Maximum resolution: | 1920*1080 FHD |
Display color: | 16.7M |
Pixel Pitch(mm): | 0.63(H)×0.63mm(V) |
Brightness (nits): | 500nits (700 nits is optional) |
Contrast: | 4000:1 |
Visual angle: | 178°/178° |
Response: | 6.5ms |
Touch screen: | IR Multi-Dots Touch screen |
PC Specification: | Mini-PC |
Main board: | HT3.0 Maximum: 4.8GT/s. |
CPU: | Intel Core I3-2100 dual core 3.10GHz processor. |
RAM: | DDR3 support dual channel DDR3 1600MHz RAM. |
HDD: | ATA Rev:2.5 500GB 7200rounds/s |
Graphics: | Intel HD Graphics Family |
Wifi model: | Yes |
Wired network: | Atheros AR9285 802.11b/g/n. |
LCD panel: | Original factory Grade A new panel |
Panel life: | above 50,000 hours |
Operating System: | Windows 7, Windows 8, Windows XP etc. |
The above PC configuration is for your reference, 1.86GHz,i5, i7 series and other configurations are also available to meet your standards,please inform us if needed. | |
Physical Specification: | |
Kiosk shell material: | 5mm anti-scratched tempered glass |
Color: | Silver/customized colors |
Fan: | 2X12V fans |
Audio/Speakers: | 2 x 5W Speakers |
Ports/Slots: | Power input | Power switch | PC switch | USB | LAN/HDMI/VGA/AV |
Cables: | Standard international power cable |
Power supply: | AC 110–240, 50-60Hz |
Operating temperature: | 0°C ~ +40°C |
Storage temperature: | -20°C ~ +60°C |
Humidity: | 0% ~ 80% |
Any problem,please feel free to contact with us.
Katie dong
Tel:+86-13670093586
Skype:ddwsales04
web: http://ddwlcd.en.china.cn
Contact Us
- Shenzhen DDW Technology Co., Ltd.
- Contact nameSteven Cheung Chat Now
- Phone86-755-23229716
- Address9/F,A1 building,3rd Industrial Park,Da Wang Shan,Shajing,Bao'an District, Shenzhen, Guangdong
