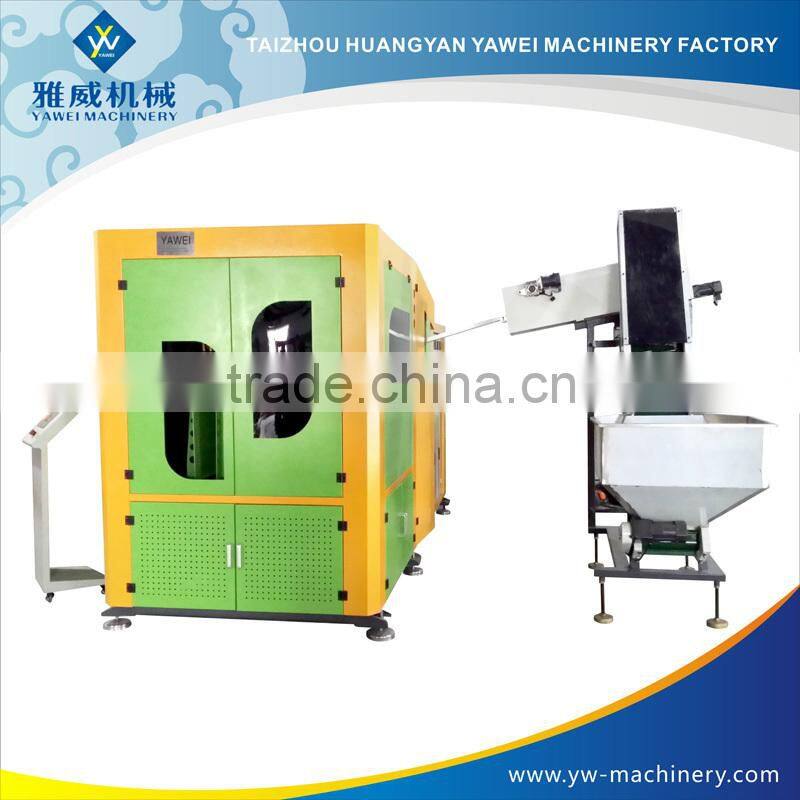

Zhejiang 6-cavity Pet Blow Molding Machine for Soap Bottles
- Ningbo/Shanghai
- Credit Card
You May Like
-
Fully Automatic PET Plastic Blowing Moulding Machine
-
Fully Autoamtic Pet Bottle Making Machines/blower Maker
-
4 Cavity Automatic Bottle Making Machine for Water Juice Carrying
-
Auto High Quality Pet Blow Molding Machine for Water Juicy Bottle Jar
-
Fully Automatic Plastic Bottle Making Machine for Pet Preforms
-
2015 Auto High Quality Bottle Making Machine for Shampoo
Product Details
| Condition | New | Application | Bottle | |
| Plastic Processed | PET | Blow Moulding Type | Stretch Blow Moulding | |
| Automatic | Yes | Place of Origin | Zhejiang, China | |
| Brand Name | YW | Model Number | YW-4SL | |
| Voltage | 220V 380V | Power(W) | 30KW | |
| Dimension(L*W*H) | 3.7x1.55x2.7m | Weight | 4600KG | |
| Certification | ISO CE | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
| Specification | YW-SL | |
| Cavity | 4 | |
| Out Put | BPH | 5500-6000 |
| Max container volume | L | 2 |
| Max neck diameter | mm | 48 |
| Max container diameter | mm | 115 |
| Max container height | mm | 325 |
| Heating power | KW | 30 |
| Operating low pressuer | Mpa | 0.3-0.8 |
| Blowing pressuer | Mpa | 3.8 |
| Temperatuer | ℃ | 10 |
| Machine dimension | M | 3.7×1.55×2.7 |
| Machine weight | Kg | 4600 |
| Conveyor dimension(L×W×H) | M | 1.5×0.85×2.2 |
| Conveyor weight | T | 0.5 |
Superior Advantages
Advantage | Feature |
Machine structure | Reasonable & Simple, as shown in the video(pls contact me for password, /v_show/id_XOTIzMDEyMzg0.html /v_show/id_XOTIzMDA3NDE2.html ) |
Oven | 1.Optimized oven structure efficiently maximize heat. 2.Continuous heating, no stop to wait for blowing. 3.Carbon fiber lamp tubes have much higher infrared penetration. |
Price | 50% cheaper compared with the traditional linear blow molding machine |
Productivity
| 1. For 18g 500ml water bottle: 5000-5500BPH in real stable production 2. For 24g 1000ml water bottle: 4500-4800BPH in real stable production 3. For 33g 1500ml water bottle: 4000-4300BPH in real stable production |
Power Consumption | 32 lamps, each lamp is 2KW For 500ml water bottle, average power consumption of our main machine is 30KW,which is only 50%-60% of traditional linear blow molding machine power consumption. |
Area Occupation | Main machine: 3.7x1.55x2.7m with 4.6T Conveyor: 1.5x0.85x2.25m with 0.5T |
Operation & Maintenance | Simple machine makes your staff easy to operate and maintain |

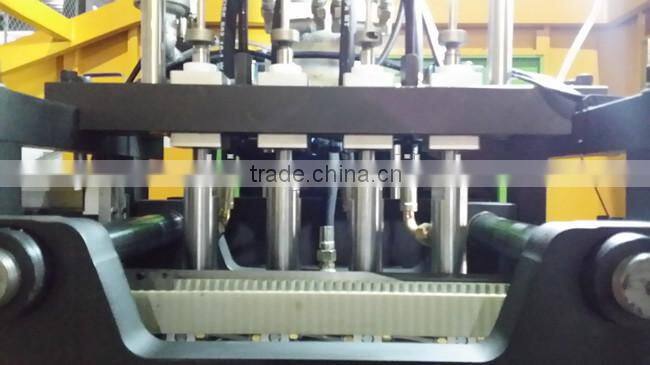

Machine Details
Yawei Machinery is specialized in making Zhejiang 6-cavity pet blow molding machine for soap bottles manufacturer , preform mould and cap mould. Our products have warranty and for machines, engineers are available to service after-sales overseas.
[1] Q: Are you a factory or trading company?
A: We are a factory.
[2] Q: Where is your factory located?
A: Our factory,near Shanghai & Ningbo port, is located in Huangyan,Taizhou,Zhejiang and 3 hours by train from Shanghai, 2 hours by air from Guangzhou.
[3] Q: How about quality control in your factory?
A: “ Quality is the key point, do what customers need”
Yawei machinery factory focuses on quality,quality control from beginning to the end. Every piece of goods is tested strictly before packing and delivery.
[4] Q: How about guarantee ?
A: One year guarantee.
[5] Q: Do you provide bottle blow mould and air compresor ?
A: Yes , we provide complete system and you will no need to find the suitable air compressor and chiller...etc..
[6] Q: What is the language of the PLC and touch panel?
A: Don’t worry, we will translate the language in English,Spanish or any other language, to make sure you will have an easy operation .
[7] Q: Can you help us with the shipment of Zhejiang 6-cavity pet blow molding machine for soap bottles manufacturer ?
A: Yes,we have got our special shipment and forwarder company with long time cooperation for Zhejiang 6-cavity pet blow molding machine for soap bottles manufacturer
