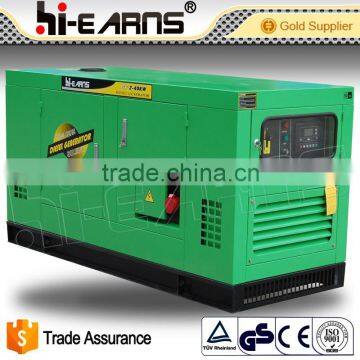

Water-cooled silent type 40KW diesel generator

Model	GF2-50KVA
Standby power(50HZ)	42KW/52KVA
Prime power(50HZ)	40KW/50KVA
Voltage(V)	220/380V
Phase	3
P.F(COSφ)	0.8
Standby Amps(A)	69
Engine type	DCEC Cummins 4BT3.9-G2, 4-stroke
Air intake system	turbo
Fuel system	AD type fuel pump
Fuel consumption(g/kw.h)	≤ 216
Cylinder arrangement	4 in line
Displacement	3.9L
Bore x Stroke	102 x 120(mm)
Compression Ratio	16.5:1
Rated RPM	1500rpm
Max.Standby Power at Rated RPM	65KW/88.4HP
Governor Type	Electronic
Max Water Temperature	104 degree celsius
Alternator Data
Number of Phase	3
Connecting Type	3 Phase and 4 Wires, "Y" type connecting
Number of Bearing	1
Power Factor	0.8 Lag
Protection Grade	IP23
Altitude	≤ 1000m
Exciter Type	Brushless, self-exciting
Insulation Class,Temperature Rise	H/H
Telephone Influence Factor(TIF)	<50
THF	<2%
Voltage Regulation, Steady State	≤±1%
Alternator Capacity	60KVA
Alternator Efficiencies	88.80%
Air cooling Flow	0.216m3/s
Overall Size	2.4x1.0x1.45(m)
Weight	1450kg

Packaging & Shipping

♦ From the engine to generator, we all use 7 layer corrugated carton packing, plywood pallet, Ensure a portable and safety transport!
