H13 High capacity HEPA filter 24x24x12
- Shenzhen
- T/T Credit Card
You May Like
Product Details
| Condition | New | Efficiency | >99.99% | |
| Construction | Box Filter | Filtration Grade | Hepa Filter | |
| Medium Material | Fiberglass | Porosity | 0.3um | |
| Place of Origin | Guangdong, China | Brand Name | zhisheng | |
| Model Number | ZS-YGX | Dimension(L*W*H) | 24x24x12 inch | |
| Weight | 11 kg | Certification | ISO 9001 | |
| Warranty | 3 months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
HEPA filter 24x24x12:1) hepa filter H13
2) Galvanized or aluminum frame
3) Efficiency:H13
4) Media:fiberglass or PP

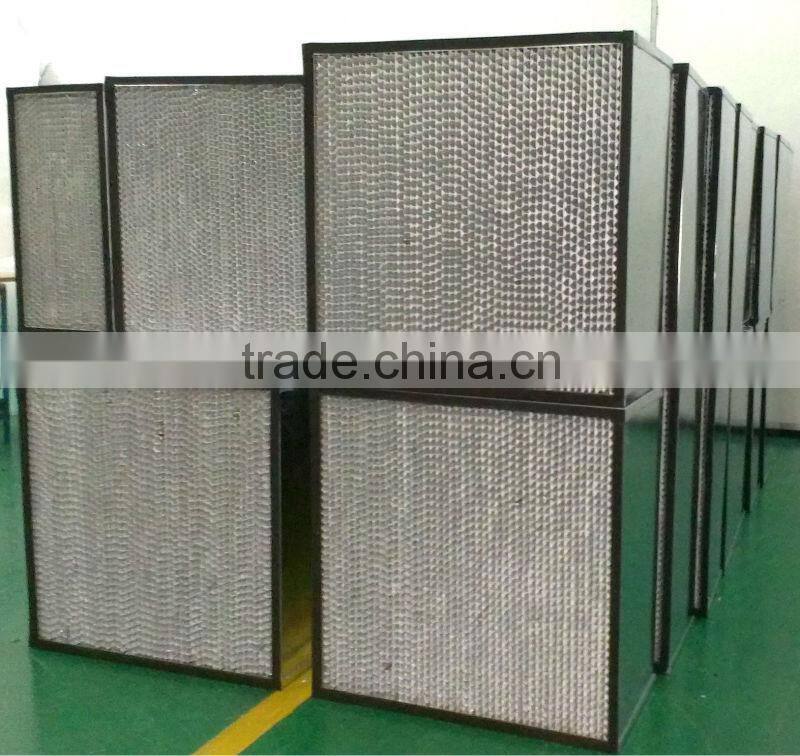

H13 High capacity HEPA filter for clean room
Deep-pleat HEPA filter for clean room
Description:

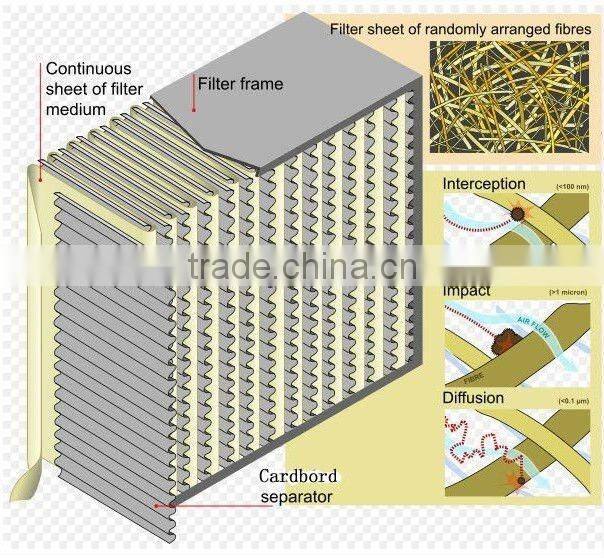

High capacity HEPA filter are mainly used to filtrate the suspended particles in the air with the diameter of 0.3um and below and used for the terminal filtration of all kinds of filtration system.
Applications:
HEPA filters are extensively used in the terminal filtration of the civil or industrial cleansing places in the industries such as electron, semiconductor, precision mechanism, pharmacy, hospital and food, etc., which require relatively high cleanliness factors. It is suitable to filtrate for clean room and clean factory workshop with dust particle diameter less then 0.3-0.5um.
Material and operating conditions:
External frame | Aluminum Alloy/GI/Stainless steel |
Sealant | Polyurethane |
Separator | Clapboard or aluminum foil |
Filter media | Fiberglass /HV fiberglass / PP |
Maximum operating temperature | 80°C |
Maximum operating humidity | 100% |
Efficiency | ≥99.99% |
Size and Specification:
| Model | Outside dimensions(mm) | Rated air flow (m/h) | Initial resistance (Pa) | Efficiency | |
| ZS-GB320 | 320x320x220 | 400 | ≤120pa(PP) ≤220pa (fiberglass) | F9-H14 (95%-99.995%) | |
| ZS-GB350 | 350x350x220 | 500 | |||
| ZS-GB484 | 484x484x220 | 1000 | |||
| ZS-GB610 | 610x610x150 | ||||
| ZS-GB630 | 630x630x220 | 1500 | |||
| ZS-GB726 | 726x484x220 | ||||
| ZS-GB915 | 915x610x150 | ||||
| ZS-GB968 | 968x484x220 | 2000 | |||
| ZS-GB1220 | 1220x610x150 | ||||
| ZS-GB1220 | 1220x630x220 | 3000 | |||
| ZS-YGX-484 | 484x484x220 | 1000 | |||
| ZS-YGX-295 | 295x595x292 | 1600 | |||
| ZS-YGX-595 | 595x595x292 | 3200 | |||
| ZS-YGX-610 | 610X610X292 | 3400 | |||
| ZS-YGX-610 | 610x610x150 | 1000 | |||
| ZS-YGX-630 | 630x630x220 | 1500 | |||
| ZS-YGX-1220 | 1220x610x150 | 2000 | |||
