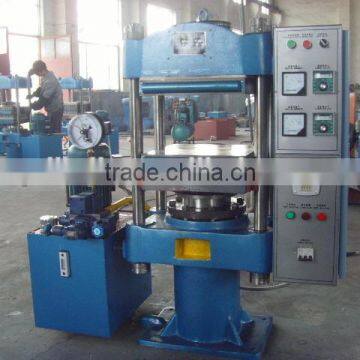

Hydraulic press for rubber vulcanization/four column rubber hydraulic press machine

Specifications

1. Superior Quality at Reasonable Price ;

2.One year warranty;

3.we are factory manufacture;

     XLB-series manual  electric heating  Silicone rubber "O" type circle oil pressure  plate vulcanizing machine

1.  Usage

   XLB series plate vulcanizing machine is mainly used to suppress all kinds of rubber products and thermosetting plastic products.Also can be used as common hydraulic machine.

2.   Structure feathures



    This XLB series plate vulcanizing machine is mainly consisted of main engine,hydraulic system and electronic control system.The oil cylinder will be fixed in the left side of the main engine alone in order to avoid the affection of the main engine's hot plate temperature.And that is conveninent for workers to operate with  capacious vision.Hot plate temperature is controlled by temperature control table for its high precision and good quality.The machine's main parts are according to the ministry of chemical industry's standard which are made of high quality materials and processed elaborately.

3.   Technical parameters(Models of XLB-series plate vulcanizing machine)

   Model	315T	250T	200T	160T	100T	50T	25T
   Total pressure(KN)	3150	2500	2000	1600	1000	500	250
   Max hydraulic pressure(KN)	16	20	16	16	16	16	16
   Hot plate size(mm)	1200*1200	1000*1000	900*900	7500*850	600*600	400*400	350*350
   Hot plate spacing(mm)	200	200	200	125	125	125	125
   Working layer	2	2	2	2	2	2	2
   Plunger stroke(mm)	500	500	500	500	300	250	250
   Hot plate unit area pressure(KN)	2.2	2.5	2.5	2.5	2.8	3.12	2.04
   Motor power(KW)	5.5	5.5	4	3	3	2.2	2.2
   Overall dimension(mm)	1685*1320*2550	1780*1150*3634	1800*1200*2650	3000*1600*2523	2070*1050*2230	640*1470*400	570*1450*350



4.  Packing &Shipping



   *Within 30days after receiving the deposit

   *Standard export wooden paching container or as your demand


5. Our service

   *The guarantee period is one year;

   *24 hours technical support;

   *Offer lifetime service and spare parts;

   *Technique training is free of charge.

6.   Our company

    Qingdao Bojia Machinery Manufacturing Co.,Ltd  is one professional machinery manufacturer.     Our company have one good and high quality design and manufacturing technology development group,often communicate with the customers and technology authority departments of rubber industry,constantly to improve and update our products which can meet the requirements of customers:Our company guarantee to provide you excellent pre-market sale and after sale service,timely technology information consulting,accessories and consumable parts supply etc,also can design and manufacture various non-standard products according to users requirements.

Our main products are:Conveying belt molding machine series:Batch off cooling machine series:Cushion cloth renovating machine series:open mixing mill series:Vulcanizing press series:Rubber cutting machine series:Rubber slitting machine series:Logitudinal cutting machine series:Conveyor belt machine series:Other rubber machines:Design and manufacturing of automatic production line.

 Bojia machinery company always pursue”quality first,customer first”principle to offer high-quality products and excellent service,welcome new and old customers to visit our company.
