4-20ma Magnetostrictive Fuel Oil Level Transmitter
US$ 150 - 850
/ Piece
1 Piece(Min. Order)
- shanghai or other
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
2015 Hot Sale Magnetostrictive Inear Level Transducer for Industry With Good Quality
-
GXCZ 2015 High Performance Magnetostrictive Level Transmitter
-
Magnetostrictive Fluid Level Sensors
-
Magnetostrictive Fuel Tank Level Transducers
-
Liquid Level Sensor Probe 4-20ma
-
Magnetostrictive Level Measurement Sensor
Product Details
| Place of Origin | Shaanxi, China | Brand Name | GX upport OEM | |
| Model Number | GXCZ series |
Product Description

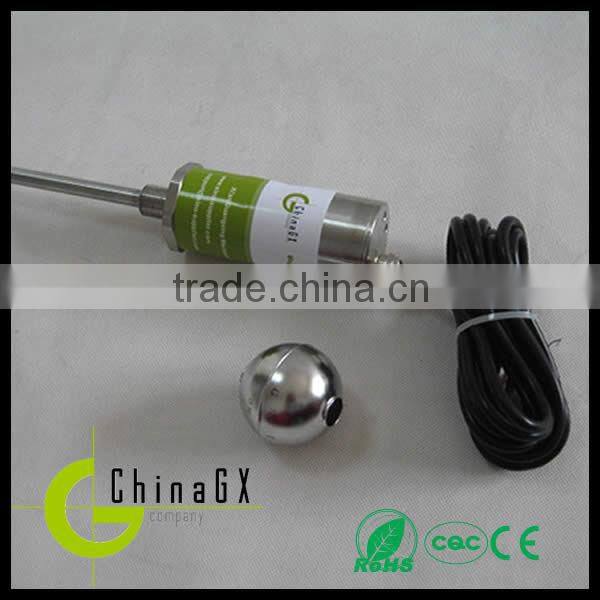

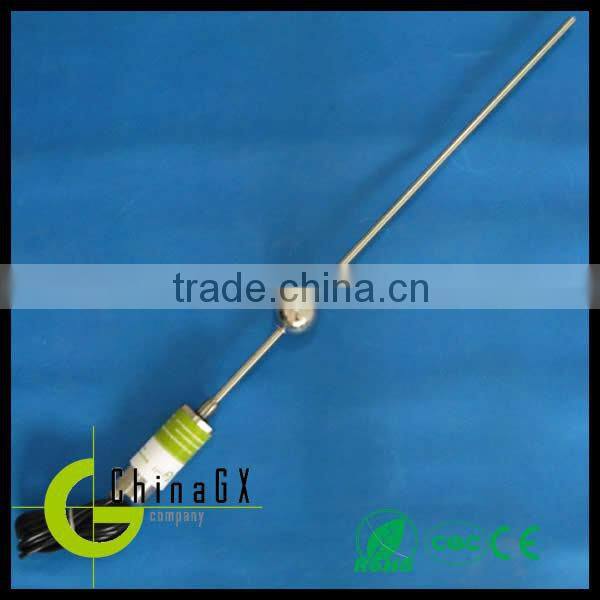

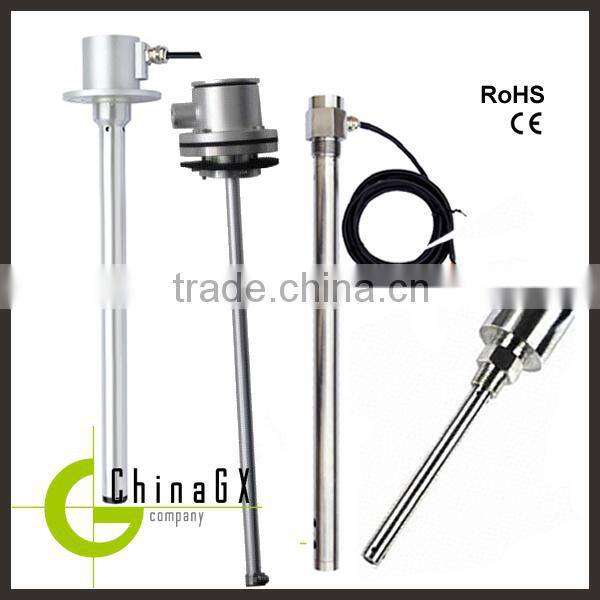

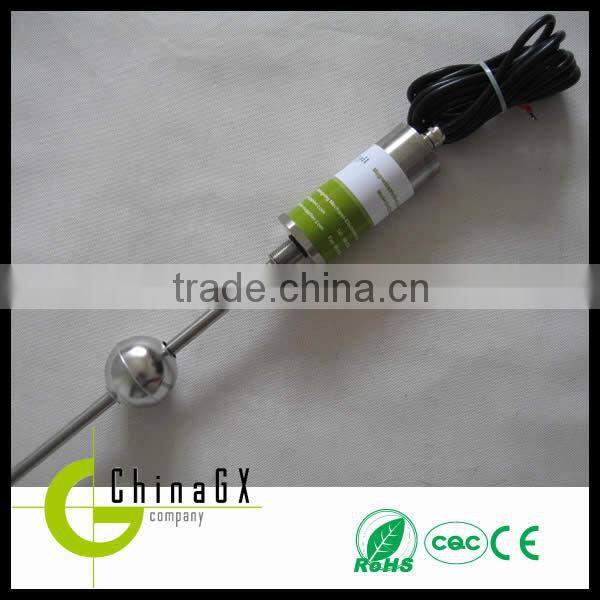

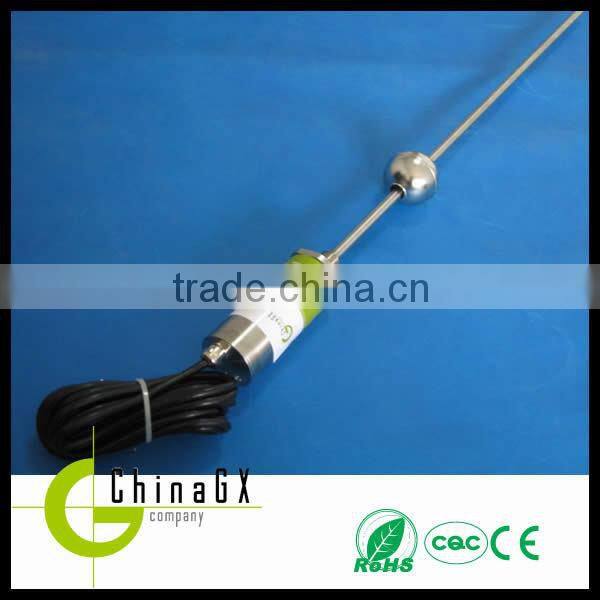

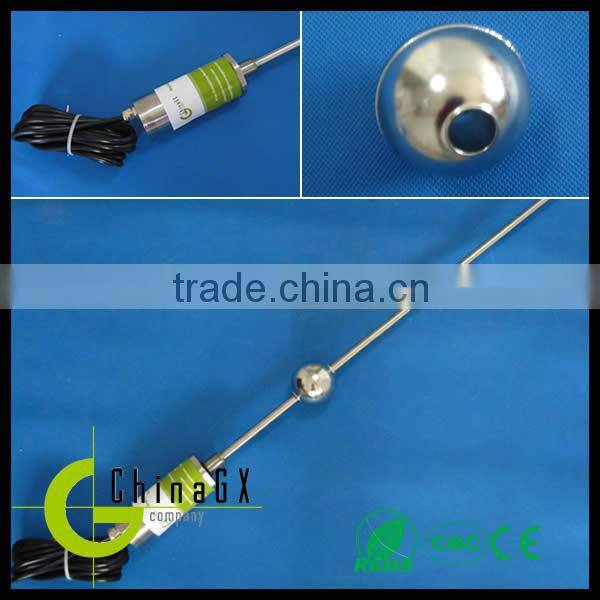

4-20ma magnetostrictive fuel oil level transmitter
Product Description
The magnetostrictive level sensor base on the magnetostrictive position sensing principle, Non-contact operation ensures product long service life, better adaptability to industrial environment; absolute output, restart don't need from zero; High accuracy, high stability, the best durability and repeatability.
Feature
Non-contact measurement, zero maintenance
High accuracy, high stability, high stability
Zero and Full scale field 100% adjustable
Explosion EXd IIBT5 Intrinsically safe EXia IICT6
OEM

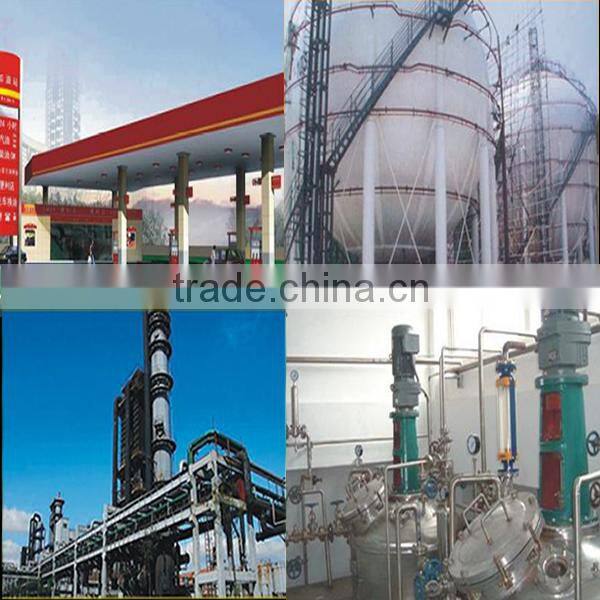

Application
Specification
| measuring range | 0~50……5000mm (optional) |
| output signal / operating voltage | 4 ~ 20mADC/24VDC±10% working |
| Electric current | 60~100mA |
| Operating temperature | -40 ~ +85°C(Spindle temperature -40 ~ + 120 °C) |
| Nonlinear Error | ±0.05%F.S; maximum error 150μm Range up to 300mm |
| Temperature Effect | +0.007%FS/°C |
| Zero and span adjustment range | 100% FS adjustable |
| Frequency response time | 0.25ms |
| Electrical lead way | Straight out of the cable (factory default length 3m); Terminals |
| Electrical Interface | M20×1.5 |
| Explosion-proof sign | Explosion EXdII BT5 (four-wire) |
| Intrinsically safe EXiaII CT6 (two-wire) | |
| Shell protection grade | IP65 |
| Pressure | Float :7MPa, spindle :35MPa |

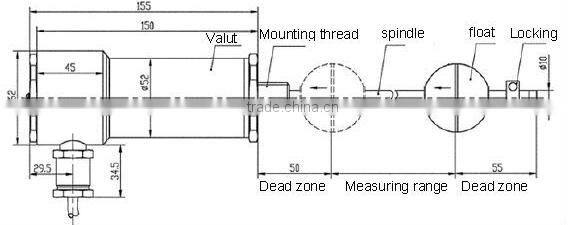

Dimension
Packaging & Shipping
Our Services
We supply high quality magnetostrictive level transducer, please let us know your requirements, we will try best to provide most suitable solution for you. Please feel free to send us an inquiry, we will reply you within 12 hours.
Company Information

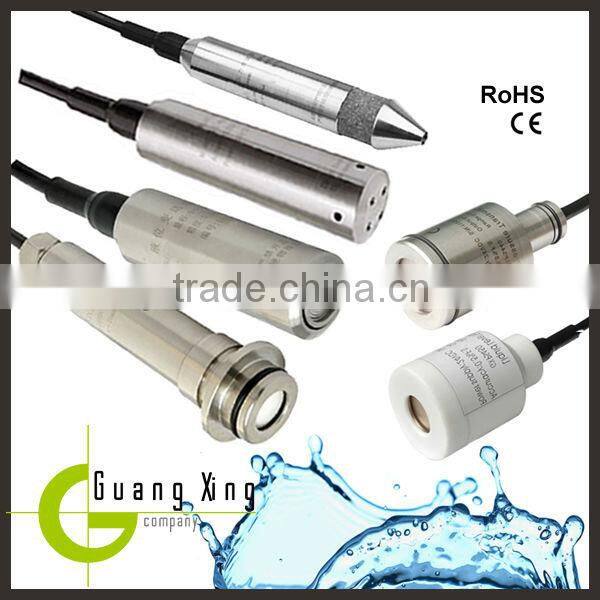

Related Products
