Home > Products > Level Measurement > GXPS400 Serial 4-20ma Liquid Water/ Oil Tank Level Sensor

GXPS400 Serial 4-20ma Liquid Water/ Oil Tank Level Sensor

FOB Price

US$ 99 - 390 / Piece

1 Piece(Min. Order)

Port Shanghai or other
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shaanxi, China	Brand Name	GX support OEM
Model Number	GXPS400	Usage	Level Sensor
Theory	Resistance Sensor	Output	Analog Sensor

Product Description

GXPS400 serial 4-20ma liquid water level sensor

1. Specification of GXPS400 serial 4-20ma liquid water level sensor :

Spec.	Numerical value			Remark
Pressure range	0~1……500mH2O			1mH2O≈9.81kPa
Overload pressure	1.5times Rated pressure
fracture pressure	3 times rated pressure
Accuracy	±0.25%F.S, ±0.5%F.S, ±1.0%F.S
Accuracy	±0.25%F.S, ±0.5%F.S, ±1.0%F.S
Stability	Typical value: 0.1%F.S Max.: 0.2% F.S/year
Operating Temperature	-40°C~85°C or -40 °C ~125 °C
compensation temperature	-10°C~70°C
medium compatibility	All Caustic Medium Compatible with 1Cr18Ni9Ti and 316L
electrical properties	2 line	3 line
Output signal	4~20mA	0~5V	0~10V
Power supplies	10~30Vdc	80~30Vdc/ac	11~30Vdc/ac	Vdc/ac
load resistance	(U-10)/0.02( Omega )	more than 100k Omega
insulation	more than 100M Omega @50V
Electrical Connections	waterproof fixed cable + Two rectangle circle+Sealing Rings+seal gum+ Pure glue protection grade : IP68
pressure interface	G1/4,input type
response time	10ms
Electric strength	500Vac@1 second
Graduate Certificate Programs	certificate of explosion-proof, CE
electromagnetic compatibility	electromagnetic radiation EN50081-1/-2, electromagnetic susceptibilty: EN50082-2
lightning protection	air conduction resistance 8000V,case, cable conduction

2. Feature of GXPS400 serial 4-20ma liquid water level sensor :

Diffused-Silicon oil filled core

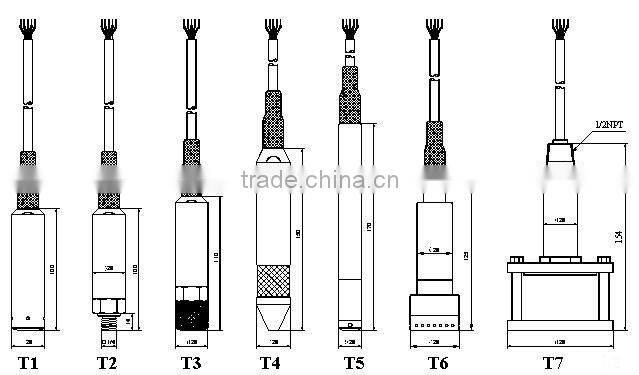

All kinds of structure to satisfy different users

Easy to use with submersible measuring

Multiple pressure range and signal output

Non-polar 2 wire system current output

Can be used in lightning protection products

Reinforcing rib of liquid cable

Intrinsically safe explosion proof, Isolation explosion proof, CE

3. Application of GXPS400 serial 4-20ma liquid water level sensor :

Deep well level measuring

Hydrologic measurement for river, lake, sea

Sewage treatment

Cloudy level measuring

Fluid reservoir level measuring

Water-saving irrigation

Circulating liquid consumption monitoring

Diversion works
