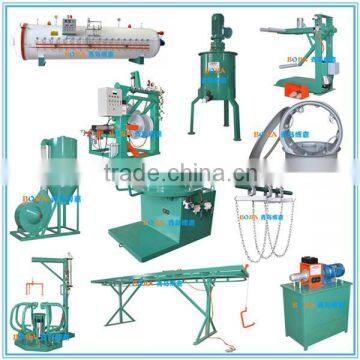

Cold Tire Retreading Machine

Name

Size(Diameter*length)

Quantity of tyre

1.5*1.5 M

four tyres

1.5*2M

six tyres

1.5*2.5M

eight tyres

1.5*3M

ten tyres

1.5*4M

twelve tyres

1.5*5M

sixteen tyres

Function

Tyre preheating for vulcanization with wind cooling cycle motor

Power

30kw-90kw

Heating way

Electricity heating, guiding oil heating, steam heating

Name

Inflatable tyre grinding machine

Model

FXM-C

Specifications

15",16",20",22.5"

Outside size

1.6*1.8*2.1M

Weight

1150KG

Technical parameter

1.grinding head motor power: 11KW

2.Rotation tyre matching power: 2.2kw

3.Grinding head of left and right matching power: 0.55kw

4.Grinding head of front and back matching power: 0.37kw

Function

1.For tyre rough surface radian grinding

2.Equipped with tyre shoulder side polishing and tyre explosion-proof function

Name

 rubber powder collecting tank

Model

FXM-B

Outline dimension

1.6*0.78*2.0M

Weight

220kg

Technical parameter

ventilation motor: 3kw

Function

1.For absorption of waste soo and smoke after grinding of tyre grinding machine

2.Large capacity, smoke dust collection, convenient collection, energy-saving and health

Name

Inflatable tread pressing machine

Model

FTT-B

Specification

15",16",20", 22.5"

Weight

850kg

Technical parameter

1.Press roller matching power: 0.55kw

2.Press wheel matching power: 0.37kg

Function

For carcass and tread tire inflation pressing with explosion-proof function

Name

Rim disassembling machine

Model

LJC-A

Specification

15",16",20", 22.5"

Outline size

1.5*1.3*0.8M

Weight

100KG

Function

For disassembling of rim

Name

Envelope disassembly machine

Model

LJJ-A

Specification

15",16",20",22.5"

Outline size

2.2*1.5*1.6M

Weight

350KG

Function

For envelope disassembly before and after tyre vulcanization, applicable to many kinds of tyre

Name

Buffer strip extruder

Model

LJJ-A

Specification

20kg/h

Outline size

1.0*0.5*0.9M

Weight

80KG

Power

1.5KW

Function

Necessary equipment for tyre retreading process

Name

Rubber cement mixing tank

Model

XJB-B

specification

100L

Outline size

0.8*0.85*1.5M

Weight

130kg

Technical parameter

Power : 1.5KW

Function

Manufacturing of glue adhesion for carcass and tread with uniformity character, equipped with explosion-proof motor which can prevent fire

Name

Multifunctional tire repairing machine

Model

TXT-A

Specification

15",16",20",22.5"

Outline size

1.2*1.0*1.5M

Weight

100KG

Technical parameter

Motor: 0.18kw

Function

Suitable for light grinding of tyre and equipping with lifting function during rubberizing
