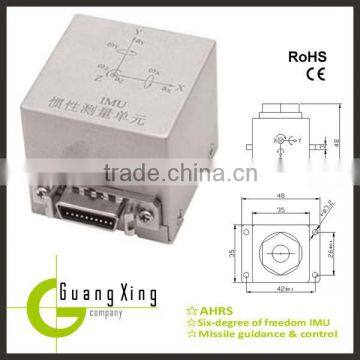

IMU-04 Inertial Measurement Unit
- 100 Set / Sets per Month
- Shanghai Xi'an or other
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Shaanxi, China | Brand Name | GXSENSOR | |
| Model Number | GXSENSOR-IMU | Usage | Other, Inertial Navigation | |
| Theory | Current Sensor | Output | Analog Sensor |
Product Description
IMU-04 Inertial Measurement Unit
1. Feature
1). Small volume,
2). light weight
3). low consumption
4). high reliability,
5). high stability.
2. Applications
1). stabilized platform
2). AHRS
3). Missile guidance and control,
4). Vehicle stability control,
5). antenna stabilization,
6). automobile electronic system etc.
3. Specifications
Function | Parameter | Remark |
Start time (s) | <1 |
|
Angular rate gyroscope |
|
|
Range:X axis (°/s) | ±1000 |
|
Y axis (°/s) | ±1000 |
|
Z axis (°/s) | ±1000 |
|
zero offset (°/s) | <0.5 |
|
Full temp. zero offset temp. drift (°/s) | <1.5 |
|
Non-linear(%) | <0.5 |
|
resolution (°/s) | <1.5 |
|
Bandwidth (Hz) | >50 |
|
Zero offset stability (°/s) | <0.1 |
|
Accelerometer |
| Below parameter just for the 15g range of accelerometer |
Range:X axis (g) | ±30 | Can choose between ±5 g~±50g due to the requests |
Y axis (g) | ±30 |
|
Z axis(g) | ±30 | |
Zero offset (g) | <0.02 | |
Full temp. zero offset temp. drift (g) | 0.01 |
|
Nonlinear (%) | <0.5 | >±1 g |
<3 | >±1 g | |
Resolution (mg) | <2 |
|
Bandwidth (Hz) | >50 |
|
Zero offset stability (mg) | <5 |
|
Interface feature |
|
|
Interface type | RS422 |
|
Data format | 8 bytes data, 1 byte start, 1 byte stop, non odd-even parity |
|
Baud rate | 115.2kbps |
|
Data update rate | 200Hz |
|
Environment characteristics |
|
|
Working temperature ( ) | -40~+70 |
|
Storage temp. ( ) | -55~+100 |
|
vibration (g) | 10 |
|
Impact (g) | 2000 | 2m half-sine pulse |
Electrical characteristics |
|
|
Input voltage(VDC) | +15~+30 |
|
Input current (mA) | <70 | @ +20 VDC |
Power (W) | <1.5 |
|
Physical Characteristics |
|
|
Dimension (mm) | 48 38 48 | Include flange installation |
Weight (g) | <200 |
|
4. Dimension
The IMU(Inertail Measurment Unit)is used to determine the full angle rates and acceleration in 3D space. The IMU has the characteristic of high stability, small size, low weight, instantaneous startup, etc. and can be used in the integrated navigation system.
Our company’s IMU products include IMU, IMU-04, IMU-07, and they can be used for the aircraft control, platform stability and vehicle navigation system.
