inflatable tread pressing machine tire retreading machine with CE and ISO

Name

Size(Diameter*length)

Quantity of tyre

Vulcanizing tank

1.5x9M

22 tyres

Function

Tyre preheating for vulcanization with wind cooling cycle motor

Power

120kw

Heating way

Electricity heating, guiding oil heating, steam heating

Main component parts

Low voltage electrical control system: Siemens;

Name

Inflatable tyre grinding machine

Model

FXM-C

Specifications

15",16",20",22.5"

Outside size

1.6x1.8x2.1M

Weight

1150KG

Technical parameter

(1)   Grinding head motor power: 11KW

(2)   Rotation tyre matching power: 2.2kw

(3)   Grinding head of left and right matching power: 0.55kw

(4)   Grinding head of front and back matching power: 0.37kw

Function

(1)   For tyre rough surface radian grinding

(2)   Equipped with tyre shoulder side polishing and tyre explosion-proof function

Main component parts

Low voltage electrical control system: Siemens;

Air cylinder: international brand Taiwan------ Airtac

Name

Rubber powder collecting tank

Model

FXM-B

Outline dimension

1.6x0.78x2.0M

Weight

220kg

Technical parameter

Ventilation motor: 3kw

Function

(1)   For absorption of waste soo and smoke after grinding of tyre grinding machine

(2)   Large capacity, smoke dust collection, convenient collection, energy-saving and health

Main component parts

Low voltage electrical control system: Siemens;

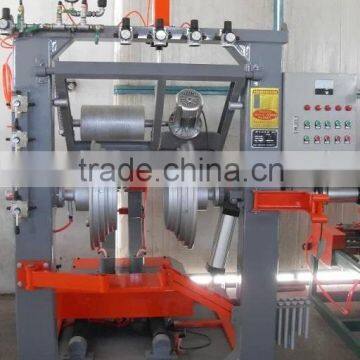

Name

 Inflatable tread pressing machine

Model

FTT-B

Specification

15",16",20", 22.5"

Weight

850kg

Technical parameter

(1)   Press roller matching power: 0.55kw

(2)   Press wheel matching power: 0.37kw

Function

For carcass and tread tire inflation pressing with explosion-proof function

Main component parts

(1)   Low voltage electrical control system: Siemens;

(2)   Air cylinder: international brand Taiwan-----Airtac

Name

Rim disassembling machine

Model

LJC-A

Specification

15",16",20", 22.5"

Outline size

1.5x1.3x0.8M

Weight

100KG

Function

For disassembling of rim

Main component parts

(1)Low voltage electrical control system: Siemens;

(2)Air cylinder: international brand Taiwan-----Airtac

Name

Envelope disassembly machine

Model

LJJ-A

Specification

15",16",20",22.5"

Outline size

2.2x1.5x1.6M

Weight

350KG

Function

For envelope disassembly before and after tyre vulcanization,  applicable to many kinds of tyre

Main component parts

(1)    Low voltage electrical control system: Siemens

(2)    Air cylinder: international brand Taiwan-----Airtac

Name

Buffer strip extruder

Model

LJJ-A

Specification

20kg/h

Outline size

1.0x0.5x0.9M

Weight

80KG

Power

1.5KW

Function

Necessary equipment for tyre retreading process

Main component parts

Low voltage electrical control system: Siemens

Name

Rubber cement mixing tank

Model

XJB-B

Specification

100L

Outline size

0.8x0.85x1.5M

Weight

130kg

Technical parameter

Power : 1.5KW

Function

Manufacturing of glue adhesion for carcass and   tread with uniformity character, equipped with explosion-proof motor which can prevent fire

Main component parts

Low voltage electrical control system: Siemens

Name

Multifunctional tire repairing machine

Model

TXT-A

Specification

15",16",20",22.5"

Outline size

1.2x1.0x1.5M

Weight

100KG

Technical parameter

Motor: 0.18kw

Function

Suitable for light grinding of tyre and equipping with lifting function during rubberizing

Main component parts

(1)       Low voltage electrical control system: Siemen

(2)       Air cylinder: international brand Taiwan-----Airtac

Name

Expansion tire of testing machine

Model

BJ-KX-20

Specification

Applicable section width of the tire tread: 100-350mm

Outline size

2x1.1x1.2M

Weight

220kg

Technical parameter

Power : 1.5KW

Function

Mainly used to detect and repair the inside of the tire, by foot pedal switch for controlling the rise and fall of the workbench, the expansion of the tire, convenient and practical.

Main component parts

Low voltage electrical control system: Siemens;
