Cargo Air Shower With High Speed Shutter Doors
- Shenzhen
- T/T Credit Card
You May Like
Product Details
| Condition | New | Place of Origin | Guangdong, China | |
| Brand Name | zhisheng | Model Number | CAS-2300T-2600-SD | |
| Voltage | 380V/50HZ/3PH, 380V/50Hz/3Ph | Power(W) | 4000W | |
| Dimension(L*W*H) | W2300xD2600xH2300MM | Weight | 850KG | |
| Certification | ISO 9001/CE/ROHS | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Cargo air shower with high speed shutter doors
External dimenison: W2300xD2600xH2300MM
Internal dimension: W1800xD2600xH2100MM
CE and ROHS Certificate
Description:
Clean room Air Shower is a kind of partial clean equipment with rather strong universality and is installed at the partition between the clean and non-clean rooms. Its used for the personnel or matters to shower before entering the clean area. After using it, the dust could effectively be reduced to enter the clean area and maintain the normal working status.
Features:
| Product type | Cargo Air shower for clean room |
| Material for casing | 1.2mm cold rolled steel with powder coated for outside, Stainles steel for inside |
| Material for doors | PVC curtain |
| Nozzles | Stainless steel |
| Door leaf | Single-leaf |
| Door type | High speed shutter doors |
| Blowing way | Three-side blowing |
| Control system | English intelligent control panel with human voice (If client requrie control by PLC, it is also ok) |
| Locks | Interlock |
| HEPA filter efficinecy: | H13 / H14 |
| Pre filter | G3 / G4 |
| Light | Philips brand |
| Photoelectric sensor | OMRON brand |
| Shower time | 0-99s adustable |
| Spurt wind speed | 22-25m/s above |
| Power supply | 380V/50HZ/3PH or 220V/50HZ/1PH |
| Safeguard | Leakage switch and thermal overload relay (Protect people from electric leakage) |
Other Standar size and specificaton:

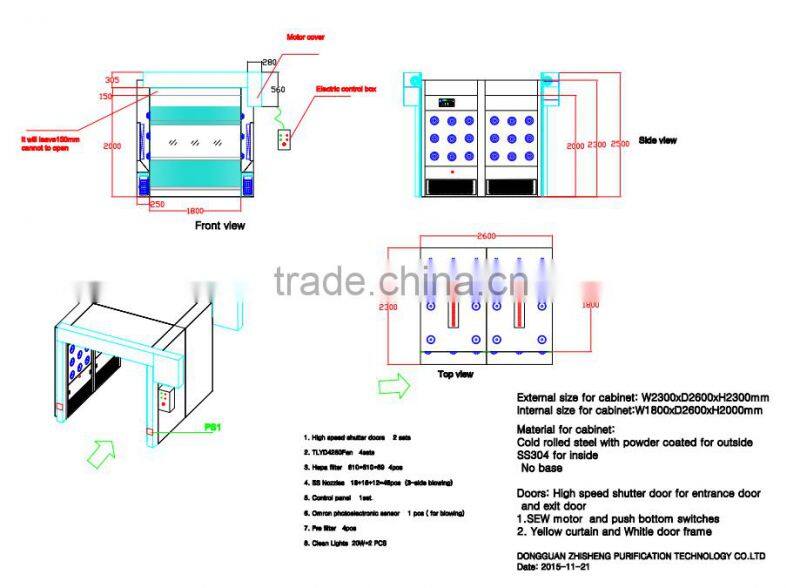

Drawing:
Air Shower Structure:
Details:
Lock Catch: It is easy for people to assemble and dissemble the panel inside for Maintainance.
Screw: It spends too much to assemble and dissemble the panel inside for maintainance.
Besides, it is easy to be damaged
Control Panel:
Cleanroom equipments,like air shower, FFU. It is one-year warranty.
Technician or enginner can go to Southeast Asian countries for guiding insallation of machines. Like Thailand, Vietnam, Philipines, Malaysia and so on.
We have CE and ROHS Certificate for air shower
