Home > Products > SMART ELECTRONIC CYLINDER > Door Lock Cylinder Electric
Door Lock Cylinder Electric
- Shenzhen
- T/T L/C D/P D/A Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | TOWE | |
| Model Number | RECC710S-60 |
Product Description
Specifications
Door Lock Cylinder Electric1.DIN18252 Standard
puter keys
3.60~120mm cylinder
4.high quality,good price
Specification
RECC710S-60 New Door Lock Cylinder Electric
1.DIN18252 Standard
puter keys
3.60~120mm cylinder
4.high quality,good price
Feature
RECC710S-60 New Door Lock Cylinder Electric
1. Good generalization: Easy to replace the tradional cylinders with intelligent one
2. High Security: the card can not be duplicated for the management and user card is unique
3. High independence: Various dimensions, surface treatments, handle shapes and key cards optionally available
4. High reliability: With low power cunsumption and long performace life
5. Good maneuverability: with the sounding and light indication at the power failture and has the low valtage worning function
6. According to customer request, can use the key card and mechanical key together to open the door, and the mechanical key can be customized as the KA or KD (Key alike or Key different)
Parameters
SN | Name | Technical Parameters |
1 | Working Power Supply | High performance 3.6V Li-SoCL2 Battery (ER14250 1/2 AA size) |
2 | Battery Life | Maximum to 30000 door open operation, can operation another 100 times after the low voltage warning |
3 | Read Range | Less than 5cm |
4 | Applicable Key Cards | Mifare Classic Cards |
5 | Support Customer Quantity | 63 |
6 | Working Temperature | -20 ~ +70°C |
7 | Working Humidity | -20% ~ +97% R.H. |
8 | Cylinder Dimension | 60mm~100mm |
9 | Handle Dimension | Inner handle 36.5mm(D) ×55mm(L) Outer handle 30mm(D) × 38mm(L) |
10 | Assembled Basis | DIN18252,EN1303 |
11 | Protection Grade | IP45 |

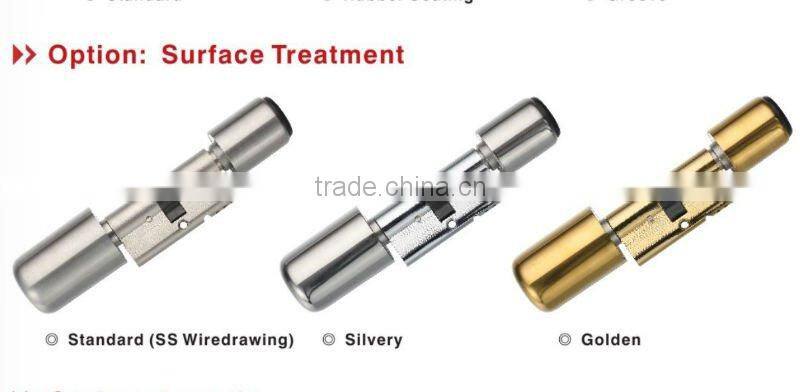

12 | Superficial Treatment | Stringy stainless steel |
