Home > Products > Flow Meter > Digital Oil Fuel Ultrasonic Flow Meter

Digital Oil Fuel Ultrasonic Flow Meter

FOB Price

US$ 80 - 200 / Piece

1 Piece(Min. Order)

Port Shanghai or other
Payment TermsT/T L/C D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shaanxi, China		Brand Name	GX support OEM
Model Number	GXUM2000

Product Description

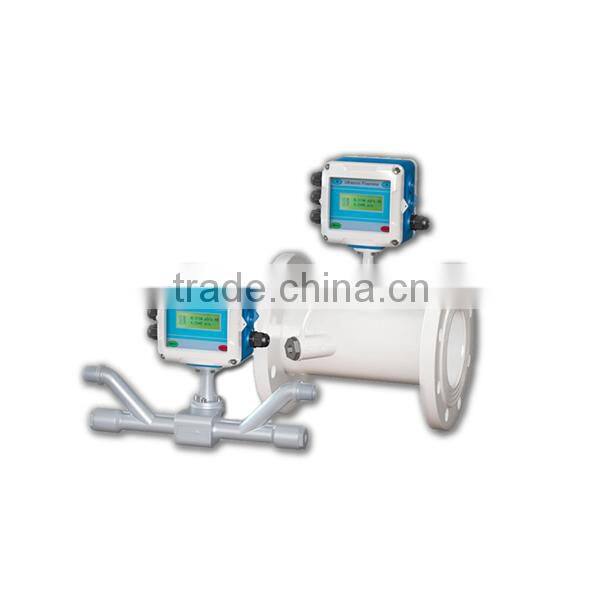

Digital oil fuel ultrasonic flow meter

GXUFM-2000 Series High Quality and Reliability Open Channel Flow Meter

Brief

Smart ultrasonic flow meter can be used to measure various kind of fluid in the application field of tap water, heating, water conservancy, metallurgy, chemical industry, machinery, energy indurstry. Both sensors and the host can be installed at the pipe. also can be used as calorimeter

Product Description

Product intruduction of fuel ultrasonic flow meter

GXUM2000 series flow meter usually is used to long-term measure at field. It's easy to use and easy to repairing without cut off the piple,without turn off the fluid.Both the sensor and the host can be installed on the pipes. The protect grade is Ip68, can be used as calorimeter, if the temperature sensor added

Features

Feature of flow meter

High flow accuracy

Up to 1 %
Suitable diameter
Choose different types of sensors, you can realize the diameters of DN15~DN6000mm tube measurement channel flow.
High reliability
Use low voltage.
Anti-interference is high
Use double-balanced signal to launch and receive circuit. It can resist inverter, television tower, high tension cable, etc.
Powerful function
1 channel is 4-20mA, as a flow sensor or quantity of heat sensor; 2 channel is OCT output, as a switch for flow/quantity of heat;3 channel is 4-20mA output, as a collector for data; 2 channel of 3 wires is PT100 signal output of resistors, as a watch for quantity of heat.
The transmittal is far, and it contact net quickly
RS485 support connect wireless net, contact the GPRS485 can realize wireless transmittal.

Specifications

Parameters of oil flow meter

Parts	Parameters in detail
Host part	Theory	Ultrasonic time gap
	Accuracy	±1%
	Option method	4-keyboard support magnetic
	Signal output	1 channel 4~20mA @ 0.1% current loop back, the maxim load resistor up to 1000 ohm
		1 channel OCT pulse output (default pulse width is 200ms, and can be modify between 6 to 1000ms)
		1 channel relay output (3A@220V)
	Signal input	3 channel 4-20mA current loop back @0.1% circuit used to collect Temp. Pressure and liquid level etc.
	Signal input	1 channel mV input use to pt100 for calorimeter
	Digital port	RS485 support Mod-bus protocol and support firmware update
Cable	Special cable for RS485 the range up to 1000m
Suit pipe	Pipe material	Steel, cast iron cement, copper, PVC, Aluminum, glass, etc
	Inner DN	15~6000mm
	Sensor position	It’s better the sensor fix at the position of at least 10D far away of upstream, or 5D far away of upstream, at least 20D far away from the pump outlet(D is the inner diameter of the pipe)
Suit flow	Media	Water, sea water, waste water, liquid alcohol, beer, gas, oil, etc
	Temperature	-30~160℃
	Turbidity	10000pm not so much baubles
	Flow speed	0~±10m/s
Environment	Temperature	Host: -20~60℃; Sensor: -30~160℃
Environment	Humidity	Host: 85%RH; Flow sensor: IP68, less than 2m under water
Power supply	DC8~36V or AC85~265V( optional)
Consumption	1.5W

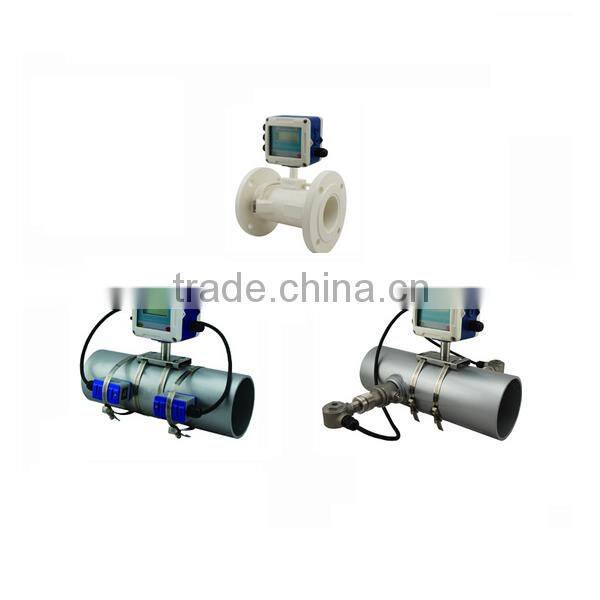

Installation type

Applications

Application field of digital flow meter

Water supply Heat supply Intelligent building Metallurgy Peroleum Powersupply

Our Services

Our Services

Sensor can be customized by your special request, We can supply technical consulting service for your user.
The quality principle: Quality is the best sales
Payment: We accept T/T, PayPal, Western Union, MoneyGram , Escrow
Shipping:
1. All parts will be shipped out within 1 - 3 working days after confirm the payment
2. DHL / FEDEX / UPS / EMS / TNT / China Post /Aramex
3. We are not responsible for force majeure accidents, delays or other issues, like the shipping service.

After-sales service
We can offer good technical support and good warranty for you after service as professional manufacturer.

Warranty: One year
During the warranty, if the goods after delivery are damaged with error caused only by itself quality problem, the goods can be returned for free repair and maintenance. however, if the goods is damaged with error caused by user’ s man-made and force majeure factor, we will be not responsible for free repair and maintenance.

Packaging & Shipping
