Home > Products > GASOLINE OUTBOARD ENGINE > 7GX-6.2Q 8HP 4-stroke MIHENG Gasoline Electric Outboard Engine(4HP-20HP)

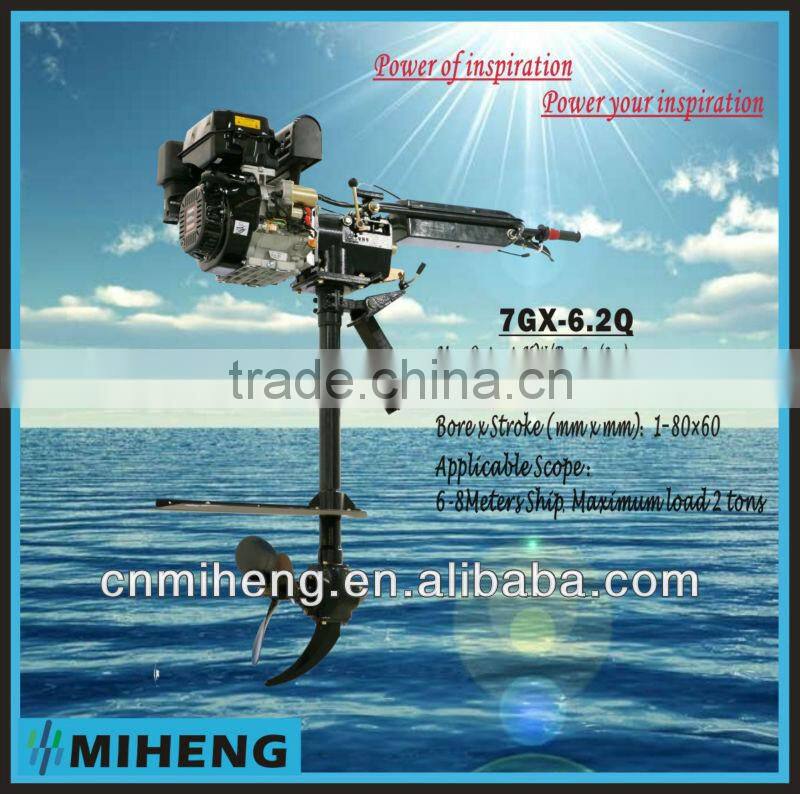

7GX-6.2Q 8HP 4-stroke MIHENG Gasoline Electric Outboard Engine(4HP-20HP)
Negotiable
/ Carton
1 Carton(Min. Order)
- CHONGQING
- T/T Money Gram Credit Card
You May Like
-
7GX-9.0Q 4-stroke MIHENG 12HP Gasoline Outboard Motor(4HP-20HP)
-
7GX-7.8Q 4-stroke MIHENG 10HP Diesel Outboard Motor(4HP-20HP)
-
7GX-6.2 MIHENG 9hp 4strokes Gasoline Outboard Engine
-
7GX-5.3Q 7hp 4strokes MIHENG Gasoline Outboard Engine
-
7GX-4Q MIHENG 5hp 4strokes Gasoline Outboard Engine
-
7GX-6.2Q 8HP 4-stroke MIHENG Gasoline Outboard Motor(4HP-20HP)
Product Details
| Condition | New | Engine | 4 Stroke | |
| Fuel Type | Gasoline | Cylinders | 1 | |
| Engine Position | Outboard | Dimensions (L x W x H) (mm) | 380*430*410mm |
Product Description
Direct Injection, Energy Efficient
Owner of 7 national-level IPR .
duct:
2.DEMO FIGURE
3.Technical Specifications
| MODELS | 7GX-6.2Q Gasoline outboard engine | |
| ENGINE TYPE | SINGLE CYLINDER, HORIZONTAL TYPE, FOUR STROKE, AIR COOLED, OHV | |
| Bore x Stroke (mm x mm) | 80×60mm×mm | |
| Displacement (L) | 0.302L | |
| Rated Speed of Output Shaft | 1560r/min | |
| Max.torque(N•m/rpm) | 18.5N.m/2500r/min | |
| Fuel Consumption(g/kW•h) | ≤395 | |
| Power | Rated Output KW/Ps | 6.2KW (8.4P) |
| Direction of Output Rotation | Anticlockwise (from the output side) | |
| Valve Clearance (mm) | Intake valve :0.1-0.15mm Exhaust valve: 0.15-0.20mm | |
| Starting Way | Recoil Start/Electric Start | |
| Fuel | Fuel Capacity(L) | 4.6 L |
| Mark | 93# | |
| Engine Lubrication | Method of Lubrication | Pressure Splash Compound |
| Lubrication Oil | SAE10W-30, Level CC above | |
| Lubrication Oil Capacity(L) | 0.95L | |
| Engine Size (LxWxH) (mm) | 380×430×410 | |
| Engine Net Weight (Kg) | ≤26Kg | |
| Machinery Net Weight (Kg) | ≤62Kg | |
| Speed of Impeller | 1560r/min | |
| Diameter of Impeller | 340mm | |
| Transmission Fluid | Middle Duty Industrial Gear Oil HL-20 | |
| Transmission Capacity | 3L | |
| Applicable Scope | 6-8Meters Ship,Maximum load 2 tons | |
4.Functions added
5.Product details
6.Modern workshop and new office.
7.Certificated
8.MIHENG outboard engine
9.Comparison between old and new type of outboard engines
10. Delivery
11.Made in china.
