Stainless Steel Configuration Diesel Outboard Engine for Fishing
- CHONGQING
- T/T Credit Card
You May Like
Product Details
| Condition | New | Engine | 4 Stroke | |
| Fuel Type | Diesel | Cylinders | 1 | |
| Engine Position | Outboard | Dimensions (L x W x H) (mm) | 418*465*495 |
Product Description
stainless steel configuration diesel outboard engine for fishing
duct:
2.DEMO FIGURE
3.Technical Specifications
| MODELS | 7GX-8.8C-AS Diesel outboard engine | ||
| Engine Type | SINGLE CYLINDER, VERTICAL TYPE, FOUR STROKE, AIR COOLED, DIRECT INJECTION | ||
| Bore x Stroke (mm x mm) | 92×75mm×mm | ||
| Displacement of Piston (L) | 0.456L | ||
| Rated Speed of Output Shaft | 3000/1500 | 3600/1800 | |
| Power | Max Output KW/Ps | 7.5(10.2) | 8.8(12) |
| Rated Output KW/Ps | 7(9.5) | 7.5(10.2) | |
| Direction of Output Rotation | Anticlockwise (from the output side) | ||
| Valve Clearance (mm) | 0.1-0.15(cold position) | ||
| Starting Way | Recoil Start/Electric Start | ||
| Fuel | Kgf/cm2(Mpa) | 220-230(21.6-22.6) | |
| Fuel Supply Advance Angle | 200±10 | ||
| Fuel Capacity(L) | 5.5 | ||
| Mark | NO.0(Summer)/ No.-10(Winter) | ||
| Engine Lubrication | Method of Lubrication | Pressure Splash Compound | |
| Lubrication Oil | SAE10W-30, Level CC above | ||
| Lubrication Oil Capacity(L) | 1.65L | ||
| Engine Size (LxWxH) (mm) | 418×465×495 | ||
| Engine Net Weight (Kg) | ≤48Kg | ||
| Machinery Net Weight (Kg) | ≤84Kg | ||
| Speed of Impeller | >1400r/min | ||
| Diameter of Impeller | 340mm | ||
| Transmission Fluid | Middle Duty Industrial Gear Oil HL-20 | ||
| Transmission Capacity | 3L | ||
| Applicable Scope | 7-13 Meters Ship,Maximum load 4 tons | ||

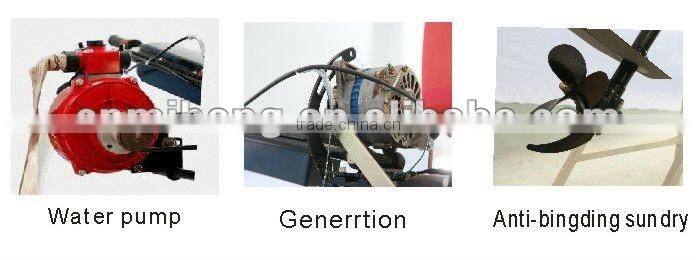

4.Functions added

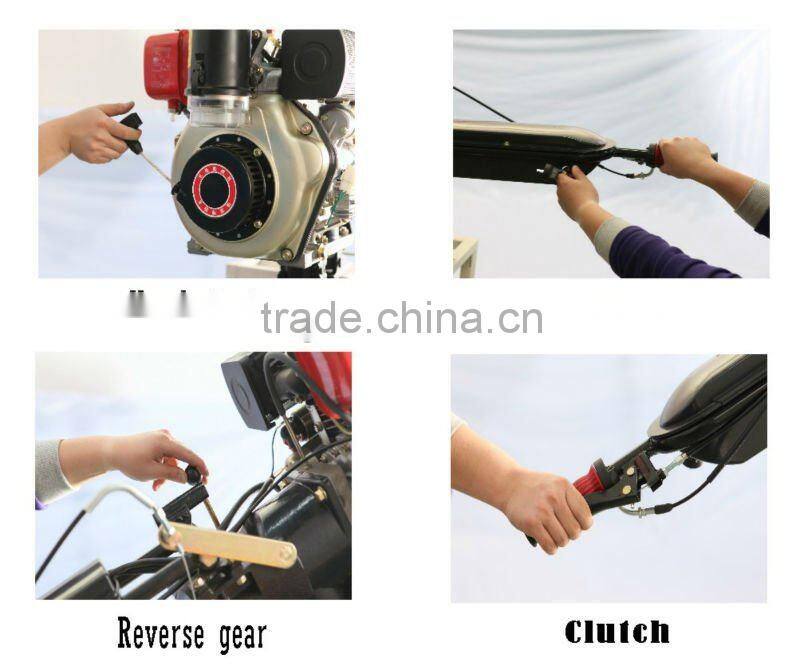

5.Product details
6.Modern workshop and new office.
7.Certificated
8.MIHENG outboard engine
9.Comparison between old and new type of outboard engines
10. Delivery
11.Made in china.
Q: Why choose MiHeng Outboard Engine?
No second company have same products with us, we specialized in fishing boats.
Products quality can be guaranteed.
We have certificates such as CE, EU, GS, EPA, CARB, CSA, UL, ROHS, ISO9001:2008 etc.
Are you the factory or trading company?
We are the manufacturer and exporter.
Q: Can we visit your factory?
A: Certainly. Welcome your visit.
Are all your products with 4-stroke?
Yes,at present, we all have 4-stroke outboard engines.
What's warranty period?
1 year for non-commerce users and 3 months for commerce users.
Can you supply spare parts?
Yes, as we are the original manufacturer.
Have you tested each piece before delivery?
Yes. At least 1 hour for each pc.
Q: Transportation?
Port of loading: Chongqing port / Shanghai / Shenzhen.
Shipping Services: as customers’ requirements, by sea / air /DHL etc.
Q: Do you have minimum order requirements?
A: No, according to client’s need.
Q: How to ensure the cargo quality?
A: We will provide bulk sample before shipping. They can represent the cargo quality
"Quality first, Client uppermost, Satisfaction of client's need" is our aim.
We look forward to serving you.
