TDXE4466S Touch Screen Automatic Curtain Switch/home Automation

paper box

Specifications

Features:

l           Replace conventional switches , replacing mechanical buttons with touch screen , longer life.

l           LED backlight touch buttons for switch control,address code of lights is clear to see.

l           Assorted many colors available so that to personalized the product.Gorgeously appearance is right down your decoration.

l           The words displayed on the panel could be change according to customer’s require.

l           Bidirectional communication by power line in high speed with the feedback function

l           Can be installed in any 86 -style junction box , socket panel ; ultra-thin design .Dimensions : 86X86X39mm

l           Simple setup, six seconds to complete the study; equipped with powerful noise suppression circuit.

l           Touch switch control Fluorescent Lamp respond all ON & all OFF;touch switch control appliance only respond all OFF.

Technical Specifications:

l           Rated voltage 220VAC ± 10%, 50Hz ;equipment load ≤ 1000W

l           static power ≤0.5W  ;ambient temperature: -10~50°C

l            Two-way communication up time ≤ 2s

Usage: You can control light or appliance  through the following control methods after address setup.

1.After connected to the wires, to realize local control.

(1). Press the " ON " button :the automatic curtain motor will open. the LED indicator of “ON ” is displayed as blue . The LED indicator of the curtain name also displayed as blue.After 10 second,all the LED indicator will go out.

(2) Press the " OFF " button :the automatic curtain motor will close. the LED indicator of “OFF ” is displayed as red . The LED indicator of the curtain name also displayed as red.After 10 second,all the LED indicator will go out.

2. Any high-speed bidirectional power line controller can control the switch, such as : wireless remote control, wall centralized control,telephone controller or intelligent control center etc.

Project Installation:

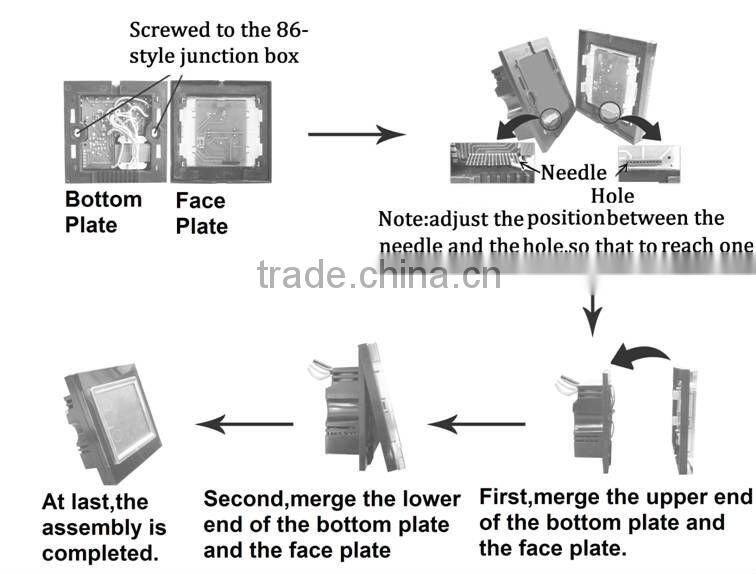

Connect and install it by the professional persons as the wiring diagram. Avoid injury to people and products.

l           Cut off the power before installation ; according to the label for wiring module.

l           Touch switch’s "L"connects with Live wire.

Touch switch’s "N" connects with Neutral wire

Touch switch’s “L2” connect with the motor forward

Touch switch’s “L3” connect with the motor reverse

Touch switch’s "N" also connect with Neutral wire of the automatic motor

We suggest that you’d better choose Taiyito automatic motor work together with the touch screen curtain switch.
