point light source stair light

step lights Product details:

This aluminum alloy LED step lights is for independent research and development design,Widely used in: Theater, KTV, clubs, high-end exhibition hall, etc.
This product combines aluminum profile with LED lights.
Aluminum profile uses national standard 6063 senior profile, with an average weight of more than 1KG per meter, the thinnest 2.0mm thick,super load-bearing capacity.
LED lights voltage is 12V, the color can be varied choice: red, blue, yellow, green, etc.,it is energy saving,the life is up to 5-10 million hours.
The lamp tube, plug and the other parts are made of environment-friendly PVC plastic profile, which can bear high temperature and low temperature.
The overall design of the product is beautiful and dignified, color collocation is reasonable, and visual effects is good.
Installation, after sales is simple and fast,quality guarantee period is two years.
This product has passed domestic and international certification, is assured selection of High grade places and various types of projects.

Details of high and low pressure bar and carpet pressure bar

Details of passage lamp

Factory strength display

corporate image

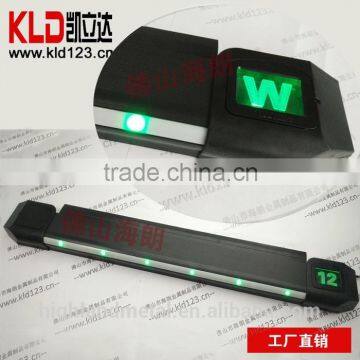

Step lights
Step lights contain profile, lights, plugs, number plate, high and low pressure bar and so on. The price is calculated by meter.
After receiving order from customer,we will help customer cut, complete plugging head, profiles, light bar, a number plate and then send to customer,and then remotely guide customer how to install(Of course, after we help customer cut and complete accessories, the installation is very simple)

The products are taken in kind.due to the difference of computer's resolution and shooting light,there may be a slight color difference.If you can not receive the color difference, please take care.you can let Customer service staff send you a sample.after you accept the sample,you can order.
Samples include: about 50CM long aluminum step lights, left plug and right plug, high and low pressure bar and passage lights.


1. Product parameters:
(1)Steps use thick aluminum profile,Accessories are made of high-strength engineering PVC material(UV protection).we produce two type products,namely Point luminescence product and line luminescence product.our Products have non-slip and noise reduction features.
(2)LED protection circuit design, aluminum substrate with high heat dissipation performance,long service life.
(3)A variety of colors (blue, green, orange), brightness 100LM
(4)LED type 3528
(5)Working environment temperature -20℃-150℃
(6)Power supply for 300W/50W
(7) Input voltage AC220V, DC24V
(8)Maximum power consumption 5V/12V
(9)Products include: aluminum alloy profiles, lights, power, plug, number plate.
(10)Products for indoor and outdoor decoration, exhibition halls, cinemas, KTV, clubs, etc


2. Multi-color selection
red

yellow
blue
green
(1)LED color light is made of red,yellow, blue, green four color imported LED chips,It can be made into a variety of monochrome.It is a new generation of green decorative lights with characteristics of low power consumption, long service life, energy saving, pollution-free.All screws are made of sturdy corrosion-resistant stainless steel.
(2)When customer orders,Please Specify color.
(3)All materials prices are ex-factory price, excluding freight and taxes.If you need on-site installation, technical guidance,you have to pay travel expenses and time charge.

3. note
(1) Special wear-resistant material is used as the main duct can be cut and installed according to the actual size of the theater steps.The lateral section of the main pedal has certain space,can effectively insert carpet of the theater steps.The front end of the main body is an arc structure,can insert the vertical part of carpet of the theater steps.
(2)At the junction of the upper end of the front end of the main steps has a rectangular groove which is upward and onward and has a rectangular pipe interconnecting the lamp and the lamp fixing structure.
(3)tread surface of main steps is non-slip rubber with double-sided tape,easy to replace and repair.
(4)The notch direction of the rectangular groove and step horizontal surface has a 45 degree angle
(5)Emitting direction of footlights and step horizontal surface has 35-65 degree angle.
(6)12V safety and low voltage power supply is used in the light emitting of the step lights.
(7)Step lights use energy saving, environmental protection, durable LED lamps.service life is 50,000---8000 hours.
(8)Step light is not limited by the length of the steps.it can be connected via a joint between two LED according to the actual size of the step.when LED is too long, it can be cut.
(9)base width of High and low pressure bar is 30.8mm,Upper cover width is 33mm.In one side there is a slope whose height is 11mm, the upper end of the slope is in a plane with the PVC in the step.On the other side, the 12.6mm's space is easy to insert into the carpet.the base is provided with two grooves,a groove is used for fixing the base screw, and the other groove is used for placing the power cord.
(10)The channel lamp is installed in the channel at the auditorium for safety instructions to facilitate the entry of spectators.
(11)Channel lamp base width is 33mm,the width of upper cover plate is 35mm.channel lamp base is installed on the edge of baseboard,On one side,it contacts directly with one side of the baseboard.on the other side,the 12.6mm's space is easy to insert into the channel carpet.there are three grooves in the base,two grooves on the side are used for fixing screws,and the middle groove is used for the pavement of channel LED.
(12)Because our company sells customized products,it will take a certain amount of time to make.Please communicate with our customer service staff to determine delivery time.
