UV ink Curing Machine

Specifications

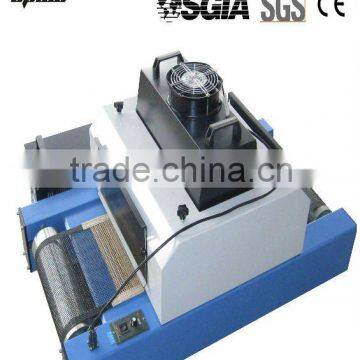

Flat UV Curing Machine

Application:

This is one kind of UV Curing Equipment.

It is widely used in the UV paint surface coating of mobile phone shell, membrane switch, and plastic shell of electronic products.

It is also used in Curing electronic components, liquid crystal slice, terminal gum, mobile phone assembly gum, plastic assembly gum and LCD; it has a small volume and light weight, craft and move conveniently.

Main Features:

1. High-strength condenser-type reflective lampshade.

2. Independent UV lights source system, working conditions can be indicated, cumulative lights source timer, side lights source observation window

3. Teflon conveyor belt, variable frequency motor drive, inverter or electronic stepless inverter control speed.

4. Effective and reliable cooling system, flowing air adjust hole size

 Technical parameters

(1)Overall Size (L*W*H): 1020*660*557mm

(2)The length of feeding material: 250 mm

(3)The length of discharging material: 270mm

(4)The width of Teflon: 300mm

(5)The material of mesh belt: Teflon

(6)The height of feeding material: 80±10mm

(7)The height of feeding material hole: 10~120mm

(8)Wattage of Tube: 2KW/piece, the shinning height of lamp tube can be adjusted by manual

(9)The shinning width of light tube: 300mm

(10)The shinning width of light tube: 300mm

(11)Exhaust Fan: 38W,2set

(12)Wavelength:   365nm

(13)Stable Time:     about 3 minutes

(14)Lifetime:  1000hours, (we can promise 800 hours)

(15)Transmission Motor: 25W/set

(16)Transmission Speed: 0-12m/min, the transmission speed can be adjusted stepless;

(17)The transmission way: chain

(18)The way of Regulating Speed: electronic speed regulation

(19)Power: 220V

(20)Net Weight: 65kg

(21)Gross Weight: 70kg;

OEM & ODM:

With strong belief, continuous efforts and many years’ experience in manufacturing machinery, Epole will create every set of machine with heart and provide excellent service for our customers.

Your enquiry is always welcome!
