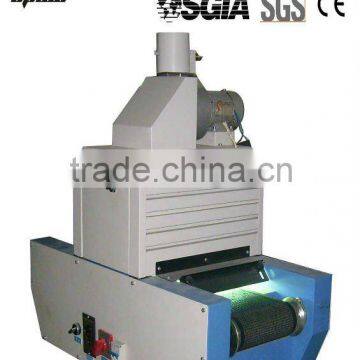

Desk-type UV Curing Machine

Specifications

Flat UV Curing Machine

Application:

Ultraviolet(UV)ink curing, spot-varnished, colorful, frosted, wrinkles, refraction and other UV ink curing, it can adjust and control independently for the level of light source according to clients' craft, and curing and drying for customized a variety of offset and spray drying curing lines.

Main Features:

1. High-strength condenser-type reflective lampshade.

2. Independent UV lights source system, working conditions can be indicated, cumulative lights source timer, side lights source observation window

3. Teflon conveyor belt, variable frequency motor drive, inverter or electronic stepless inverter control speed.

4. Effective and reliable cooling system, flowing air adjust hole size

Machine Parameters

1.Power:Single Phase220V 50Hz
2.The height of feeding material:30mm
3.The length of feeding and discharging material:170/170mm
4.Overall Size(LxWxH):800mmx430mmx638mm
5.Transmission belt:ultraviolet rays  Teflon
6.The Width of Teflon:200mm
7.Tube:2KWx1piece
8.Wavelength of Tube:65mm
9.The length of Tube:300mm
10.The shine length of tube:200mm
11.Transmission Motor:Electron Regulate Speed 15w
12.Transmission Style:Chain Transmission
13.Cooling Motor:40Wx1set  220V
14.Ballast Resistor:2.0KWx1set
15.Decoration Style:injection
16.Rubber Foot Margin:Four piece
17.Panel:Superior Cold Plate
18.The lifetime of Tube:It can achieve 800 hours if you use it for 24 hours continuously all day


 OEM & ODM:

With strong belief, continuous efforts and many years’ experience in manufacturing machinery, Epole will create every set of machine with heart and provide excellent service for our customers.

Your enquiry is always welcome!
