automatic ink mixer

Specifications

 used widely in the ink factory for mixing, suits for 0.5 litters to 20 litters drum.
It turns 360 degree revolution and 360 degree rotating, just like an earth.
It is totally automatic: when you put the drum inside the machine, and press the time key to set the running time, and press the can key, it will automatically close to clamp the drum.
When it is tight enough, it will starting to work.
When time is due, it will stop and automatically open the clamping plates to loosen the drum.

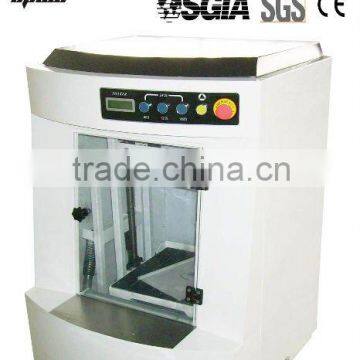

YB-205 rotating mixer:
1. Technical data:
1) Applicable range: 0.5-20 L ( paint in drum );
2) Height of the drum: 7-- 43cm, diameter of the drum: 7--38cm;
3) Revolution speed: 60 till 200r/min;
4) Working power: 220V 50/60HZ, power supply:

 5) Net weight: 180kg, gross weight: 210kg;
6) Case size: 950 (H) x 820 (W) x 750 (D) mm;
7) Packing size: 1170 (H) x 900 (W) x 810 (D) mm;
2. Features:
1) Start self-checking program automatically before operation. In case of any abnormality, the controller will activate alarm through digital display and buzzer will sound.
2) Digital display will show the actual time set and time used, so that the operation may have exact mixing time idea for better result.
3) Easy moving or fixing of interior case support.
4) Automatic identifying size of the drum to offer adequate clamping power and rotating speed.
5) Automatic clamping and open setting, revolution and rotation may start synchronously during paint mixing.

6) Multi-grade intelligent timing inverter, adequate speed control ensures stable operation; Stop automatically when the door is opened due to excellent safety and features.
