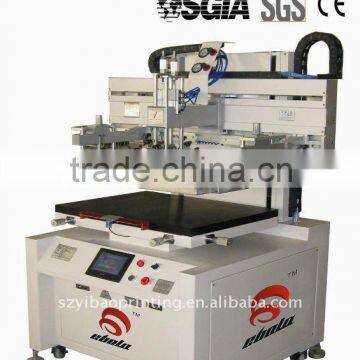

SMT Solder Paste Screen Printer/Solder Paste Printer

Specifications

SMT Solder Paste Screen Printing Machine/Solder Paste Printer

Application of SMT Solder Paste Screen Printer:

FCB flexible & steel circuit board, SMT solders paste, IMD, touch panel,

Mobile phone lens, electric products, precision scutcheon, appliqué,

advertising decoration and flat screen printing of other high precision products.

Main Features of SMT Solder Paste Screen Printer:

(1)Vertical Structure, dual electro motion, PLC programmable control, human-computer interface operation panel.

(2)The screen printing plate lift up and down, the machine head move front and back.

(3)Cast Aluminum parts: Printing Beam, Sliding Sleeve, Machine nose, Screen Printing Plate Arm.

(4)Variable frequency motor drive printing knife rest, quadrate linear precision guide rail, adjusts the speed and stroke independently.

(5)Lift Reduction Gears made in Taiwan drive screen printing plate lift up and down, move stably.

(6)There are high accurate grinding hardness platform and suction hole on it; It is equipped with precision adjusting handle and accurate chromatography.

(7)Sino-foreign joint venture Vacuum aspirator pump, powerful vacuum absorption can guarantee the precise multi-color chromatography.

(8)There are three printing models (such as manual model, semi-auto model, and full-auto model) ,Printing time can be controlled by digit(1-9seconds);

(9)Independent nose lifting device makes it easy to clean, load and unload screen printing plate, ink-return blade and squeegee.

(10)It is equipped with linear slide block around screen printing arm lock and screen space regulating device, adjust conveniently.

(11)The angle of printing and ink-return can be adjusted. It is equipped with pneumatic synchronization snap-off device.

Technical Parameters of SMT Solder Paste Screen Printer:

Printing Sample Show of SMT Solder Paste Screen Printer:
