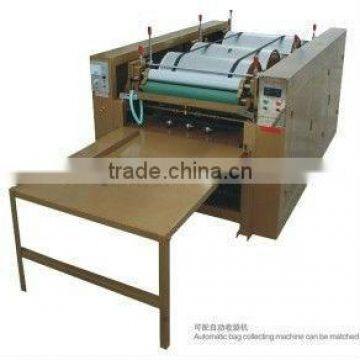

handbag printing machine

Specifications

This machine is used for printing letters, figures and trademark on plastic woven bags with 2 - 5color register. The unit can count automatically and achieve fine tune of color register, photoelectric technologies are applied to automatic printing.

Feature:
1.Meter counter equipped with pre-alarming bell.
2.1500-3500p/h, step less governor.
3. Imported PVC Transmission belt, automatic positioning
4. Printing roller can be automatically tracing and separating
5. Oil leaking device can be replaced freely, oil-ink roller and offset can be separated and harmonized
6. Transferring oil-ink by roller, enhancing polished light for printing, saving oil-ink
7. Rear transmission can be delayed with the function of airing
8. High precision, the color overprint
Main technical parameters:

XK-870 type suitable to PP woven and non woven bag
Motor power: 1.5kw ( AC)
Plate making thickness: 4-5mm
Working members: 3 persons
Printing speed: 1500-3500PCS/h
Max. Printing area: 1200*6400mm
Max. Material feeding: 1200*800mm

Guarantee Period: 1 years
Speed control: Adjustable speed motor
Oil feeding: Automatic
Automatic leave-joint: Electromagnet
Oil distribute: Net roller
Packing: Plastic film
