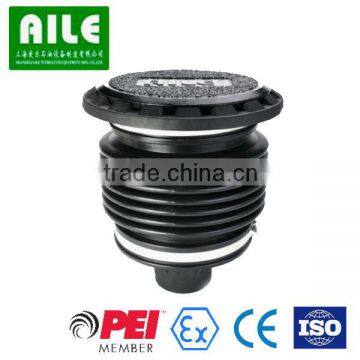

FYRQ-O1 5GL Thread-On Spill Container
US$ 1 - 120
/ Piece
35 Pieces(Min. Order)
- Shanghai
- T/T Money Gram Credit Card
You May Like
Product Details
| Condition | New | Capacity | 5GL | |
| Place of Origin | Shanghai, China | Brand Name | AILE | |
| Model Number | FYRQ-O1 | Dimension(L*W*H) | 42*42*48 | |
| Weight | 25.35KGS | Certification | ATEX |
Product Description
Specifications
FYRQ-O1 5GL Thread-On Spill Container is designed to prevent spilled product from entering the soil.FYRQ-O1 5GL Thread-On Spill Container
1) Designed to prevent spilled product from entering the soil near the fill
and vapor return riser connections on underground storage tanks
during normal tank filling operation, or in the event of tank overfill.
2) The spill containment catches spillage to help prevent soil
contamination and ground water pollution.
3) Generally used on new tank or riser pipe installations.
4) Materials:
a) Cover: cast iron/Aluminum
b) Mounting ring: cast iron
c) Bellows: polyethylene
d) Base: compound fiber
e) Clamps: stainless steel
f) Seals: buna-N
5) Easy installation: reduces job-site time and installation costs.

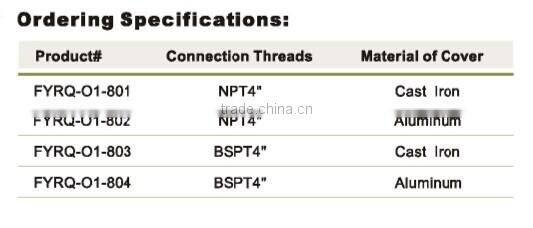

6) Thread-on spill containment screw directly onto 4" NPT or BSP risers.
7) No external connections to make, adjusts the final grade height and
supports the unit with backfill.
8) Integral pull-to-open drain valve: allows high-speed drainage of
excess product into the tank.
9) Designed with a conventional self-cleaning seal and removable
screen for easier component cleaning.
10) Capacity: available in a true 5 gallon capacity.
11) Rain-shedding cover: available in cast iron, this unique design
incorporates a seal in the underside of the cover.
12) The seal seats between 2 dams on the mounting ring to prevent
surface water from entering the spill container.
13) Fuel compatibility: designed to accommodate the fuels of the future,
including methanol, ethanol and fuels with MTBE additives.
14) Heavy-duty mounting ring: the angled ramp design offers superior
protection against snow and conductive.
15) A rugged optional cast iron base is also available.
