AILE A2101-11B Automatic Pressure-Sensitive Fueling Nozzle
US$ 1 - 25
/ Piece
100 Pieces(Min. Order)
- Shanghai
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Shanghai, China | Brand Name | AILE | |
| Model Number | A2101-11B |
Product Description
Specifications
Inlet size: NPT3/4" / BSP3/4"Outlet diameter: 15/16"
Flow rate: 0-60L/m (15/16")

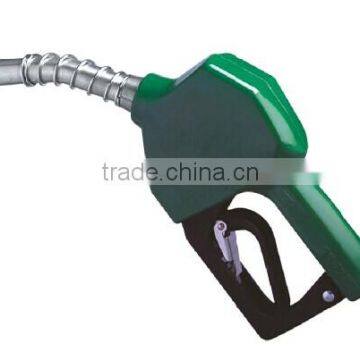

A2101-11B Automatic Pressure-Sensitive Fueling Nozzle
1) Designed specially for self-service prepay or card-lock system to help prevent gasoline spills
2) Cannot be opened until the pumping system is pressurized and closes automatically when the pressure is removed
3) Closed when placed back in the dispenser storage position
4) Materials:
a) Body: aluminum
b) Seals: buna-N, viton
c) Main stem seals: viton cased oil seal, graphite with teflon
d) Main stem: stainless steel
5) Weight: 1.25kg/pc
6) Ordering specifications:
a) A2101-11B:
i) Inlet size: NPT3/4" / BSP3/4"
ii) Outlet diameter: 15/16"
iii) Flow rate: 0-60L/m (15/16")
b) A2101-11BP:
i) Inlet size: NPT3/4" / BSP3/4"
ii) Outlet diameter: 13/16"
iii) Flow rate: 0-45L/m (13/15")
7) Working pressure: 0.18MPa
8) Accurate flow control allows customers to top off their tank to the exact amount they want, and it's easy to stop gasoline flow precisely
9) Easily replaced spout simply removes the screw
10) Spout kits available
11) Low profile aluminum body: light weight, easier to handle, provides an attractive, image enhancing appearance
12) Hold-open rack available for full service applications
13) One-hand control gives easy setting to flow rate for customer's convenience
14) Exclusive pressure detecting module: the main valve can keep closed, even when held without enough pressure in hose
15) Full hand insulator protects both nozzle and vehicle, and insulates users' hands
16) Available colors: color chart on inside back cover
17) Selective splash guard
18) 100% factory tested
19) Warnings: Using foreign objects to hold open automatic nozzles could result in failure to shut-off and personal injury
