Robotic Arm Use KG180CP0 Reail-silm Thin-section Bearings (18x20x1 In) Ball Bearing Price

KG180CP0 Reail-silm Thin-section bearings (18x20x1 in) Ball bearing price Robotic arm use

A . Reail-silm Thin-section bearings Parameters

Brand- BYC

Structure- Radial Contact Ball

Model number- KG180CP0 Thin section ball bearing

Inner ring(in)- 18

Outer ring(in)- 20

Width(in)- 1

Weight(lb)- 13.7

Materials- Chrome steel/GCR15/Stainless steel

Precision grade- P5/P4/P2

Lubrication type- Oil

Material(Ball)- Steel ball/Ceramic ball

Number of Row- Single rows

Section Type- Thin section

Quality- High speed, Low noise and Long life

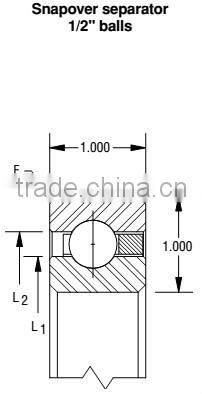

B . KG180CP0 Reail-silm Thin-section bearings Specification Sheet

C . Type C-KG series Reail-silm Thin-section bearings Details

Product Features To support various load scenarios,Reail-SlIM Thin section ball bearings are available in three basic types: radial contact (type C), angular contact (type A), and fourpoint contact (type X) and in a variety of sizes ,or series (e.g., KA, KB, KC, etc.). Reail-SlIM Thin section ball bearings are available with various separator options to space the rolling elements uniformly and prevent contact between them.

Series Introduction "A Conrad assembled bearing designed primarily for application of radial load—deep ball grooves also permit application of thrust load in

either direction – often used in conjunction with another bearing."

Series Model No. KG040CP0.KG042CP0.KG045CP0.KG047CP0.KG050CP0.KG055CP0.KG060CP0.KG065CP0.KG070CP0.KG075CP0.KG080CP0.KG090CP0.KG100CP0.KG110CP0.KG120CP0.KG140CP0.KG160CP0 .KG180CP0.KG200CP0.KG220CP0.KG250CP0.KG300CP0.KG350CP0.KG400CP0

Applications Applications in Robotics, inspection equipment, satellites, cameras… anywhere precise positioning and lightweight designs are critical.

D . Type C-KG series Reail-silm Thin-section bearings Installation & Cautions

"To realize the potential accuracy and long life of a Thin section bearing, it is important that the installation be properly done in a clean environment. Cleanliness is vital to satisfactory bearing performance. Work surfaces and tools must be free of dirt, chips, and burrs. Disposable wipers or clean, lint-free cloths should be used.

Under no circumstances should a bearing be used as a gage during grinding or machining of mating parts. Just a few grains of grinding grit or chips of metal (soft as well as hard) can seriously damage the precise geometry and finishes of bearing raceways and rolling elements, and are nearly impossible to remove from an assembled bearing.

The shaft and housing should be thoroughly cleaned, special attention being given to holes and crevices which could hold dirt, chips, and cutting oil. Unfinished surfaces of castings should be painted or otherwise sealed. The mounting surfaces for the bearing must be carefully checked, cleaned, and lightly oiled to ease fitting and minimize danger of scoring. Housing bore, shaft diameter, shoulder squareness, and fillet sizes should all be verified.

The bearing should not be removed from its protective package until this preparation is complete and it is time for installation."

2.Well-trained & experienced staff are to answer all your inquiries in English of course.

3.OEM & ODM projects are highly welcomed. We have strong R&D team here to help.

4.Your business relationship with us will be confidential to any third party.

5.Good after-sale service offered, please get back if you got question

6.Nowadays, as a professional precision bearing manufacture, we are proud of continual innovation, flexible production, speedy delivery, rapid after-sales service(2 years) and quick response.

       Luoyang BoYing Bearing Co., Ltd, (BYC) is a professional manufacturer of high precision bearings,The main products  are Crossed roller bearings ,  YRT Rotary Table Bearings ,  Crossed Tapered Roller Bearings ,  Cylindrical Thrust Roller Bearing ,  Angular Contact Ball Bearings ,  Thin Section Bearings,Slewing Bearings  ,  Ball Screw Bearings . The accuracy grades are P5, P4, P2, and the size of inner ring are ranging from Φ50mm --- Φ1300mm. Our products are optimal for Robotics, Machine Tools, Rotary Table, medical equipment, measuring instruments ,mainly to replace the imported bearings. Also, we can design,choose and manufacture non-standard precision bearings as customer requested.

1. Industrial Neutral Packing,Package as your requirements.

2. Small size Bearings:Plastic vacuum packaging bag+Paper Box/Neutral Carton

3.Large size Bearings:Plastic film+Brown paper+Roll tape+Wooden Box

4.Shipping:By air or By sea:DHL/TNT/UPS/EMS etc
