1-3 tons forklift for sale, fork-lift, fork lift truck Quality Choice

FOB Price

USD $6,500 - $15,000 / Unit

1 Unit(Min.Order)

Port Shanghai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Hubei, China
Brand Name	Veldlion	Model Number	FD30
Type	Powered Pallet Truck	Rated Loading Capacity	3000kg
Max. Lifting Height	3000mm	Min. Lifting Height	2075mm
Fork Length	1070mm	Fork Width	125mm
Overall Dimensions	209512302090mm	Certification	CE$ISO9001
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

1. 3T diesel hydraulic forklift truck
2. Powerful engine
3. Perfect design and comfortable control
4. Pneumatic tyres

1. Technicial parameters of the 3T diesel forklift

Forklift Model	FD30
Power type		Diesel
Engine		ISUZU C240
Mast		Std. 2 Stage3m mast
Load capacity	kg	3000
Overall Dimensions	mm	209512302090
Characteristics	Load center	mm	500
	Lift Height	mm	3000
	Fork (LWT)	mm	1070X125X45
	Tilting angle of mast(Forwad)	°	6
	Tilting angle of mast(Backward)	°	12
	Turning radius(Min.outside)	mm	2400
	Min. ground clearance	mm	120
	Height of overhead guard (cabin)	mm	2090
Performance	Drive speed(Full Load)	km/h	20
	Lifting speed(Full Load)	km/h	470
	Hook traction(Full Load)	kw	18
	Max. grade ability	%	20
	Service weight(Without load)	kg	4350
Frame	Tyres		Std. pneumatic tyres
	Tyre size(Front)		28×9-15-12PR
	Tyre size(Rear)		6.50-10-10PR
	Wheelbase	mm	1700
	Wheeltrack(Front)	mm	1000
	Wheeltrack(Rear)	mm	970
Drive	Battery Voltage/Capacity	V/AH	12/90
	Service brake		Hydraulic-pedal
	Parking brake		Hand brake
Optional Configuration of 3Tons Counterbalance Diesel Forklift
Mast	Type	Lifting Height
	2-stage clear view	3M(STD)/ 3.3M/ 3.5M/ 4M/ 4.5M/ 5M/ 5.5M/ 6M
	2-stage free lift	2M/ 2.5M/ 3M/ 3.3M/ 3.5M/ 3.7M/ 4M
	3-stage free lift	3.6M/ 4M/ 4.35M/ 4.5M/ 4.8M/ 5M/ 5.5M/ 6M

Our forklift have a wide range for choosing . We can offer 1.5T, 2T, 3T, 4T, 5T, 6T, 7T, 8T, 10T.

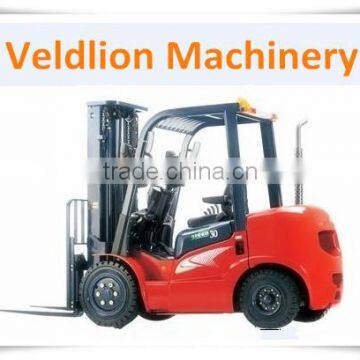

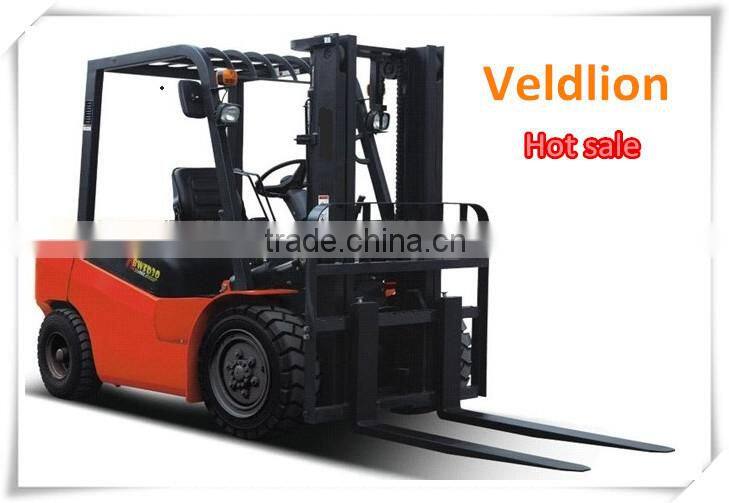

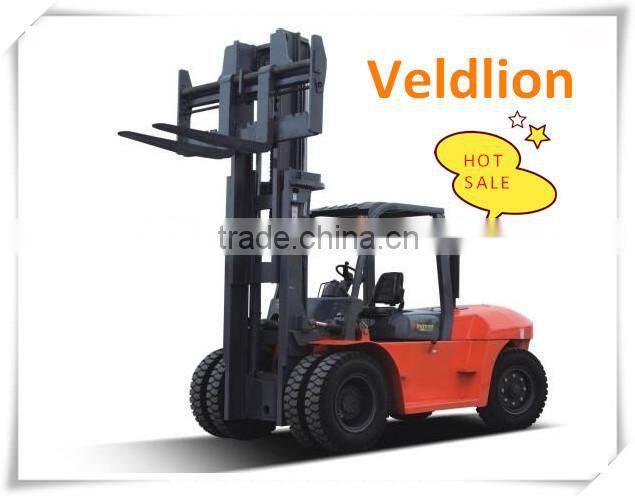

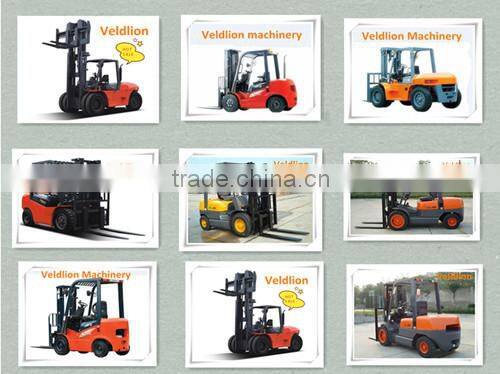

More Photos about our forklifts

2. Company introduce

HUBEI VELDLION MACHINERY CO., Ltd is an authorized forklift manufacturer.We are specialized in the production of a variety of special-purpose vehicles.

Create value for our customers is our company's concept. Welcome to enquiry from us, Let's our sales team make you more great in this field.

3. Contact us

Atten: Mr. Eric Ke

Cellphone: 0086-18961715558

Skype: jeewins1981

Email: Veldlion(at)
