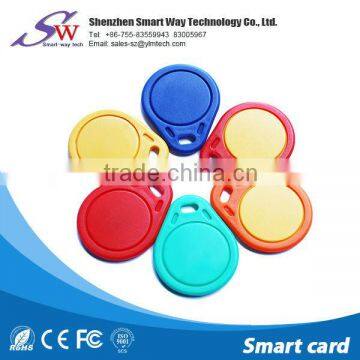

t5577 rfid card for pertection doors

The T5577 is a contactless R/W IDentification IC (IDIC®) for applications in the
125-kHz frequency range. A single coil, connected to the chip, serves as the IC’s
power supply and bi-directional communication interface. The antenna and chip together form a transponder or tag.The on-chip 330-bit EEPROM (10 blocks, 33 bits each) can be read and written blockwisefrom a reader. Block 0 is reserved for setting the operation modes of theT5577 tag. Block 7 may contain a password to prevent unauthorized writing.Data is transmitted from the IDIC using load modulation. This is achieved by damping the RF field with a resistive load between the two terminals Coil 1 and Coil 2. The IC receives and decodes 100% amplitude-modulated (OOK) pulse-interval-encoded bit
streams from the base station or reader.Multifunctional 330-bit Read/Write RF Identification IC T5577 4874D

APPLICATIONS
1,Logistics automation

2,Anticounterfeiting
3,Access control
4,Industrial transponder

SPECIAL FEATURES
  Contactless Read/Write Data Transmission
• Radio Frequency fRF from 100 kHz to 150 kHz
• e5550, e5551, T5557 Binary Compatible
• Extended Mode
• Small Size, Configurable for ISO/IEC 11784/785 Compatibility
• 75 pF On-chip Resonant Capacitor (Mask Option)
• 7 × 32-bit EEPROM Data Memory Including 32-bit Password
• Separate 64-bit Memory for Traceability Data
• 32-bit Configuration Register in EEPROM to Setup:
– Data Rate
• RF/2 to RF/128, Binary Selectable, or
• Fixed e5550 Data Rates
– Modulation/Coding
• FSK, PSK, Manchester, Bi-phase, NRZ
– Other Options
• Password Mode
• Max Block Feature
• Answer-On-Request (AOR) Mode
• Inverse Data Output
• Direct Access Mode
• Sequence Terminator(s)
• Write Protection (Through Lock-bit per Block)
• Fast Write Method (5 Kbps versus 2 Kbps)
• OTP Functionality
• POR Delay up to 67 ms

RF card structure

Shenzhen Smart Way technology Co.,Ltd set up on 2011,built in Futian District, Shenzhen, China. our products are smart cards of access control and security equipment,such as Ibutton,RF cards,chips,etc.our core service is credit first customer,welcome your coming. t5577 rfid card for pertection doors t5577 rfid card for pertection doors t5577 rfid card for pertection doors
