HS6-43P1Z Slewing Bearings (38.75x47.18x2.2in) BYC Band Swing Bearing NC Rotary Table Dedicated

HS6-43P1Z Slewing Bearings (38.75x47.18x2.2in) BYC Band swing bearing NC rotary table dedicated

A . Slewing Bearings Parameters

Brand- BYC

Model number- HS6-43P1Z

Inner ring(in)- 38.75

Outer ring(in)- 47.18

Width(in)- 2.2

Weight(lbs)- 269

Materials- GCR15/GCR15SiMn/50Mn/42CrMo/5CrMnMo

Series- HS-No Gear

Lubrication type- Grease lubrication

Rolling elements- Ball

Load direction- Multi-load

Structure- HS slewing ring features reduced clearance and rectangular sections that provide additional capacity, greater stiffness

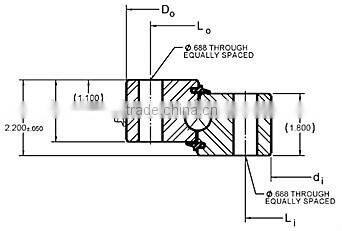

B . HS6-43P1Z Slewing Bearings Specification Sheet

 C . HS-No Gear type Slewing Bearings Details

Product Features

Slewing Bearings have high load carrying capacity, a versatile range of applications and are highly cost-effective.Due to their design, a single bearing can reliably support radial,axial and tilting moment loads. It is therefore possible in many cases to replace bearing arrangements comprising a combination of radial and axial bearings by a single bearing. BYC Slewing Bearings have Two types:Four point contact slewing bearings and crossed roller slewing bearings.

Series Introduction

Kaydon's HS series slewing ring bearings have rectangular cross sections that provide approximately twice the load capacity (moment ratings up to 139,900 ft-lbs) in the same envelope. HS series bearings provide solutions for medium- to heavy-duty applications.

Series Model No.

RK6-16P1Z,RK6-22P1Z,RK6-25P1Z,RK6-29P1Z,RK6-33P1Z,RK6-37P1Z,RK6-43P1Z,RK6-16N1Z,RK6-22N1Z,RK6-25N1Z,RK6-29N1Z,RK6-33N1Z,RK6-37N1Z,RK6-43N1Z;

RK6-16E1Z,RK6-22E1Z,RK6-25E1Z,RK6-29E1Z,RK6-33E1Z,RK6-37E1Z,RK6-43E1Z

MTO-050,MTO-050T,MTO-065,MTO-065T,MTO-122,MTO-122T,MTO-143,MTO-143T,MTO-145,MTO-145T,MTO-145X,MTO-170,MTO-170T,MTO-210,MTO-210T,MTO-210X,MTO-265,MTO-265T,MTO-265X,MTO-324T,MTO-324X;

MTE-145,MTE-145T,MTE-145X,MTE-210,MTE-210T,MTE-210X,MTE-265,MTE-265T,MTE-265X,MTE-324T,MTE-324X,MTE-415,MTE-415T,MTE-470,MTE-470T,MTE-540,MTE-540T,MTE-590,MTE-590T,MTE-705,MTE-705T,MTE-730,MTE-730T,MTE-870,MTE-870T

KH-125P,KH-166P,KH-225P,KH-275P,KH-325P;KH-125E,KH-166E,KH-225E,KH-275E,KH-325E

HS6-16P1Z,HS6-21P1Z,HS6-25P1Z,HS6-29P1Z,HS6-33P1Z,HS6-37P1Z,HS6-43P1Z,HS6-16N1Z,HS6-21N1Z,HS6-25N1Z,HS6-29N1Z,HS6-33N1Z,HS6-37N1Z,HS6-43N1Z.HS6-16E1Z,HS6-21E1Z,HS6-25E1Z,HS6-29E1Z,HS6-33E1Z,HS6-37E1Z,HS6-43E1Z

Applications

Kaydon's HS slewing ring bearings provide solutions for medium- to heavy-duty applications including:

Cranes

Aerial lifts

Digger derricks

Chute swivels

Lift truck rotators

Industrial turntables

 D . HS-No Gear type Slewing Bearings Installation & Cautions

1. Four point contact slewing bearings

– these slewing rings without preload are robust and provenunder very demanding operation; they place only slight demands on the flatness and perpendicularity of the adjacent construction

– they are suitable for applications with low requirements for accuracy and rigidity of the bearing arrangement, for example in

simple metalworking machines, wind power equipment and

2. Crossed roller slewing bearings

– these preloaded slewing rings can support higher loads than four point contact bearings. They have proved themselves

particularly where bearings are subjected to high radial forces and moderate axial and tilting moment loads

– they are suitable for applications with uniform running free from stick-slip, low rotational resistance and high requirements for axial and radial runout accuracy and rigidity, for example in robots,handling systems and machine tools.
