MTO-324T Slewing Bearings (12.75x20.486x2.062in) Luoyang Boying Bearing main bearing

MTO-324T Slewing Bearings (12.75x20.486x2.062in) Luoyang Boying Bearing main bearing

A . Slewing Bearings Parameters

Brand- BYC

Model number- MTO-324T

Inner ring(in)- 12.75

Outer ring(in)- 20.486

Width(in)- 2.062

Weight(lbs)- 105

Materials- GCR15/GCR15SiMn/50Mn/42CrMo/5CrMnMo

Series- MTO-No Gear

Lubrication type- Grease lubrication

Rolling elements- Ball

Load direction- Multi-load

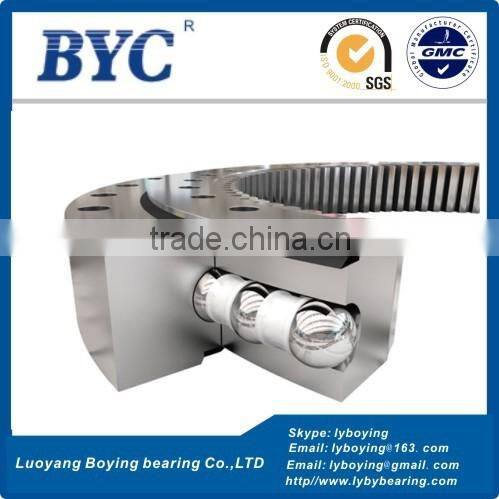

Structure- Rectangular cross-section.The internal configuration consists of deep groove gothic arch raceways and maximum ball complement.

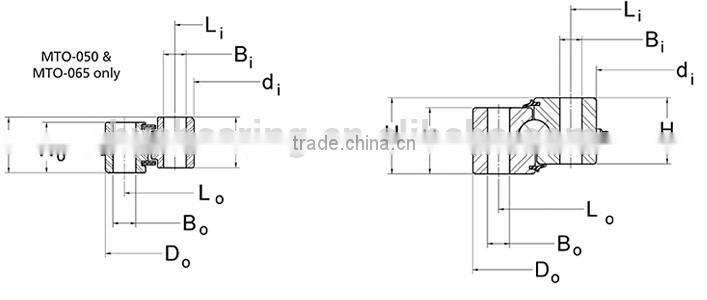

B . MTO-324T Slewing Bearings Specification Sheet

C . MTO-No Gear type Slewing Bearings Details

Product Features

Slewing Bearings have high load carrying capacity, a versatile range of applications and are highly cost-effective.Due to their design, a single bearing can reliably support radial,axial and tilting moment loads. It is therefore possible in many cases to replace bearing arrangements comprising a combination of radial and axial bearings by a single bearing. BYC Slewing Bearings have Two types:Four point contact slewing bearings and crossed roller slewing bearings.

Series Introduction

Kaydon's MT series heavy duty slewing ring bearings offer solutions for applications such as truck mounted cranes, hoists, and non-precision industrial tables and positioners, providing optimal economy and capacity for a given envelope dimension.

Series Model No.

RK6-16P1Z,RK6-22P1Z,RK6-25P1Z,RK6-29P1Z,RK6-33P1Z,RK6-37P1Z,RK6-43P1Z,RK6-16N1Z,RK6-22N1Z,RK6-25N1Z,RK6-29N1Z,RK6-33N1Z,RK6-37N1Z,RK6-43N1Z;

RK6-16E1Z,RK6-22E1Z,RK6-25E1Z,RK6-29E1Z,RK6-33E1Z,RK6-37E1Z,RK6-43E1Z

MTO-050,MTO-050T,MTO-065,MTO-065T,MTO-122,MTO-122T,MTO-143,MTO-143T,MTO-145,MTO-145T,MTO-145X,MTO-170,MTO-170T,MTO-210,MTO-210T,MTO-210X,MTO-265,MTO-265T,MTO-265X,MTO-324T,MTO-324X;

MTE-145,MTE-145T,MTE-145X,MTE-210,MTE-210T,MTE-210X,MTE-265,MTE-265T,MTE-265X,MTE-324T,MTE-324X,MTE-415,MTE-415T,MTE-470,MTE-470T,MTE-540,MTE-540T,MTE-590,MTE-590T,MTE-705,MTE-705T,MTE-730,MTE-730T,MTE-870,MTE-870T

KH-125P,KH-166P,KH-225P,KH-275P,KH-325P;KH-125E,KH-166E,KH-225E,KH-275E,KH-325E

HS6-16P1Z,HS6-21P1Z,HS6-25P1Z,HS6-29P1Z,HS6-33P1Z,HS6-37P1Z,HS6-43P1Z,HS6-16N1Z,HS6-21N1Z,HS6-25N1Z,HS6-29N1Z,HS6-33N1Z,HS6-37N1Z,HS6-43N1Z.HS6-16E1Z,HS6-21E1Z,HS6-25E1Z,HS6-29E1Z,HS6-33E1Z,HS6-37E1Z,HS6-43E1Z

Applications

RK series slewing ring bearing solutions have been used successfully in a variety of light to medium duty applications including:

Small cranes, booms, and lifts

Industrial positioners and rotary tables

Chute swivels

Stretch wrapping machines

Bottle filling machines

Conveyors and related material handling equipment"

 D . MTO-No Gear type Slewing Bearings Installation & Cautions

1. Four point contact slewing bearings

– these slewing rings without preload are robust and provenunder very demanding operation; they place only slight demands on the flatness and perpendicularity of the adjacent construction

– they are suitable for applications with low requirements for accuracy and rigidity of the bearing arrangement, for example in

simple metalworking machines, wind power equipment and

2. Crossed roller slewing bearings

– these preloaded slewing rings can support higher loads than four point contact bearings. They have proved themselves

particularly where bearings are subjected to high radial forces and moderate axial and tilting moment loads

– they are suitable for applications with uniform running free from stick-slip, low rotational resistance and high requirements for axial and radial runout accuracy and rigidity, for example in robots,handling systems and machine tools.

2.Well-trained & experienced staff are to answer all your inquiries in English of course.

3.OEM & ODM projects are highly welcomed. We have strong R&D team here to help.

4.Your business relationship with us will be confidential to any third party.

5.Good after-sale service offered, please get back if you got question

6.Nowadays, as a professional precision bearing manufacture, we are proud of continual innovation, flexible production, speedy delivery, rapid after-sales service(2 years) and quick response.

       Luoyang BoYing Bearing Co., Ltd, (BYC) is a professional manufacturer of high precision bearings,The main products  are Crossed roller bearings ,  YRT Rotary Table Bearings ,  Crossed Tapered Roller Bearings ,  Cylindrical Thrust Roller Bearing ,  Angular Contact Ball Bearings ,  Thin Section Bearings, Slewing Bearings  ,  Ball Screw Bearings . The accuracy grades are P5, P4, P2, and the size of inner ring are ranging from Φ50mm --- Φ1300mm. Our products are optimal for Robotics, Machine Tools, Rotary Table, medical equipment, measuring instruments ,mainly to replace the imported bearings. Also, we can design,choose and manufacture non-standard precision bearings as customer requested.

1. Industrial Neutral Packing,Package as your requirements.

2. Small size Bearings:Plastic vacuum packaging bag+Paper Box/Neutral Carton

3.Large size Bearings:Plastic film+Brown paper+Roll tape+Wooden Box

4.Shipping:By air or By sea:DHL/TNT/UPS/EMS etc
