Product Details
| Place of Origin | Fujian, China | Brand Name | Haiwell PLC | |
| Model Number | H16XDT |
Product Description

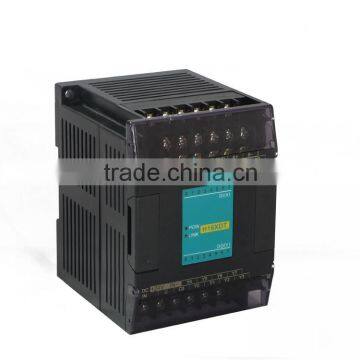

Haiwell H16XDT 16points digital expansion module for PLC programmable controller
Haiwell PLC is a versatile high-performance programmable logic controller, which is widely used in plastics, packaging, textiles, food, medical, pharmaceutical, environmental, municipal, printing, building materials, elevators, central air conditioning, numerical control machine tools and other fields of systems and control equipment.
It is the first PLC (Programmable logic controller) designed with 100% built-in simulator from China.
Very easy to study and use! It is the best choice for small and medium PLC market. As compared to Siemens/Mitsubishi/AB etc, it is more cost-effective, very simple to study and use, equipped with all the necessary functions.
PLC Model | Power | DI | DO | Communication | Haiwell series |
H16XDT | 24V DC | 8 | 8 transistor | RS485, remote IO module | Digital IO module |
Haiwell PLC Digital Input (DI) Specification
Item | Digital Input DI |
Input signal | Non-voltage contact or NPN/PNP contact |
Action driving | ON: 3.5 mA above OFF: below 1.5 mA |
Input impedance | About 4.3KΩ |
Input maximum current | 10mA |
Response time | Default 6.4ms,Configurable 0.8~51.2ms |
Isolation mode | Each Channel optical isolation |
Input indication | LED light means ON, dark means OFF |
Power supply | PLC internal power supply: DC power(sink or source)5.3mA@24VDC |
Haiwell PLC Digital Output (DO) Specification
Item | Relay Output-R | Transistor Output NPN-T | |
maximum load | Resistance load | 2A/1 point,8A/4 point per COM | 0.5A/1 point,2A/4 point per COM |
Inductive load | 50VA | 5W/DC24V | |
Light load | 100W | 12W/DC24V | |
Min. load | 10mA | 2mA | |
Voltage specification | Below 250VAC,30VDC | 30VDC | |
Drive capability | Maximum 5A/250VAC | MAX 1A 10S | |
Response time | Off-on 10ms,On-off 5ms | Off→On 10us, On→Off 120us | |
Leakage current when route opened | --- | Below 0.1mA | |
Isolation mode | Mechanical isolation | Each Channel optical isolation | |
Output indication | LED light means ON , dark means OFF | ||
Power supply | PLC internal power supply 24VDC | ||
HaiwellHappy is a Free for download PLC software. Complied with IEC 61131-3 standard. It supports 100% built-in simulator, and LD-Ladder Diagram, FBD-Function Block Diagram and IL-Instruction List 3 programming languages.
Runing with Windows 98, Windows 2000, Windows XP and the newer versions.
Haiwell expansion modules are designed with built-in communication port, supports parallet bus and serial bus networking. When using as serial bus as a remote modules, it is runing without I/O points limitation from the host systems, can be installed as distributed.
All Haiwell PLC products support 24months warranty.
Shipment within 5 workdays after payment received.
