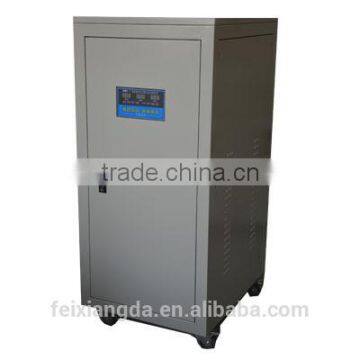

Single phase contactless voltage stabilizer 30KVA

FOB Price

USD $200 - $20,000 / Unit

10 Units(Min.Order)

Port ShenZhen or HongKong or can be choosed
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	FeiXiangDa
Model Number	FWBD-30	Usage	Other, power supply, Power supply
Phase	Other, Single Phase, Single	Current Type	AC

Product Description

Production introduction

Digital single and three-phase micro-computer contactless compensating power stabilizer is the latest technology introduction of international AC regulated power supply and it is the newest high power AC regulated power supply. It combines advanced compound vinding compensation mode and non-contact switch, microcomputer control ac voltage regulation technology in one. It has the functions of energy saving, quick adjustment, three-phase automatic balance, no mechanical failure and wear of carbon brush and time-delay, under-voltage alarm and protection, etc. It has a strong instantaneous overload capacity, thus greatly improving the reliability of the system operation. It's convenient for the user to operate and inquire with the friendly interface.

With high efficiency and wide range spare parts,it can withstand harsh temperature, humidity, vibration and pollution environment.

Application

CNC automatic punching machine PCB automatic drilling machine program control system

precision wire cutting machine CNC numerical control machine safety alarm system

mirror EDM machine metal laser cutting machine SMT automatic component inserter exposure laser machine medical equipment imported printing machines
CNC die engraving machine precision circuit etching machine

precision color printing equipment chemical equipment

Related Parameter for contactless voltage stabilizer

Suit load	Can be applied to resistive, capacitive, inductive and nonlinear loads, can be applied to impact loads
Work way	Long term continuous operation
Heatradiation way	Temperature control air cooling or forced air cooling or nature air cooling
Safe standard	Resistance strength:≥2500V
	Insulation resistance:≥5 ohm
	Electrical clearance:not less than 6mm
	Climb power distance:not less than10mm
Insulation grade	B grade or F grade or H grade(can be customized)
Protection grade	IP20-IP43(can be customized)
Construction	High quality metal frame structure
EMC	This product is in accordance with IEC 61000 standards for electromagnetic interference and transmission interference from the power grid and other devices.
Environment	Temperature:-10℃~+40℃
	Relative humidity:≤93%,No condensation
	No corrosive, flammable, explosive gas and liquid,sea level is not higher than 1000M
Supervisory joggle	RS-232 or CRS-485(accordwith MODBUS protocol)or dry contact signal can be customized)
Expand function	According to customer requirements can be made into three phase points or with surge / peak suppression or harmonic current suppression or reactive power compensation, calls self start (unattended), output voltage can be adjusted and other functions
Display	Pointer table or LED digital display or LCD digital display

Specification for 3 phase contactless voltage stabilizer

Model No.	Capacity	Output voltage	Iutput voltage	Output current	Dimenstion(LWH including wheel)	Weight(KG)
FWBS-10	10	380V±15%	380V±(1-1.5%)	15	400500750	55
FWBS-15	15	380V±15%	380V±(1-1.5%)	23	400500750	75
FWBS-20	20	380V±15%	380V±(1-1.5%)	30	530400770	105
FWBS-30	30	380V±15%	380V±(1-1.5%)	46	500700900	155
FWBS-45	45	380V±15%	380V±(1-1.5%)	68	600450890	205
FWBS-60	60	380V±15%	380V±(1-1.5%)	91	500700900	230
FWBS-80	80	380V±15%	380V±(1-1.5%)	122	6007501230	260
FWBS-100	100	380V±15%	380V±(1-1.5%)	152	6007501360	295
FWBS-120	120	380V±15%	380V±(1-1.5%)	182	6007501360	320
FWBS-150	150	380V±15%	380V±(1-1.5%)	228	6007501360	355
FWBS-200	200	380V±15%	380V±(1-1.5%)	304	7008001500	430
FWBS-250	250	380V±15%	380V±(1-1.5%)	380	7008001500	500
FWBS-300	300	380V±15%	380V±(1-1.5%)	456	7008001500	560
FWBS-400	400	380V±15%	380V±(1-1.5%)	606	90010001600	660
FWBS-500	500	380V±15%	380V±(1-1.5%)	760	90010001600	750
FWBS-600	600	380V±15%	380V±(1-1.5%)	912	100012002000	850
FWBS-800	800	380V±15%	380V±(1-1.5%)	1216	130012002000	1100
FWBS-1000	1000	380V±15%	380V±(1-1.5%)	1520	140012002000	1300
FWBS-1250	1250	380V±15%	380V±(1-1.5%)	1900	160012002000	1600
FWBS-1600	1600	380V±15%	380V±(1-1.5%)	2432	200012002000	1800
FWBS-2000	2000	380V±15%	380V±(1-1.5%)	3040	230012002000	2200
FWBS-2500	2500	380V±15%	380V±(1-1.5%)	3800	250012002000	2500

Specification for single phase contactless voltage stabilizer

Model No.	Capacity	Output voltage	Iutput voltage	Output current	Dimenstion(LWH including wheel)	Weight(KG)
FWBD-5	5	220V±15%	220V±(1-1.5%)	22	380320630	38
FWBD-10	10	220V±15%	220V±(1-1.5%)	46	400460720	73
FWBD-15	15	220V±15%	220V±(1-1.5%)	68	400460720	105
FWBD-20	20	220V±15%	220V±(1-1.5%)	90	400460720	125
FWBD-30	30	220V±15%	220V±(1-1.5%)	137	500700900	170
FWBD-50	50	220V±15%	220V±(1-1.5%)	228	500700900	220
FWBD-80	80	220V±15%	220V±(1-1.5%)	364	6007501360	305
FWBD-100	100	220V±15%	220V±(1-1.5%)	454	6007501360	370
FWBD-150	150	220V±15%	220V±(1-1.5%)	682	6007501360	490

Products pictures

Company Information

ShenZhen FeiXiangDa Electrical Co.,Ltd specialized in manufacturing and selling various power supply products including precise and energy-efficient voltage stabilizer, transformer, voltage regulator, variable frequency power, DC power and UPS power supply etc…

Our company is integrated with R&D, design, manufacturing, marketing, and service, and was introduced by ISO9001 quality standard and 3C certifying for multi-products, we are supplying reliable, energy-efficient products and guarantee to different scopes covering OEM factory, minerals, telecommunications , finance, government, energy, traffic, medical, military, education etc.

Our company is based on honesty, loyalty and credibility, we always offer overall solution with professional technique, precise equipments and perfect service.
