Handheld Vfl Machine

First, Description:

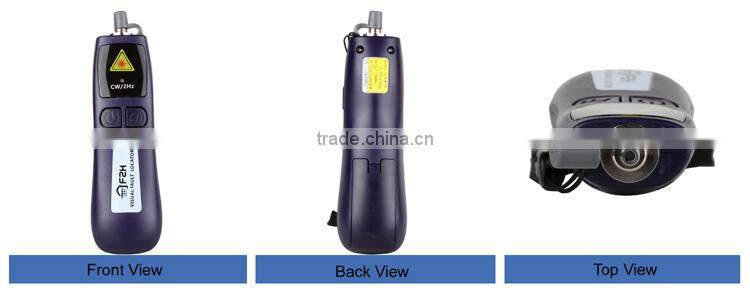

VLS-8 Series Mini Visual Laser Source totally complies with the human engineering.

It's small in size, easy to operate, portable and integrated with a launching indicator.

A Visual Laser Source is usually used to inspect the damaged or broken point of a optical fiber, cable, patchcord and etc.

If the inspected fiber does have a defect, user could find the visual laser at the broken or damaged point.

VLS-8 Series Mini Visual Laser Source is suitable for both single mode and multimode fibers.

The performance of the visual laser source will act a little different on different fiber coat and color.

Second, Features:

1. Totally comply with the human engineering design. Small, portable and durable

2. Standard Multi-adapter can be applied to connect with almost any adaptor type.

    Also provides interchangeable fiber adaptors of several common types

3. Higher output laser power, max 15km detecting range

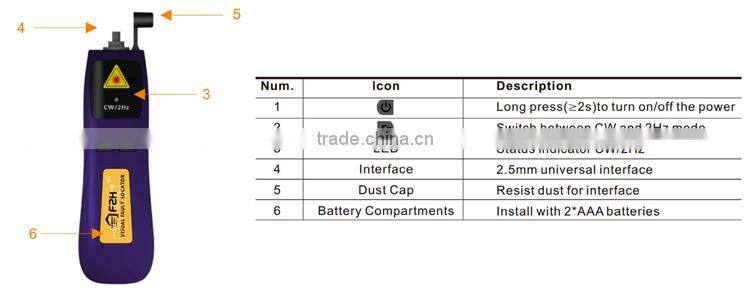

4. Integrated with continuous wave and 2Hz modulated wave output function

Third: Specification:
