RO plant water filtration plant

Multi-Media filter

This equipment is mainly used for removing big particles, seston and colloid from water for dropping turbidity,and is applicable for the pretreatment of various water or primary filter for industrial water of low quality. The filter material is quartz sand,anthracite and pyrite ore which shall be selected according to the actual demands.The equipment enclosure is made of glass fiber reinforced plastic, A3 plastic lined steeland stainless steel.It applies manual control and imported Autotrol/Fleck multiple valve control.

Ultra filtration system
Ultra filtration system utilizes a different molar weight cut-off (MWCO) to filter and separate a variety of small suspended particles, organic resin in the water, and reduces the TOC.It can be used before the RO system as pretreatment of raw water, and can be used at the end of ultrapure water system to remove small particles in pure water. The removal rate of organic matter is up to 99% and SDI<1, so that can increase water purification acquisition of the RO system, and extend the life span of RO membrane.UF uses “Inside-out”pressure type of hollow fiber membrane silk. The equipment could automatically collect water, back flush and so on with extremely easy operation to reduce the unstable factors caused by human operation and complicated management.

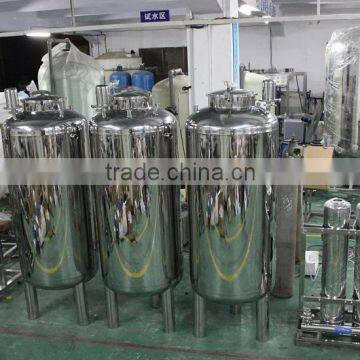

Precise filter

Series precise filter composes of stainless steel enclosure and filter core whose precision grade ranges 0.1um100um for protecting the reverse osmosis membrane from particles and seston, and is also used for removing bacterium and clarifying in medicine and wine. It requires replacing the filter core when the input and output.water pressure difference exceeds 0.1MPa after using for 1-6months.

Reverse osmosis systems

Reverse osmosis systems are used to purify water and remove salts and other impurities from tap and brackish water. It is also capable of rejecting bacteria, sugars, proteins, particles, dyes, and other constituents that have a molecular weight of greater than 150-250 dalton. Our largest tap and brackish water units can come standard with media pre-filters, chemical dosing, and antiscalant. These systems are usually customized to fit individual customer and water application needs
