Immersion Heating elements for water heater, 2.2KW / 220V

Changshu Tinymote Electrical Appliance Co., Ltd. is the professional manufacturer of heating element with more than 10 years experience.Our factory total area 3000 square meters,which is located at Suzhou City, near by Shanghai,only 50 kms far from our factory to Shanghai and 200 kms to Ningbo.

Our main products are water heating element for water heater, solar energy heating element and ALCI( capability of leakage protective plugs.).we introduced many advanced technology and equipment so that we can provide higher quality product to customer, and the delivery time will be shorter. Our products are accpeted by many customer.

We hope to establish a long term business relationship with you on the basis of high quality products, competitive prices, timely delivery and the best service.Sincerely welcome new and old friends both from home and abroad to visit us for patronization and
cooperation!

Technical Parameter

heating element for water heater series

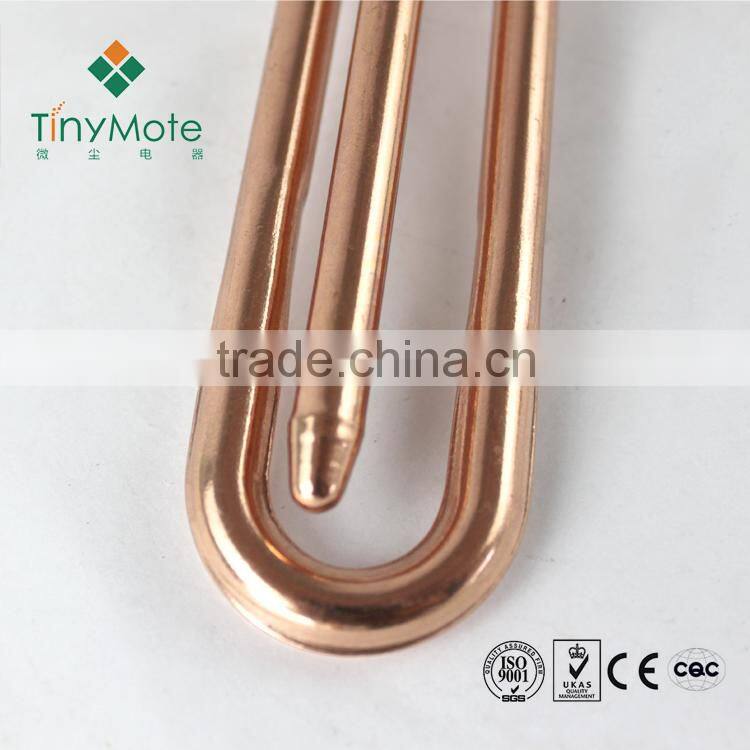

Body Material

T2 red copper;

Pipe Size

Φ8.0mm

Tube wall thickness

0.4~0.6mm

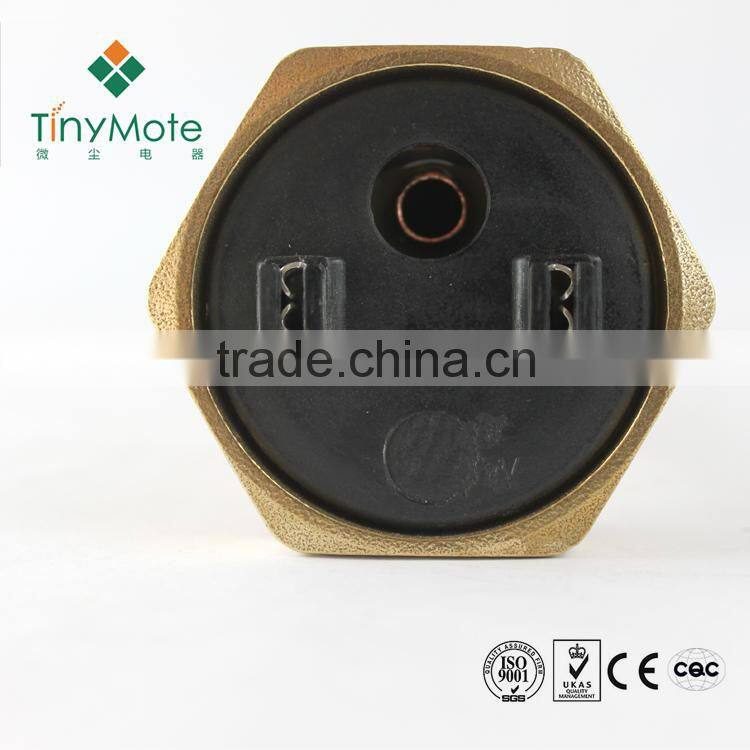

Terminal Size

SS250#parent plugins

Terminal Connection

spot welding

Temperature Control

Insertion regulated thermostat;sealing with screw flange coupling

Watt

Customized

Voltage

Customized

Overall Dimensions

OEM,design in order

Electrical Performance

Life Time

Rated voltage to boil water until temperature control disconnect,outage after 5 seconds then drain and cooling, refill cold water to boil until the temperature control disconnect.So more than 10000 cycles.

Warranty

TWO year

High- pot test

1500V/2mA/1S

Resistance insulation

100MΩ MIN

Leakage current

0.5mA MAX

Surface Treatment

Electronickelling

Flange and pipe joint with tinning welding,withstand 1.2MPa pressure test no leakage.

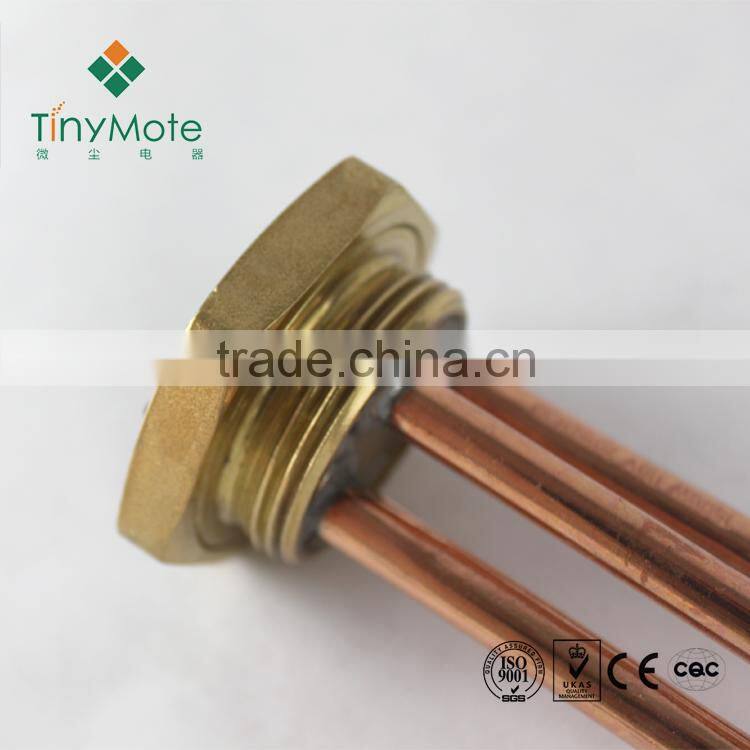

Flange material

1 1/4"copper flange weight about 110g

 No serious leakage solder inside of flange
