Immersion Kettle Heating Element for Water Kettle

Changshu Tinymote Electrical Appliance Co., Ltd. is the professional manufacturer of heating element with more than 10 years experience.Our factory total area 3000 square meters,which is located at Suzhou City, near by Shanghai,only 50 kms far from our factory to Shanghai and 200 kms to Ningbo.

Our main products are water heating element for water heater, solar energy heating element and ALCI( capability of leakage protective plugs.).we introduced many advanced technology and equipment so that we can provide higher quality product to customer, and the delivery time will be shorter. Our products are accpeted by many customer.

We hope to establish a long term business relationship with you on the basis of high quality products, competitive prices, timely delivery and the best service.Sincerely welcome new and old friends both from home and abroad to visit us for patronization and
cooperation!

Technical Parameter

immersion kettle heating element for water kettle

Body Material

   T2 red copper

Pipe Size

   Φ8.0

Tube wall thickness

0.4~0.5mm

Thermostat system

STRIX control,satisfying the various demand of compatibility testing

Terminal Connection

squeeze riveted to withstand tension of 5 kg

Temperature Control

3.6±0.4;13.1±0.25;14.1±0.2

Watt

  customized

Voltage

  Customized

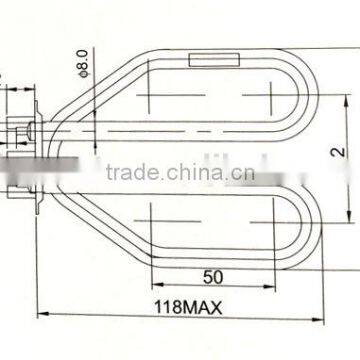

Overall Dimensions

  OEM, customized in drawing or samples.

Electrical Performance

AC1500V/0.5mA.3S;DC500V 100MΩ;Leakage current<0.5mA

Life Time

Power on 0.5 time voltage boil dry until trip,then water cooling within 5 seconds,non-yellowing on tube surface.Coating without upwarping and sparkling.
Instal the heating tube and thermostat inside of kettle,inject 1L cold water,boil water until boiling by rated voltage,boiling 5 seconds later power off,then drain and cooling,inject 1L cold water again boil until boiling.So after 10000 cycles,heating tube can be still work normally.

Warranty

  TWO year

High- pot test

  1500V/2mA/1S

Resistance insulation

  100MΩ MIN

Leakage current

  0.5mA MAX

Surface Treatment

  electronickelling

   Flange and pipe joint with brazing,withstand 0.4MPa pressure test no leakage

Flange material,thickness

  1.0mm,brass

 Screw bolt resistance 1.2N.m torsion not shed
