Home > Products > TFT under 3.5" > 1.7 inch hot sales pure white square tft lcd display
1.7 inch hot sales pure white square tft lcd display
- HONGKONG
- T/T L/C D/P D/A
You May Like
-
40 pin tft lcd panel 2016 hot sale of 2.8 inch
-
1.2 inch special design to exterior and 13 pin tft lcd panel
-
3.2 inch TFT LCD module, 320*240 8/16Bits Parallel interface&SPI tft panel
-
2.8 tft lcd module 320*240 40pin
-
2.4 inch TFT LCD module 40pin 8/16Bits Parallel interface&SPI
-
1.7 inch tft lcd 8Bits Parallel interface good quality
Product Details
| Place of Origin | Guangdong, China | Brand Name | ANSTAR | |
| Model Number | AS017TL41-20NP-02A | Type | TFT |
Product Description

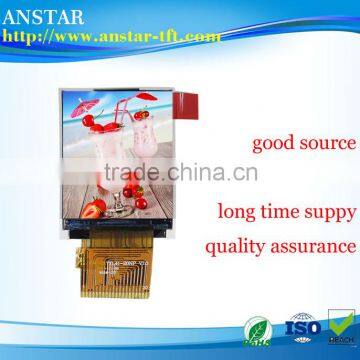

1.7 inch hot sales pure white square tft
lcd display
Specification parameter
| 1 | Item | AS017TL41-20NP-02A
|
| 2 | Screen Size | 1.7''
|
| 3 | Module Size(WxHxD,mm) | 55.26x84.69x2.4
|
| 4 | Active Area(mm) | 28.032X35.04 |
| 5 | Display Mode | Normally White, Transmissive LCD |
| 6 | Display colors | 262K |
| 7 | Resolution | 128*160
|
| 8 | Viewing Angle (Tpy.)θT/θB/θL/θR | 45/20/45/45
|
| 9 | Aspect Ratio | 1:1 |
| 10 | brightness(nits) | 90
|
| 11 | Contrast Ratio | 300
|
| 12 | Power Consumption (W) | TBD
|
| 13 | Interface | 8Bits Parallel interface
|
| 14 | connecting type | 20 pin FPC |
| 15 | Operation Temperature( ℃) | -20~70 |
| 16 | Storage Temperature (℃) | -30~80 |
| 17 | Driver IC | ST7735S
|
| 18 | HTHH.(op) | 60℃,90% RH |
| 19 | Response Time(ms) | 30 |
| 20 | Dot Pitch(WxH,mm) | 0.073x0.219
|
product photos
The product external packing is carton packing.
1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q: 2. What is the lead time for sample?
A: Current sample needs 1-3 days, customized sample needs 7-10 days.
Q: 3. Do you have any MOQ limit?
A: Our MOQ is 100.
Q: 4.How long is the warranty?
A:12 Months.
Q: 5. what express do you often use to send the samples?
A: We usually ship samples by DHL, UPS, FedEx or SF. It usually takes 3-5 days to
arrive.
Q: 6. What's your acceptable payment term?
A: Our usually payment term is T/T. Others can be negotiated.
Q: 7. How to proceed the order if I have logo to print?
A: Firstly, we will prepare artwork for visual confirmation, and next we will produce a
real sample for your second confirmation.if sample is ok, finally we will go to mass production.
For more detailed information about our TFT LCD module, please feel free to contact us, we will offer you the specification.
