Product Details
| Place of Origin | Guangdong, China | Brand Name | ANSTAR | |
| Model Number | AS070TF05-40ND-27B | Type | TFT |
Product Description
7.0 tft lcd 800*400 WVGA with anti-glare surface treatment
Specification parameter
| 1 | Item | AS070TF05-40ND-27B
|
| 2 | Screen Size | 7"
|
| 3 | Module Size(WxHxD,mm) | 165 x 104 x 6.2
|
| 4 | Active Area(mm) | 154.08 X85.92 |
| 5 | Display Mode | Normally White, Transmissive |
| 6 | Display colors | 16.7M |
| 7 | Resolution | 800 × 3 (RGB) × 480
|
| 8 | Viewing Angle (Tpy.)θT/θB/θL/θR | 50/70/70/70
|
| 9 | Aspect Ratio | 16:9 |
| 10 | brightness(nits) | 350
|
| 11 | Contrast Ratio | 500
|
| 12 | Power Consumption (W) | 1.728
|
| 13 | Interface | LVDS
|
| 14 | connecting type | 20pin FPC |
| 15 | Operation Temperature( ℃) | -20~70 |
| 16 | Storage Temperature (℃) | -30~80 |
| 17 | Driver IC | / |
| 18 | HTHH.(op) | 40℃,90% RH |
| 19 | Response Time(ms) | 25 |
| 20 | Dot Pitch(WxH,mm) | 0.0642X0.1790
|

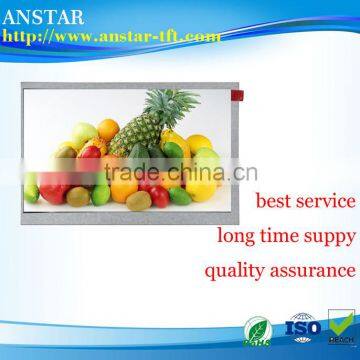

product photos
The product external packing is carton packing.
1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q: 2. What is the lead time for sample?
A: Current sample needs 1-3 days, customized sample needs 7-10 days.
Q: 3. Do you have any MOQ limit?
A: Our MOQ is 100.
Q: 4.How long is the warranty?
A:12 Months.
Q: 5. what express do you often use to send the samples?
A: We usually ship samples by DHL, UPS, FedEx or SF. It usually takes 3-5 days to
arrive.
Q: 6. What's your acceptable payment term?
A: Our usually payment term is T/T. Others can be negotiated.
Q: 7. How to proceed the order if I have logo to print?
A: Firstly, we will prepare artwork for visual confirmation, and next we will produce a
real sample for your second confirmation.if sample is ok, finally we will go to mass production.
For more detailed information about our TFT LCD module, please feel free to contact us, we will offer you the specification.
