2016 hot sale 4.3 inch 480*272 TFT panel LCD
- HONGKONG
- T/T L/C D/P D/A
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | ANSYAT | |
| Model Number | AS043NL01-40NB-07B | Type | TFT |
Product Description
2016 hot sale 4.3 inch 480*272 TFT panel LCD
Specification parameter
Item | AS043NL01-40NB-07B |
Screen Size | 4.3" |
Module Size(WxHxD,mm) | 105.5X67.2X4.24 |
Active Area(mm) | 95.04X53.856 |
Display Mode | Normally White, Transmissive |
Resolution | 480 × 3 (RGB) × 272 |
Viewing Angle (Tpy.)θT/θB/θL/θR | 50/70/70/70 |
Aspect Ratio | 4:3 |
Luminance(nits) | 240 |
Contrast Ratio | 500 |
Response Time(ms) | 25 |
Dot Pitch(WxH,mm) | 0.066x0.198 |
Power Consumption (W) | TBD |
Interface | TTL(40pin FPC) |
Operation Temperature( ℃) | -20~70 |
Storage Temperature (℃) | -30~80 |
HTHH.(op) | 60℃,90% RH |
connecting type | 40pinFPC |
Driver IC | ILI6480B |
Display colors | 16.7M |

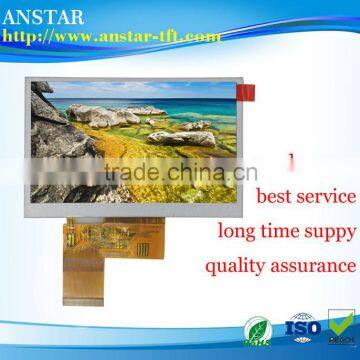

product photos
1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q: 2. What is the lead time for sample?
A: Current sample needs 1-3 days, customized sample needs 7-10 days.
Q: 3. Do you have any MOQ limit?
A: Our MOQ is 100.
Q: 4.How long is the warranty?
A:12 Months.
Q: 5. what express do you often use to send the samples?
A: We usually ship samples by DHL, UPS, FedEx or SF. It usually takes 3-5 days to
arrive.
Q: 6. What's your acceptable payment term?
A: Our usually payment term is T/T. Others can be negotiated.
Q: 7. How to proceed the order if I have logo to print?
A: Firstly, we will prepare artwork for visual confirmation, and next we will produce a
real sample for your second confirmation.if sample is ok, finally we will go to mass production.
For more detailed information about our TFT LCD module, please feel free to contact us, we will offer you the specification.
