Product Details
Place of Origin | Guangdong, China | Brand Name | ANSTAR | |
Model Number | AS050TN33-A-18A | Type | Other, TFT, TFT LCD Module ,OEM |
Product Description
Welcom to OEM

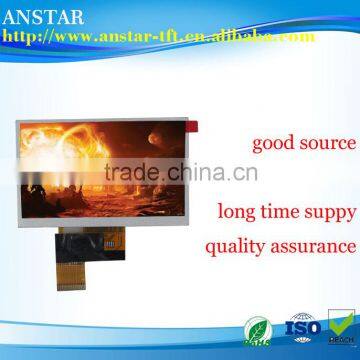

0.077 * 0.231 dots 5 inch 1050nits high brightness tft lcm
Item | AS050TN33-A-18A |
Screen Size | 5.0'' |
Module Size(WxHxD,mm) | 120.7 × 75.8 × 2.80 |
Active Area(mm) | 110.88 × 62.83 |
Display Mode | 110.88 × 62.83 |
Display colors | 16.7M |
Resolution | 480 × 3(RGB) × 272 |
Viewing Angle (Tpy.)θT/θB/θL/θR | 70/50/70/70 |
Aspect Ratio | 16:9 |
Luminance(nits) | 1050 |
Contrast Ratio | 500 |
Power Consumption (W) | 1014 |
Interface | 24bit*RGB |
connecting type | 40pin FPC |
Operation Temperature( ℃) | -20-70 |
Storage Temperature (℃) | -30-80 |
Driver IC | ILI6480B |
HTHH.(op) | 60℃,90% RH |
Response Time(ms) | 25 |
Dot Pitch(WxH,mm) | 0.077 × 0.231 |
Anstar Electronics Co,Ltd, established in June 2007, is a high-tech enterprises dedicated to manufacturing, selling, researching and developing TFT panel modules.
Our company have a professional quality management team specializing in research, developing and manufacturing. We always persevere with the work in the TFT panel field and try to provide excellent products and best service for the customer. Our company passed the certification of IS09001-2008 quality management system certification, and we have high standard purified workshops, automated assembly production line, high precision testing instruments and professional reliable testing equipment for production, etc.
Our products are characterized by high quality, high reliability, wide application in automotive electronics, HMI, industrial, medical, and other equipment. At the same time, we focuses on the study of differentiated products and we have developed the high-brightness, wide viewing angle and other differentiated products. We can develop custom-made products according to customer’s requirement to adapt to the application of special occasions. We can be personalized to suit the application of special occasions, according to customer requirements. By optimizing the production process we also can achieve small batch, diversified production.
With strong product resources, years of precipitation, we can provide customers the best selection, while providing technical supporting and good after-sales service. Anstar Electronics Co,Ltd regards the integrity as corporate life, depending on staff as the core, depending on customers and business partner. We always aggregate core strength keep continuous improvement and sustainable management.
Q:1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q: 2. What is the lead time for sample?
A: Current sample needs 1-3 days, customized sample needs 7-10 days.
Q: 3. Do you have any MOQ limit?
A: Our MOQ is 100.
Q: 4.How long is the warranty?
A: The warranty is12 Months.
Q: 5. what express do you often use to send the samples?
A:About express we usually ship samples by DHL, UPS, FedEx or SF. It usually takes 3-5 days to arrive.
Q: 6. What's your acceptable payment term?
A: Our usually payment term is T/T. Others can be negotiated.
Q: 7. How to proceed the order if I have logo to print?
A: Firstly, we will prepare artwork for visual confirmation, and next we will produce a real sample for your second confirmation.if sample is ok, finally we will go to mass production.
For more detailed information about our TFT LCD module, please feel free to contact us, we will offer you the specificati
